Luxion

Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame

SKU: LX-1ZT-SC001MG-W

AED 95

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion Zigbee smart wall socket with energy monitoring, earthing, child protection and a tempered glass frame, in White, Gold, Grey or Black.

Product details

Luxion single smart socket with Zigbee protocol, standard earthing and child protection. It offers smart functions such as timer, scheduling, group control (family sharing) and scene creation.

Compatible only with the Luxion Zigbee hub.

Highlights

Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new LUXION smart sockets: a socket with a glass frame, ZigBee protocol and energy consumption monitoring.

  • Glass frame
  • ZigBee protocol
  • Energy consumption monitoring
Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame – Remote Control with the Smart Life App
02

Remote Control with the Smart Life App

Switch connected devices on or off from anywhere using the Smart Life app. Change the atmosphere of your home at the touch of a button and control your devices just the way you like.

Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame – Voice Control
03

Voice Control

Switch your devices on more easily with the Amazon Alexa and Google Assistant voice assistants, for example: "Alexa, turn on the lamp."

  • Amazon Alexa
  • Google Home
  • IFTTT
Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame – How the ZigBee Socket Works
04

How the ZigBee Socket Works

The socket communicates via ZigBee with a ZigBee hub, which connects to your Wi-Fi router for app and voice control.

  • Important: Luxion ZigBee sockets work only with the Luxion ZigBee hub

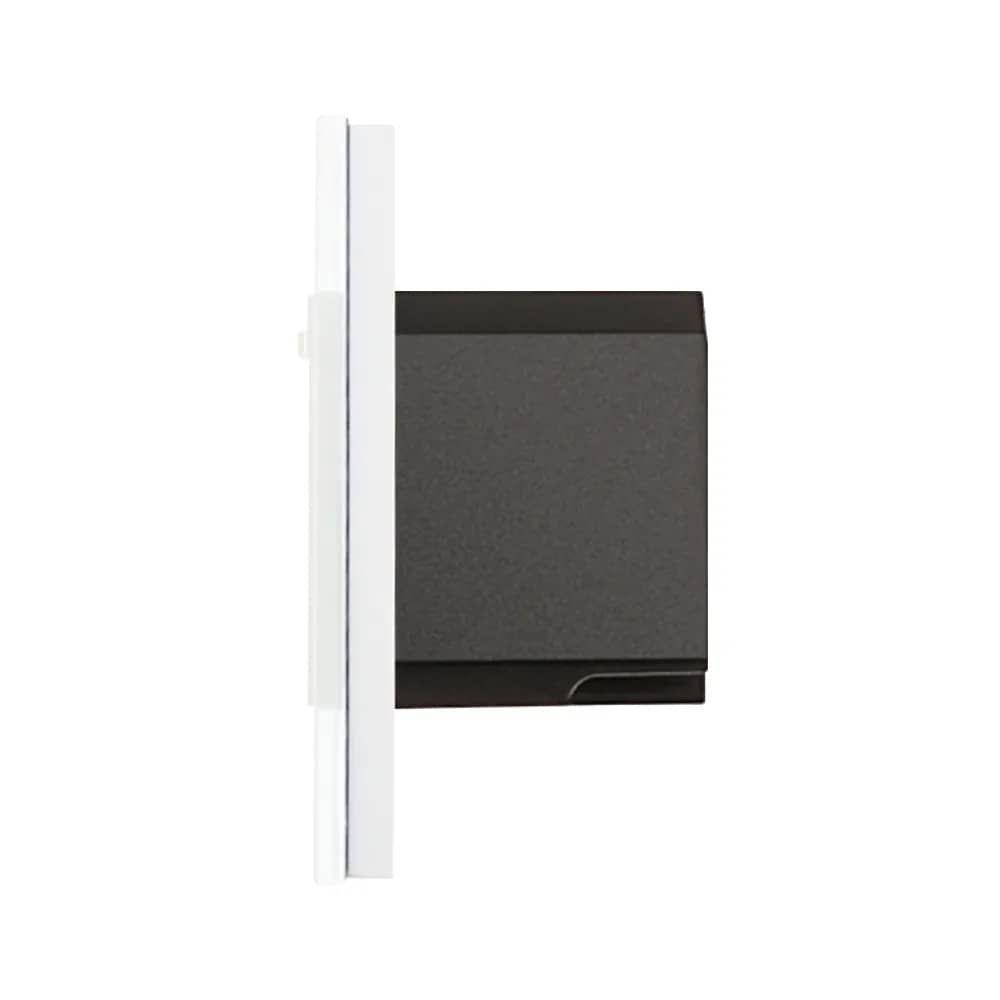

Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame – Structure
05

Structure

The socket consists of three parts and is fixed with a screw mounting system.

  • Glass frame
  • Socket module
  • Metal frame
  • Screw mounting system: 60 mm

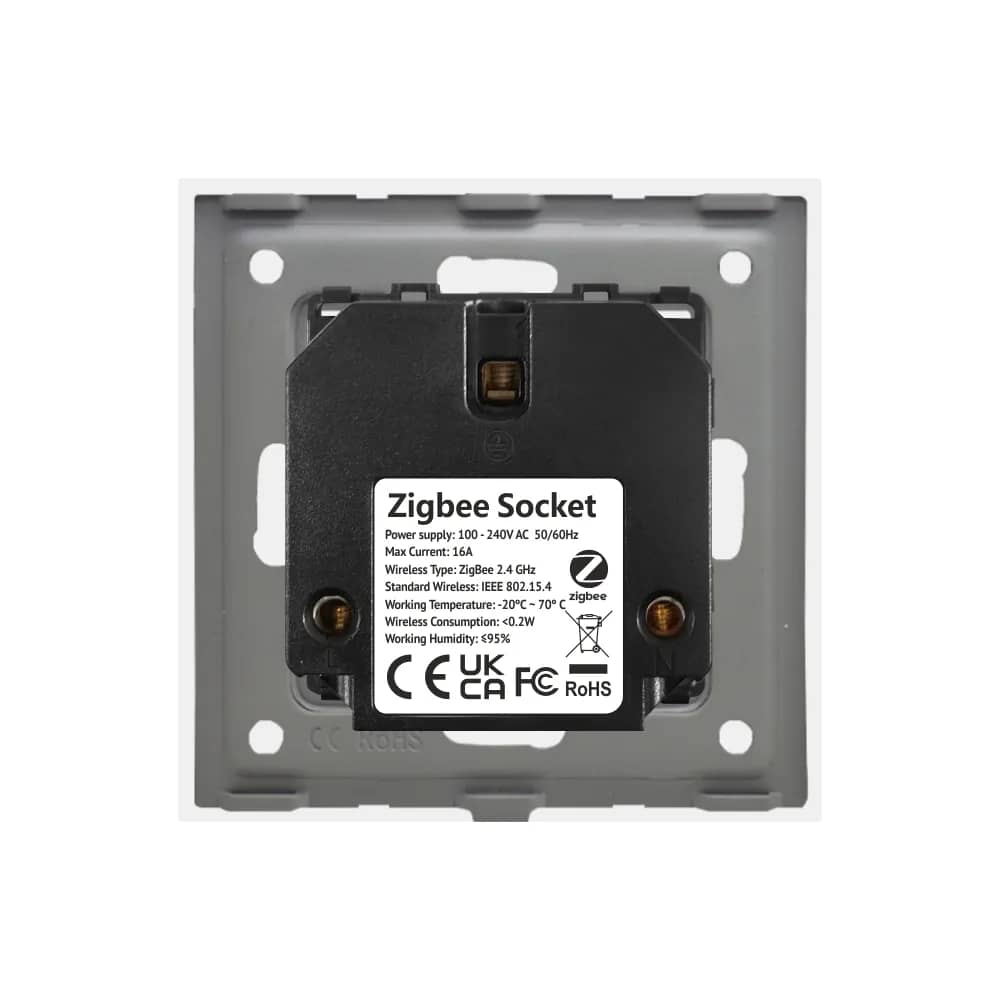

Luxion Zigbee Smart Socket with Energy Monitoring and Glass Frame – Technical Data
06

Technical Data

  • Power supply: 100 - 240V AC 50/60Hz
  • Max current: 16A
  • Wireless type: ZigBee 2.4 GHz
  • Wireless standard: IEEE 802.15.4
  • Working temperature: -20°C ~ 70°C
  • Wireless consumption: <0.2W
  • Working humidity: ≤95%
  • Dimensions: 86 mm x 86 mm
  • Front thickness: 9 mm
  • Rear module depth: 35 mm
  • Rear module height: 47 mm
  • Markings: CE, UKCA, FC, RoHS
07

Wiring Diagram

Connect the following wires to the socket terminals.

  • Live (L)
  • Neutral (N)
  • Earth
08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
