Luxion

Luxion Double Socket with Glass Frame for Single Wall Box (LX-MP210GF)

SKU: LX-MP210GF-GY

AED 36

In stock

Colour: Grey
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact Luxion double wall socket with an elegant glass frame, child protection and a durable, fade-resistant finish, in Grey or Black.

Product details

Luxion sockets stand out for their compact, elegant and minimalist design. They are versatile, feature child protection, and their latest-generation technology helps save energy. The structure is durable and the sockets do not discolour over time. A practical product made from quality materials and built to last, bringing usefulness and comfort to your home.

Highlights

Luxion Double Socket with Glass Frame for Single Wall Box (LX-MP210GF) – A Compact, Elegant and Minimalist Design
01

A Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. The Luxion double socket comes with a glass frame and fits a single wall box.

  • Double socket with glass frame
  • Designed for a single wall box
  • Shown in white, black, gold and grey
Luxion Double Socket with Glass Frame for Single Wall Box (LX-MP210GF) – Structure
02

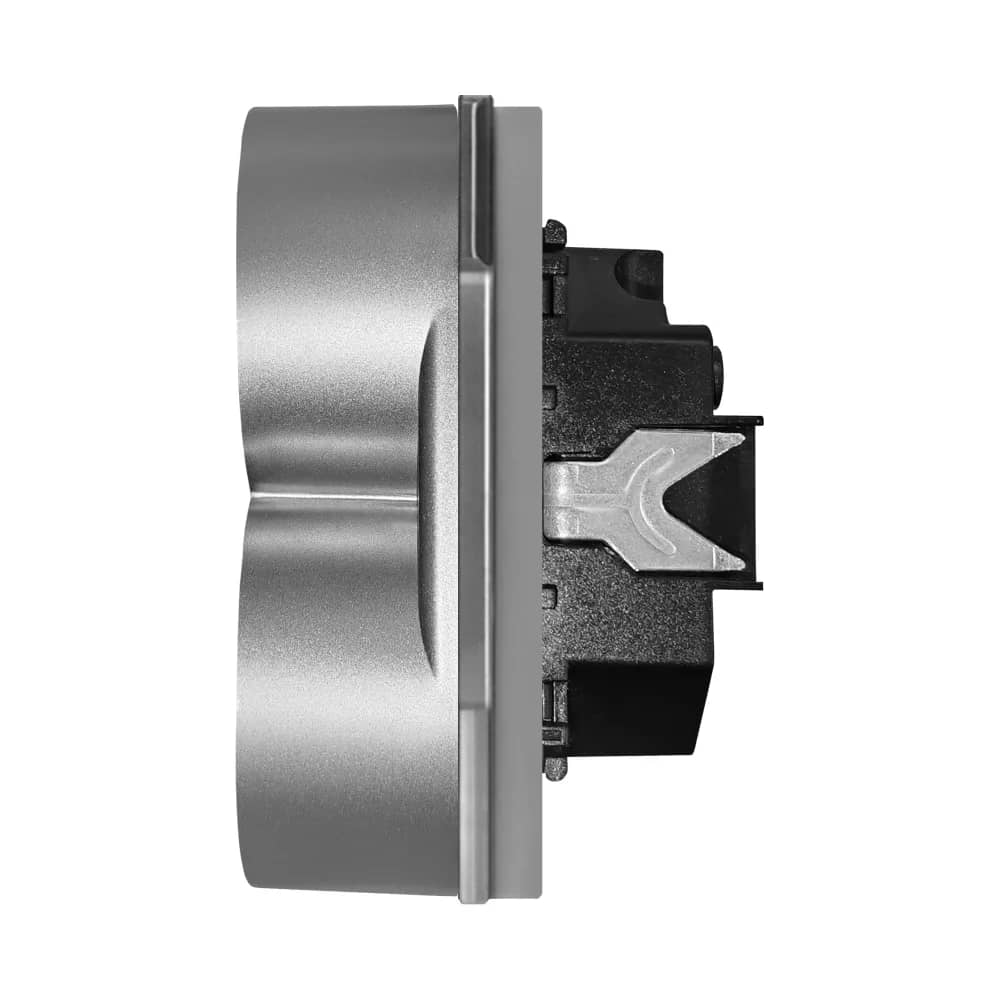

Structure

The socket is made up of a glass frame, a socket module and a metal frame.

  • Glass frame
  • Socket module
  • Metal frame
  • Screw fixing system with 60 mm spacing
Luxion Double Socket with Glass Frame for Single Wall Box (LX-MP210GF) – Wiring Diagram
03

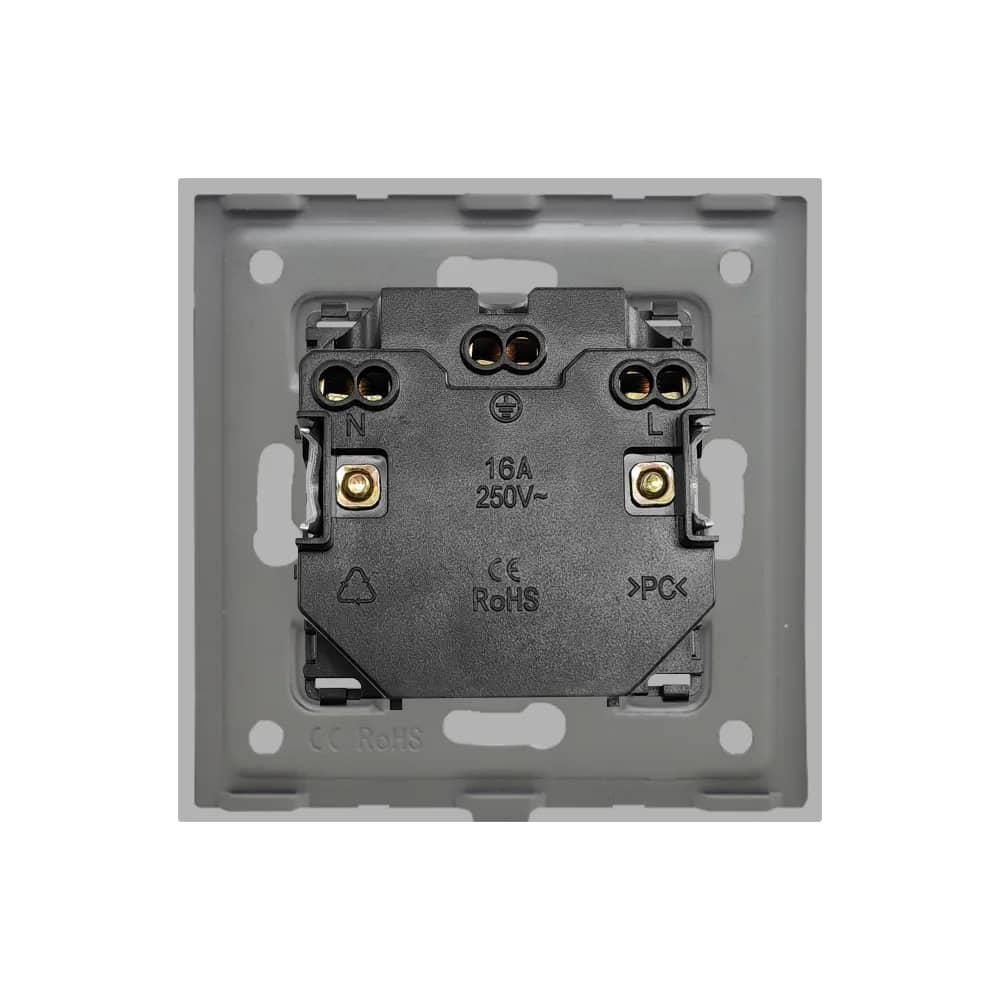

Wiring Diagram

Connect the wires to the terminals as shown in the diagram.

  • Neutral (N)
  • Earth line
  • Live (L)
Luxion Double Socket with Glass Frame for Single Wall Box (LX-MP210GF) – Technical Data
04

Technical Data

  • Rating: 16A 250V~
  • Frame dimensions: 86 mm x 86 mm
  • Depth profile: 21 mm / 9 mm / 20 mm
  • Module height: 50 mm
  • Fixing screw spacing: 60 mm
  • Markings: CE, RoHS
Luxion Double Socket with Glass Frame for Single Wall Box (LX-MP210GF) – Installation Steps
05

Installation Steps

  • 1. Detach the module.
  • 2. Fix the module to the metal frame and connect the wires according to the diagram.
  • 3. Secure the module in the wall box.
  • 4. Fit the glass frame, then clip the module onto the screws.
