Luxion

Luxion Double Socket with Glass Frame

SKU: LX-2MP010G-W

AED 54

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion double wall socket with a glass frame and child protection, available in White, Gold, Grey and Black.

Product details

The Luxion range of sockets stands out for its compact, elegant and minimalist design. They are versatile and feature child protection. The structure is durable and the products do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Double Socket with Glass Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. This double socket comes with a glass frame for a clean, modern look.

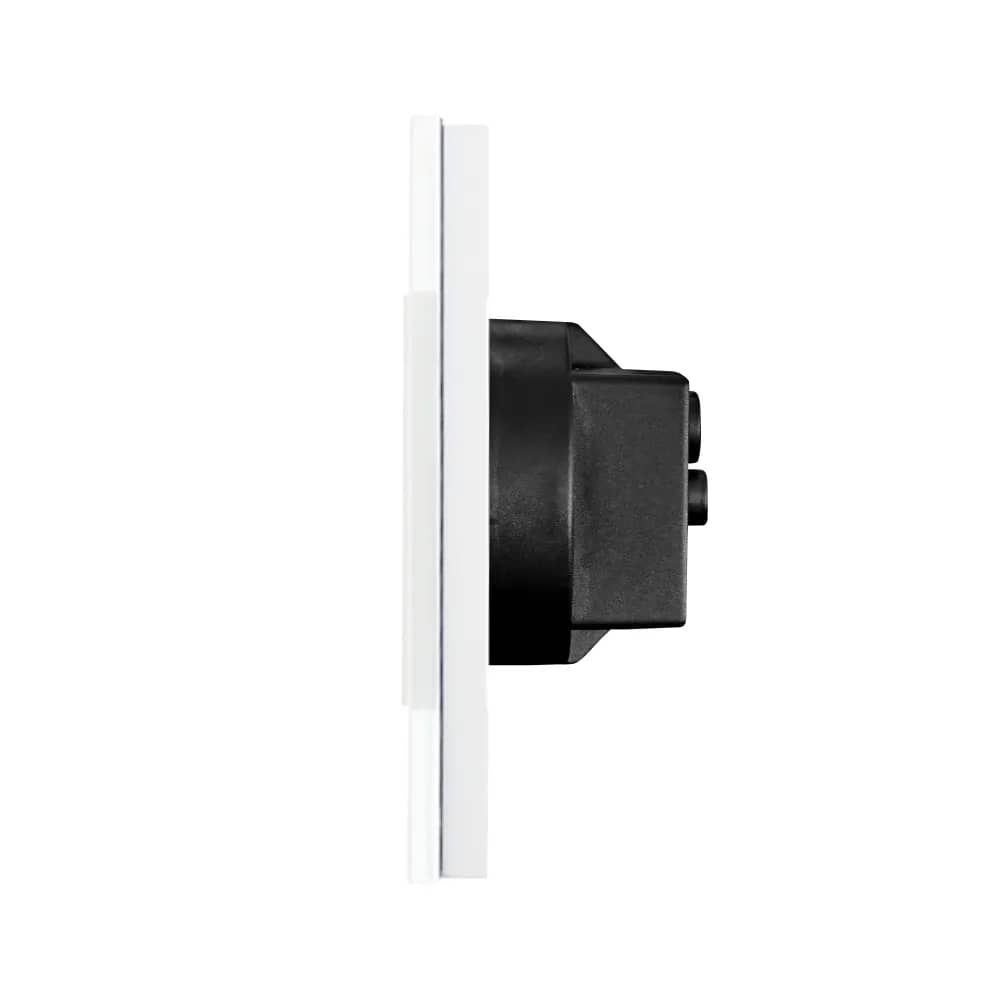

Luxion Double Socket with Glass Frame – Structure
02

Structure

The socket is made up of three main components.

  • Glass frame
  • Socket modules
  • Metal frame
  • Screw fixing system with 60 mm spacing
Luxion Double Socket with Glass Frame – Dimensions
03

Dimensions

  • Width: 157 mm
  • Height: 86 mm
  • Frame depth: 9 mm
  • Module depth: 30 mm
  • Module height: 47 mm
  • Fixing distance: 60 mm
Luxion Double Socket with Glass Frame – Wiring Diagram
04

Wiring Diagram

Each socket module is connected to the phase, neutral and earth lines.

  • Phase (L)
  • Neutral (N)
  • Earth line
Luxion Double Socket with Glass Frame – Installation Steps
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
