Luxion

Luxion Triple Wall Socket with Glass Frame

SKU: LX-3MP010G-W

AED 81

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion triple wall socket with a glass frame: compact, minimalist design, child protection and a durable, fade-resistant build.

Product details

The Luxion socket range stands out for its compact, elegant and minimalist design. The sockets are versatile and feature child protection. The structure is durable and the products do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Triple Wall Socket with Glass Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

The Luxion triple socket with glass frame combines a compact, elegant and minimalist design. Enjoy the versatility of the new Luxion sockets.

  • Three sockets in a single glass frame
  • Shown in white, black, gold and grey finishes
Luxion Triple Wall Socket with Glass Frame – Structure
02

Structure

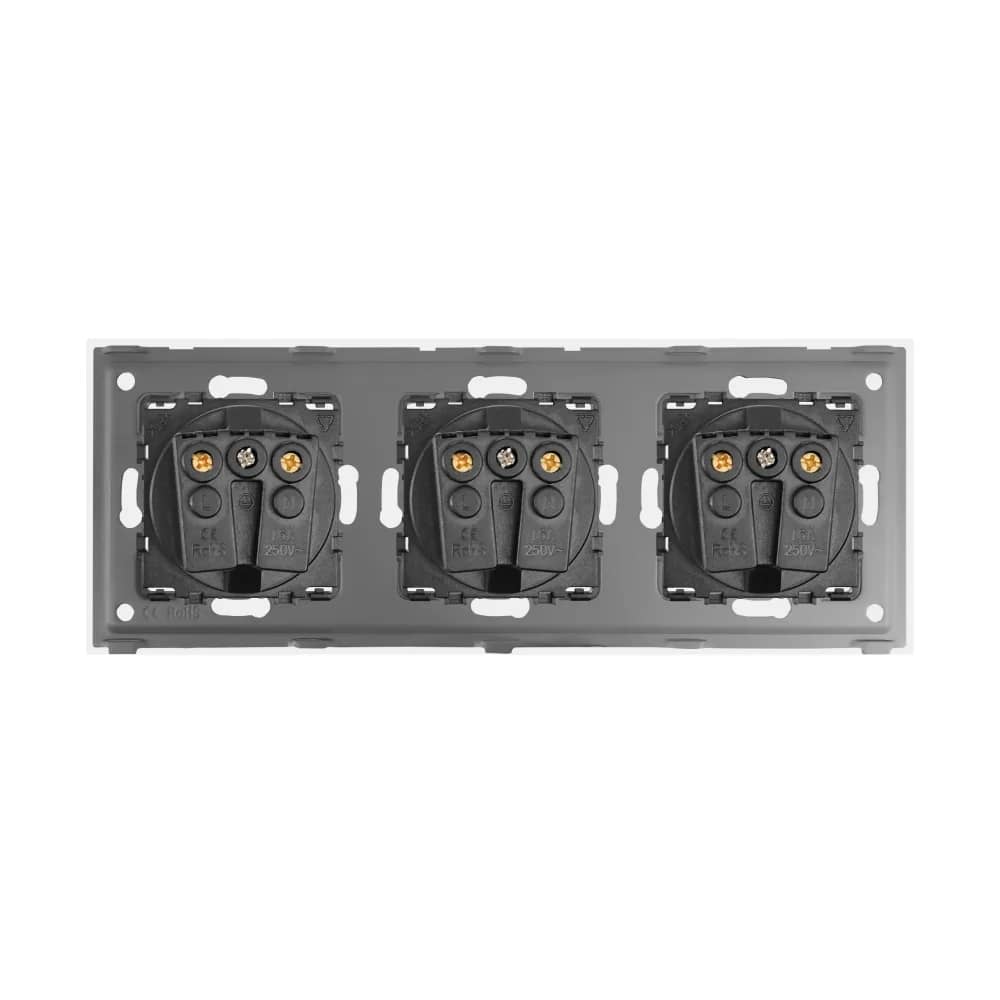

The socket is made up of three main components.

  • Glass frame
  • Socket modules
  • Metal frame
  • Screw fixing system with 60 mm spacing
Luxion Triple Wall Socket with Glass Frame – Dimensions
03

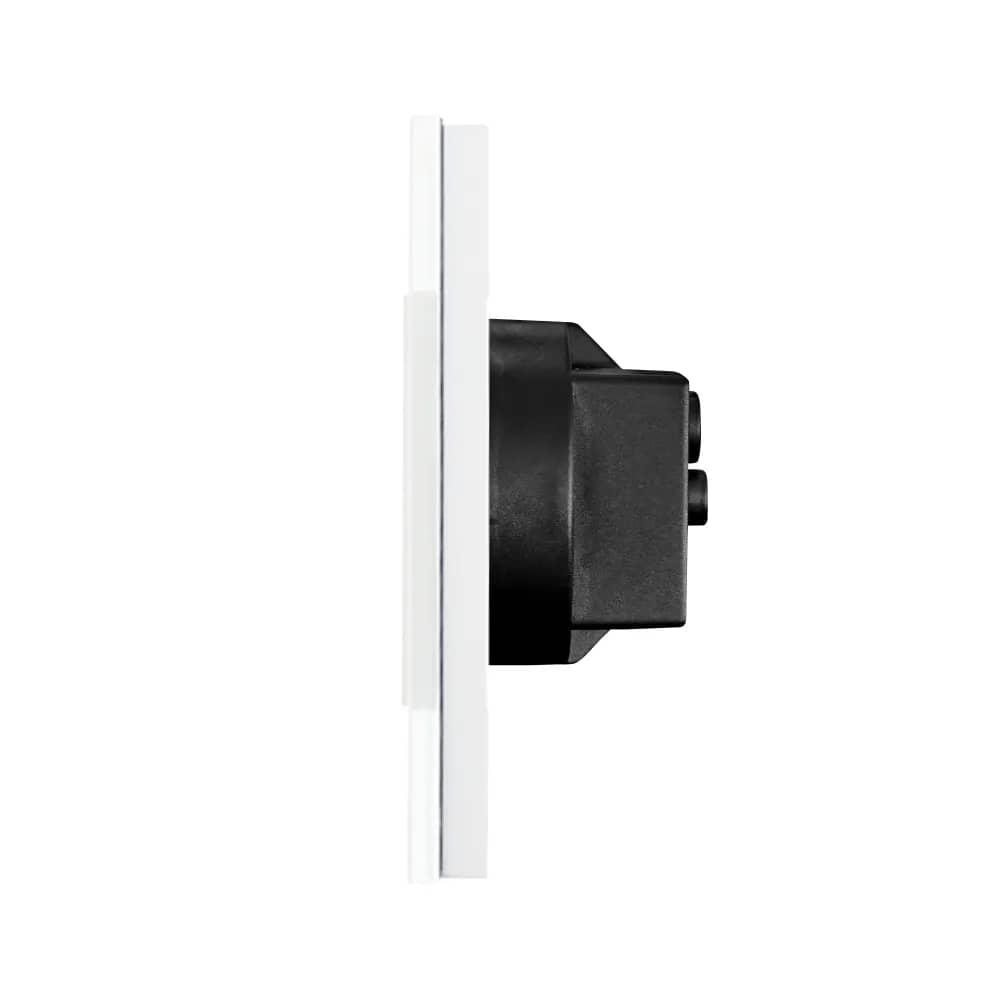

Dimensions

  • Width: 228 mm
  • Height: 86 mm
  • Frame thickness: 9 mm
  • Module depth: 30 mm
  • Module height: 47 mm
  • Screw fixing spacing: 60 mm
Luxion Triple Wall Socket with Glass Frame – Wiring Diagram
04

Wiring Diagram

Each of the three socket modules is connected to the phase, neutral and earth lines.

  • Phase (L)
  • Neutral (N)
  • Earth line
Luxion Triple Wall Socket with Glass Frame – Installation Steps
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel (click into place).
