Compact, Elegant and Minimalist Design
Luxion socket with glass frame. Enjoy the versatility of the new Luxion sockets!
Luxion

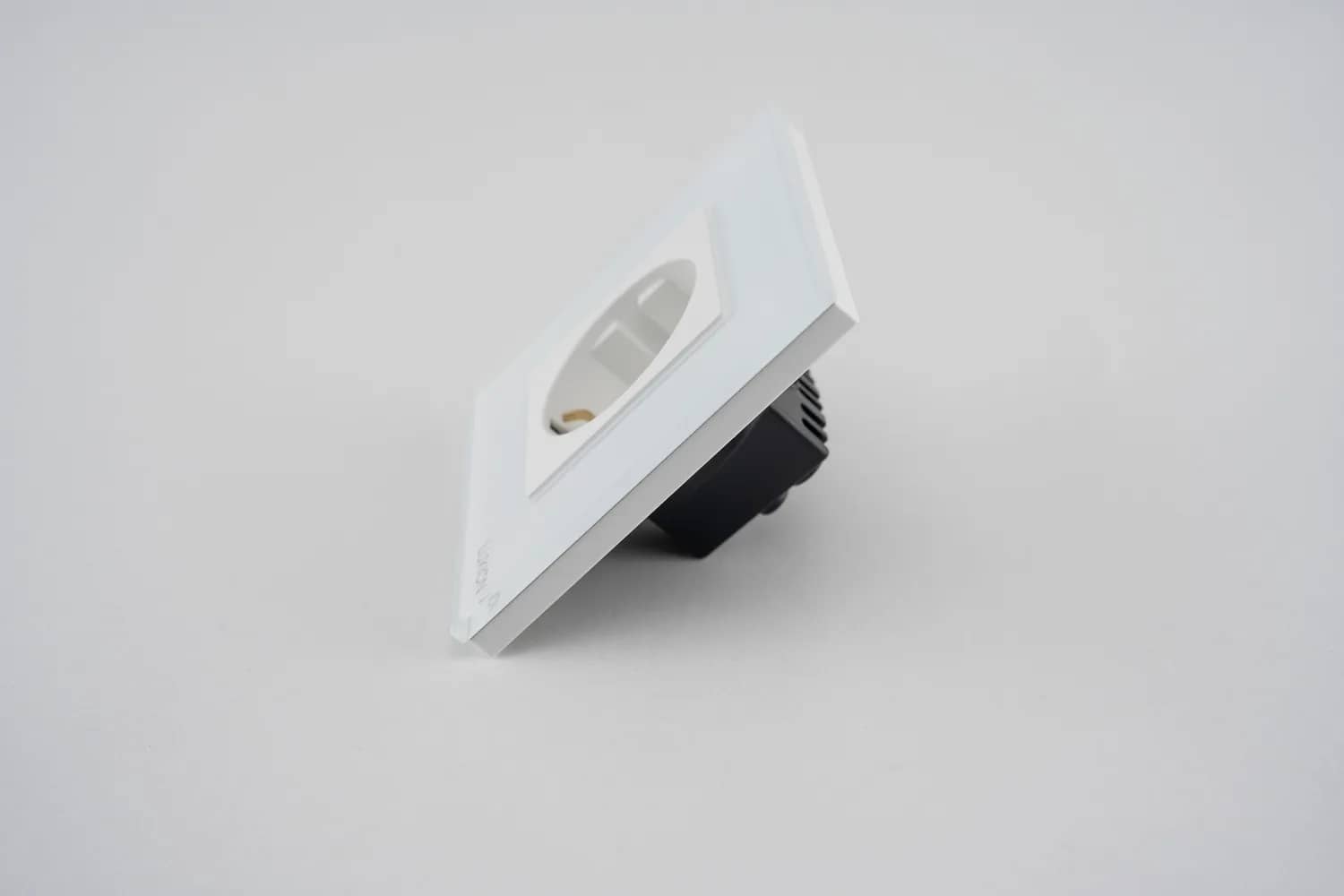

Luxion Single Wall Socket with Glass Frame
SKU: LX-1MP010G-W
AED 27
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, elegant Luxion single wall socket with a glass frame, child protection and a durable, fade-resistant build. Available in four colours.
Product details
Luxion sockets stand out for their compact, elegant and minimalist design. They are versatile, feature child protection, and their latest-generation technology helps save energy. The structure is durable and the sockets do not discolour over time. It is a practical product, made from quality materials and built to last, bringing usefulness and comfort to your home.
Highlights
02

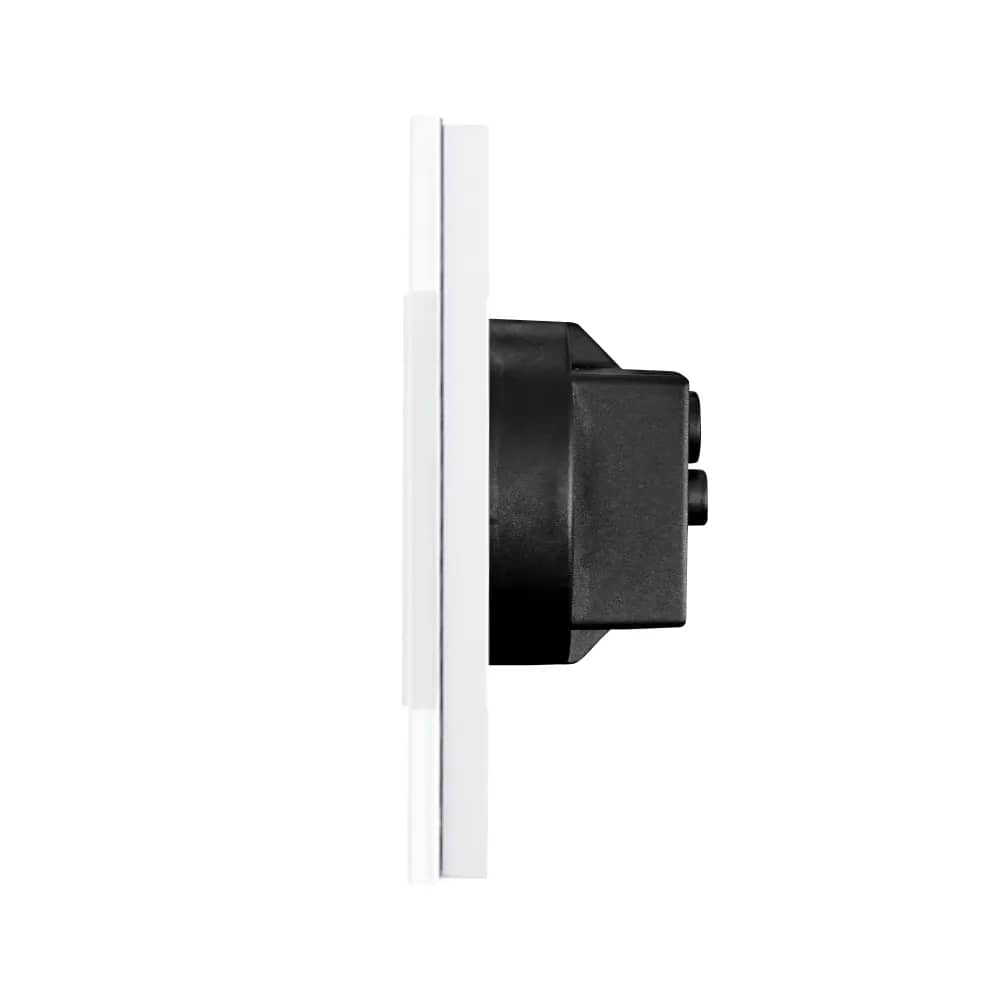

Structure
The socket is made up of three parts that fit together for a clean, flush finish.
- Glass frame
- Socket module
- Metal frame
- Screw fixing system with 60 mm spacing
03
Dimensions
- Front panel: 86 mm x 86 mm
- Frame thickness: 9 mm
- Module depth: 30 mm
- Module height: 47 mm
04
Wiring Diagram
Connect the cables to the terminals on the back of the socket module as shown in the wiring diagram.
- Live (L)
- Neutral (N)
- Earth line
- Rating marked on module: 16A 250V~
05

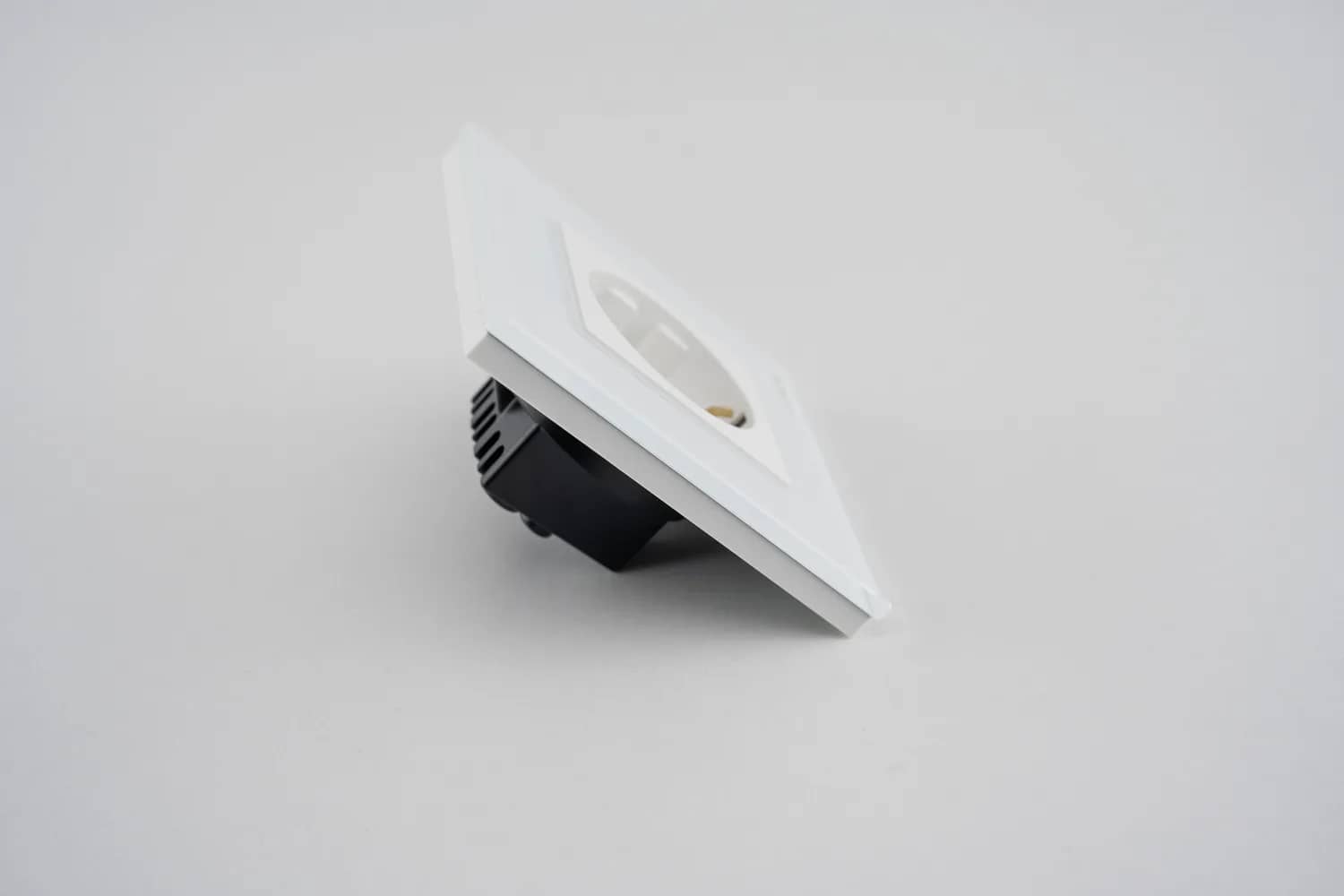

Installation Steps
- 1. Open the package.
- 2. Connect the cables and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
