Luxion

Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang

SKU: LX-ZT-201A-W

AED 130

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Elegant 2 gang Luxion Zigbee touch light switch with glass panel and aluminium frame, controllable via the Luxion hub, Alexa or Google Home.

Product details

Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Luxion Zigbee light switches work only together with the Luxion Zigbee hub. Through the hub, you can also control them with the Amazon Alexa or Google Home voice assistant.

Highlights

Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. This LUXION double touch switch combines an aluminium frame with the ZigBee protocol.

  • Double (2 gang) touch switch
  • Aluminium frame
  • ZigBee protocol
Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang – Key Features
02

Key Features

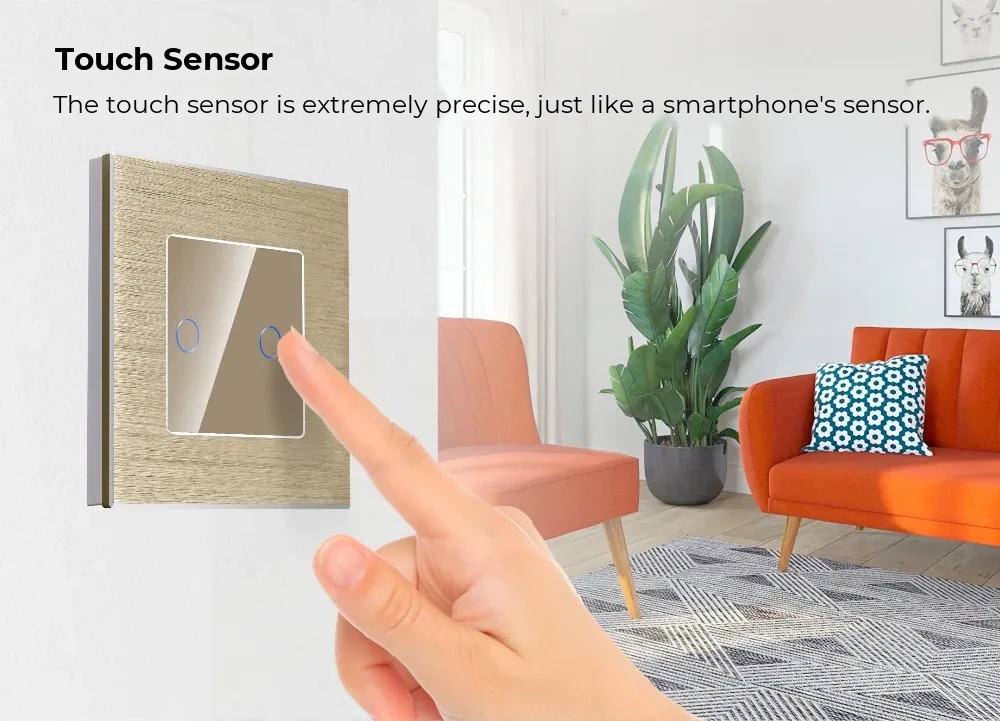

  • Touch sensor: extremely precise, identical to a smartphone sensor
  • Moisture resistant: can be used in humid environments
  • Does not discolour: the elegant design stays intact
Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang – App Control with Smart Life
03

App Control with Smart Life

Change the atmosphere of your home at the touch of a button. Open the Smart Life app to customise the lighting in your home just the way you like.

  • Control via app
  • Works through a ZigBee hub and Wi-Fi router
  • Important: Luxion ZigBee switches work only with the Luxion ZigBee hub
Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang – Compatible with Amazon Alexa
04

Compatible with Amazon Alexa

With a simple voice command you can control the ZigBee switch to turn your lights on or off.

  • Voice control
  • Example: "Alexa, turn on the light!"

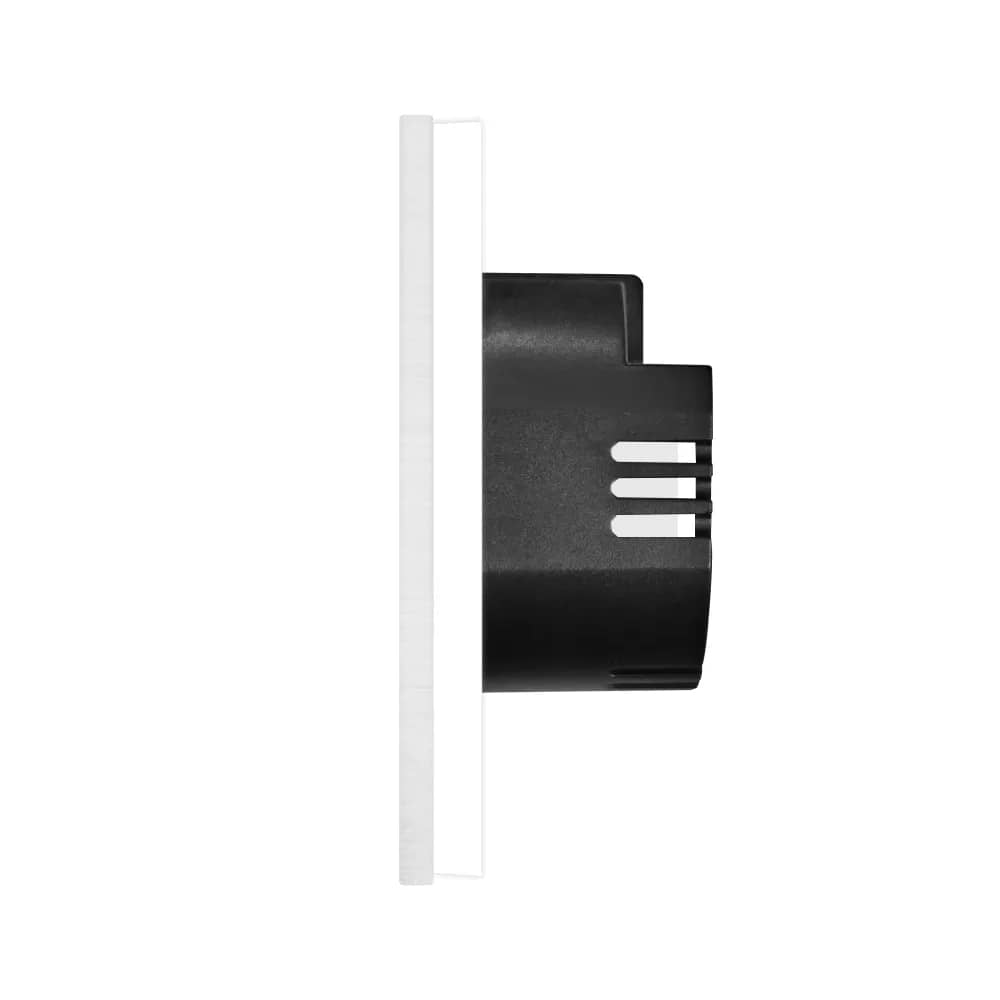

Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang – Structure
05

Structure

  • Elegant glass panel with aluminium frame
  • Switch module
  • Metal frame
  • Screw fixing system (60 mm spacing)
Luxion Zigbee Glass Touch Light Switch with Aluminium Frame – 2 Gang – Dimensions
06

Dimensions

  • Front panel: 86 mm x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
  • Screw fixing spacing: 60 mm
07

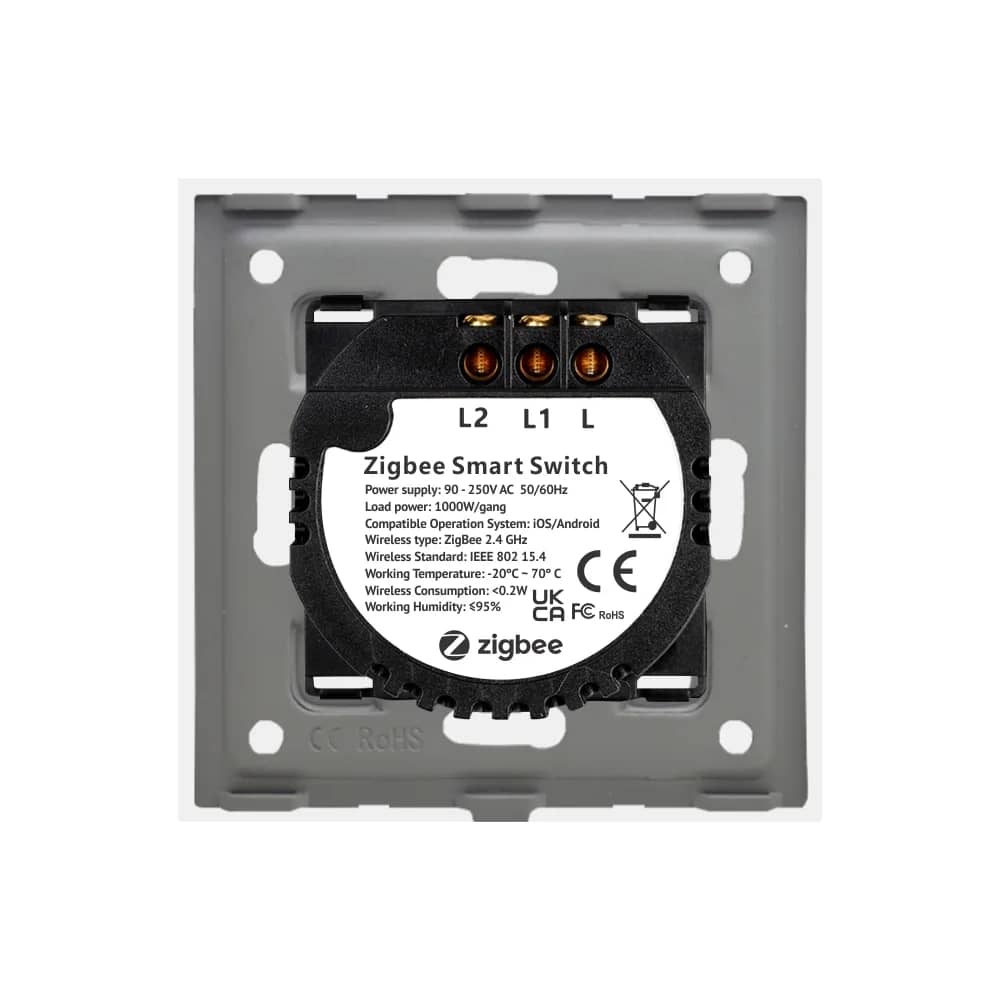

Technical Data

  • Power supply: 90 - 250V AC 50/60Hz
  • Load power: 1000W/gang
  • Compatible operating system: iOS/Android
  • Wireless type: ZigBee 2.4 GHz
  • Wireless standard: IEEE 802 15.4
  • Working temperature: -20°C ~ 70°C
  • Wireless consumption: <0.2W
  • Working humidity: ≤95%
  • Markings: CE, UKCA, FC, RoHS
08

Wiring Diagram

Connect the live wire (L) to terminal L; connect each lamp between its output terminal and neutral (N).

  • L: live input
  • L1: output to lamp 1
  • L2: output to lamp 2
  • N: neutral, connected to the lamps
09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
