Compact, Elegant and Minimalist Design
Luxion single mechanical 2-way (staircase) switch with a glass frame. Enjoy the versatility of the new mechanical switches.
Luxion
Luxion Mechanical 2-Way (Staircase) Light Switch with Glass Frame – 1 Gang
SKU: LX-MP002GF-W
AED 24
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Compact, elegant Luxion 1 gang 2-way mechanical light switch with a glass frame, available in White, Black, Grey and Gold.
Product details
Luxion mechanical light switches stand out for their compact, elegant and minimalist design. They are practical, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Ideal For
- Office
- Bedroom
- Kitchen
- Living room
03
Does Not Discolour
The elegant design stays intact.
04
Wiring Diagrams
Connect Neutral (N) and Live (L) as shown in the wiring diagrams.
- Diagram 1: two 2-way (staircase) switches controlling one light
- Diagram 2: 2-way switch + intermediate (cross) switch + 2-way switch
- Diagram 3: 2-way switch + two intermediate (cross) switches + 2-way switch
05

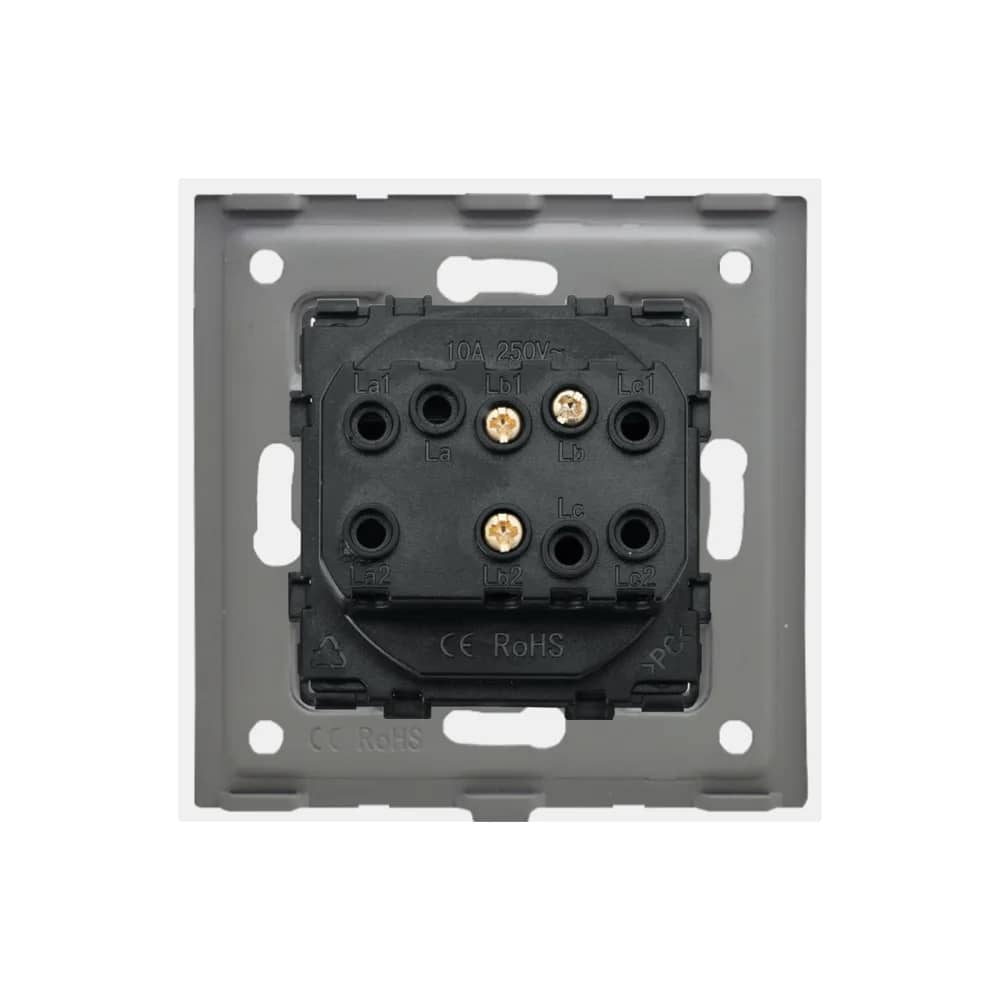

Structure
The switch consists of three parts.
- Glass frame
- Switch module
- Metal frame
- Screw fixing system: 60 mm
06

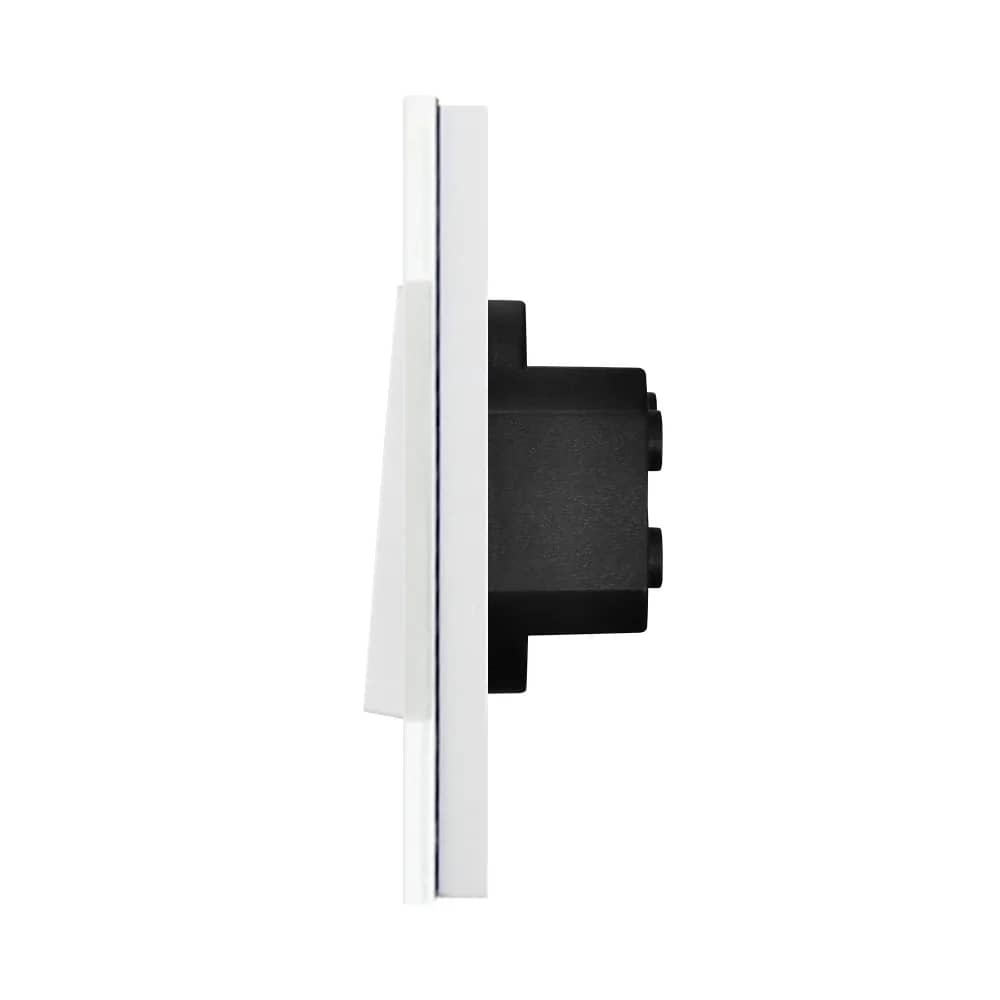

Dimensions
- Front panel: 86 mm x 86 mm
- Depth: 9 mm / 20 mm
- Module height: 49 mm
- Glass frame thickness: 5 mm
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click).
