01
Touch Sensor
The touch sensor is extremely precise, identical to the sensor in a smartphone.
Luxion
Luxion Glass Touch Light Switch – 1 Gang 2-Way/Intermediate (Staircase), Series A
SKU: LX-MT-A102G-W
AED 81
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Series A 1 gang 2-way/intermediate glass touch switch with smartphone-precise sensor, available in White, Gold, Grey and Black.
Product details
The Luxion range of light switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
PLEASE NOTE! Not every LED bulb may respond normally after the switches are installed (flickering, not turning on/off, etc.). In these cases, SWITCH OFF the power supply and install the adaptor supplied in the product box across the live and neutral wires of the light fitting.
No pairing required
Highlights
02

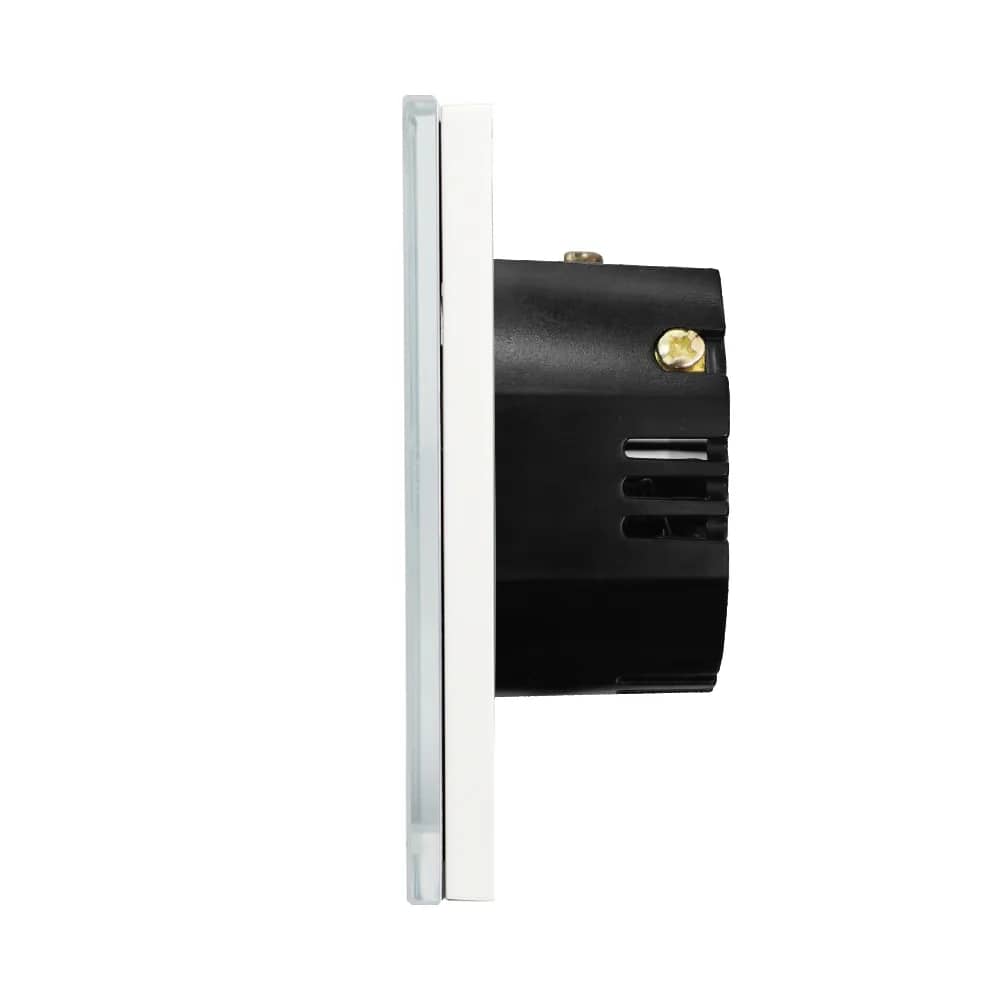

Moisture Resistant
Can be used in humid environments.

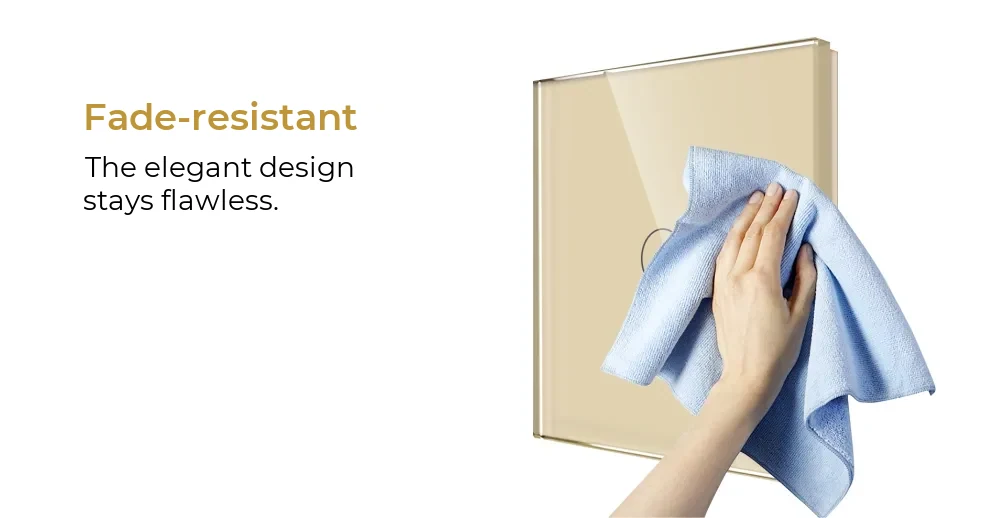

03
Does Not Discolour
The elegant design stays intact.
04
Installation Diagram
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click).
05
Wiring Diagrams
The wiring diagrams show staircase (2-way/intermediate) connections on a ~220V supply (N and L), with two or three switch modules linked via the Cap Scara terminal and lights connected to the L1 and L2 outputs.
- Terminals: Cap Scara, L4, L3, L2, L1, L
- Configurations shown: 2 switches with 1 light; 3 switches with 1 light; 3 switches with 3 lights
06
Technical Data
Warning: switch off the power supply during installation or removal.
- Type: Staircase switch
- Power supply: 90V ~ 250V
- Load: 600W / channel – resistive
- Operating temperature: -20°C ~ +70°C
- Frequency: 50/60Hz
- Standby consumption: 0.02W
- Humidity: 10% ~ 93%
- Markings: UKCA, CE, RoHS
