01
Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
Luxion
Luxion Glass Touch Light Switch – 2 Gang, 500W
SKU: LX-ST-201G-W
AED 55
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.

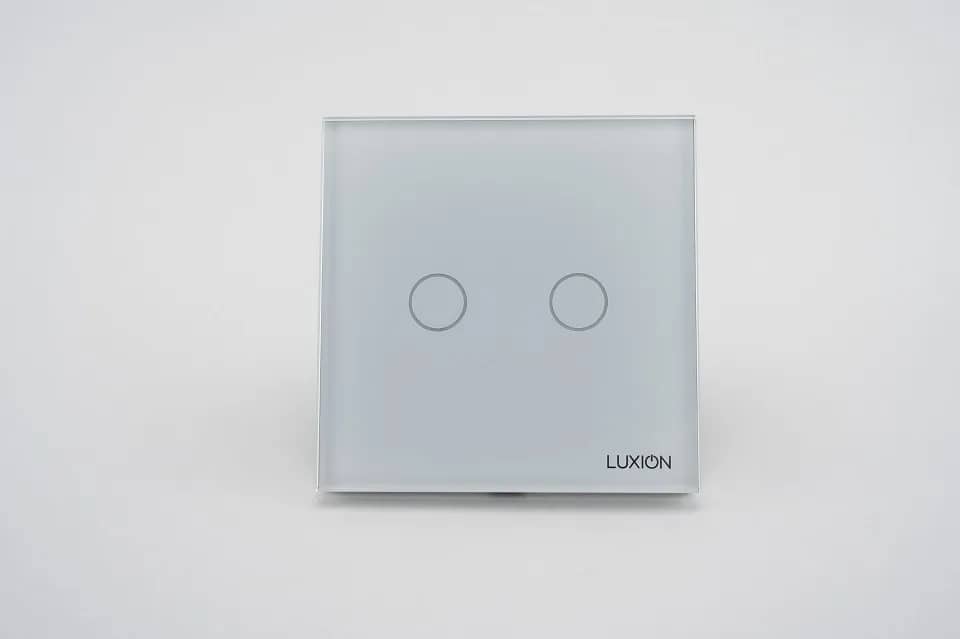

Luxion 2 gang tempered-look glass touch light switch, 500W, with a smartphone-precise touch sensor, in White, Black, Grey or Gold.
Product details
Luxion 2 gang glass touch light switch. The Luxion range of switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is extremely precise – just like that of a smartphone. The construction is durable and the switches do not discolour over time. A practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Fade-Resistant Design
The panel does not discolour, so its elegant design stays intact.
03
Structure
The switch is made up of three main parts.
- Elegant glass panel
- Switch module
- Metal frame
- Screw fixing system, 60 mm between fixing points
04
Dimensions
- Front panel: 86 x 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
05
Technical Data

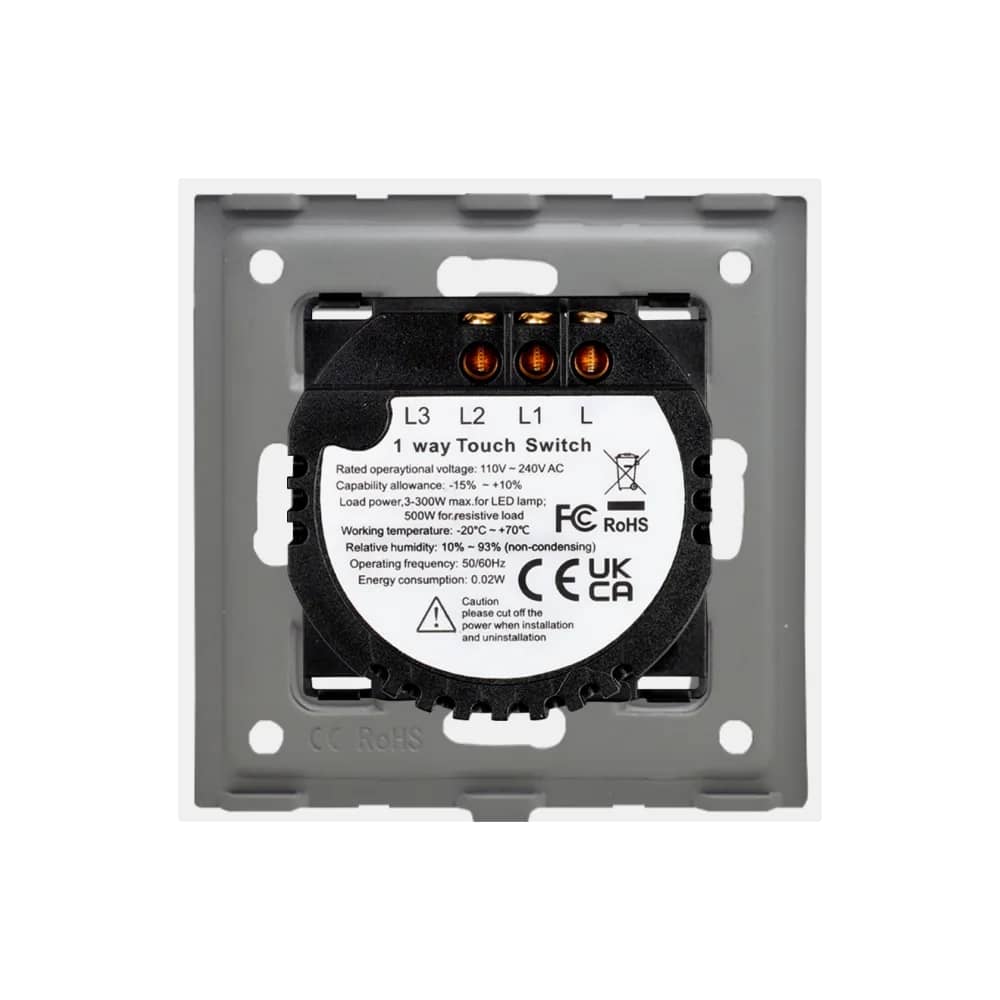

As printed on the switch module label.
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, RoHS, CE, UKCA
06
Wiring Diagram
Connect live (L) to the L terminal and the lamps to the L1 and L2 outputs; the lamps' other wires go to neutral (N). Caution: cut off the power during installation and removal.
- L: Live
- L1, L2: Lamp outputs
- N: Neutral (to the lamps)
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel – it clicks into place.
In detail
