Luxion Mechanical Light Switch with Glass Frame – 1 Gang – White

1 / 4

Luxion

Luxion Mechanical Light Switch with Glass Frame – 1 Gang

SKU: LX-MP001GF-W

AED 24

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion 1 gang mechanical light switch with a glass frame, available in White, Black, Grey and Gold.

Product details

Luxion mechanical light switches stand out for their compact, elegant and minimalist design. They are practical, made from quality materials and built to last, bringing both functionality and comfort to your home.

Highlights

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new LUXION single mechanical switch with glass frame. Available in several glass frame colours, as shown on the banners.

Single mechanical switch
Glass frame
Fade-resistant: the elegant design stays intact

Ideal For

Office
Bedroom
Kitchen
Living room

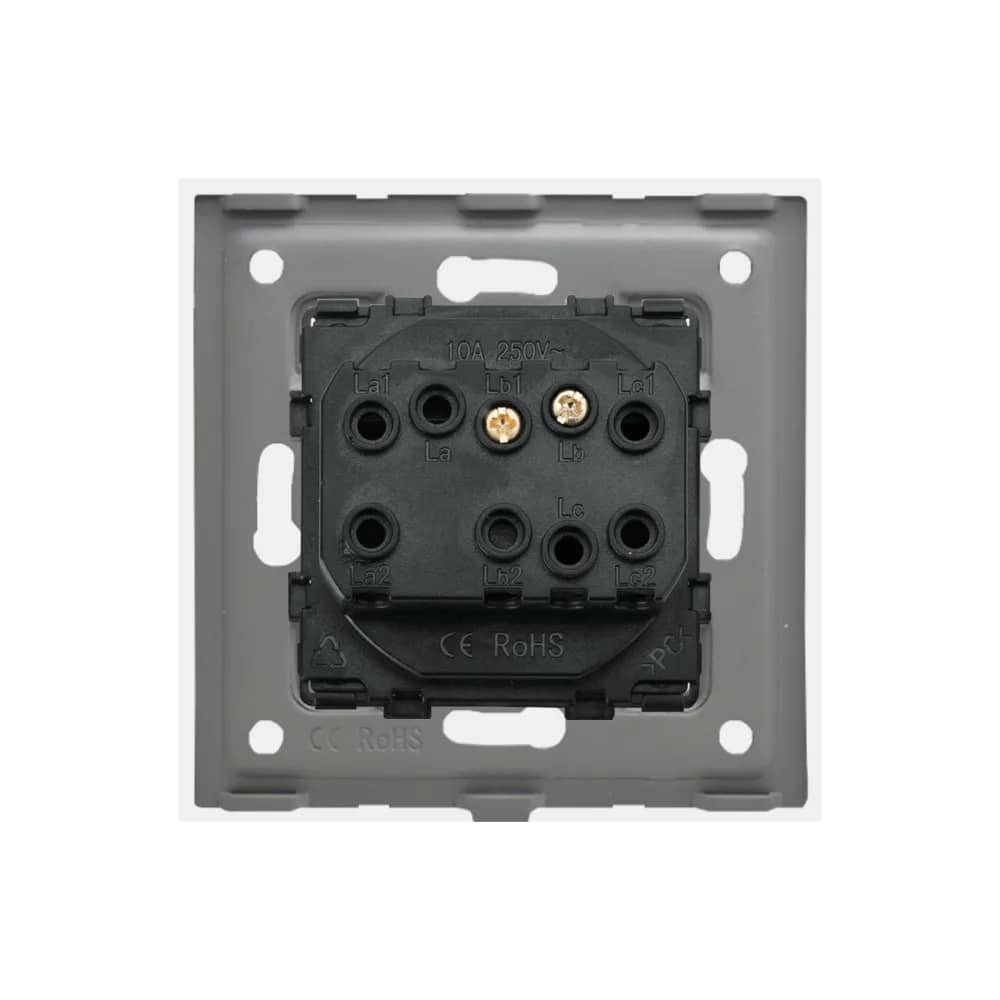

Structure

The switch consists of three main parts.

Glass frame
Switch module
Metal mounting frame
Screw fixing system with 60 mm spacing

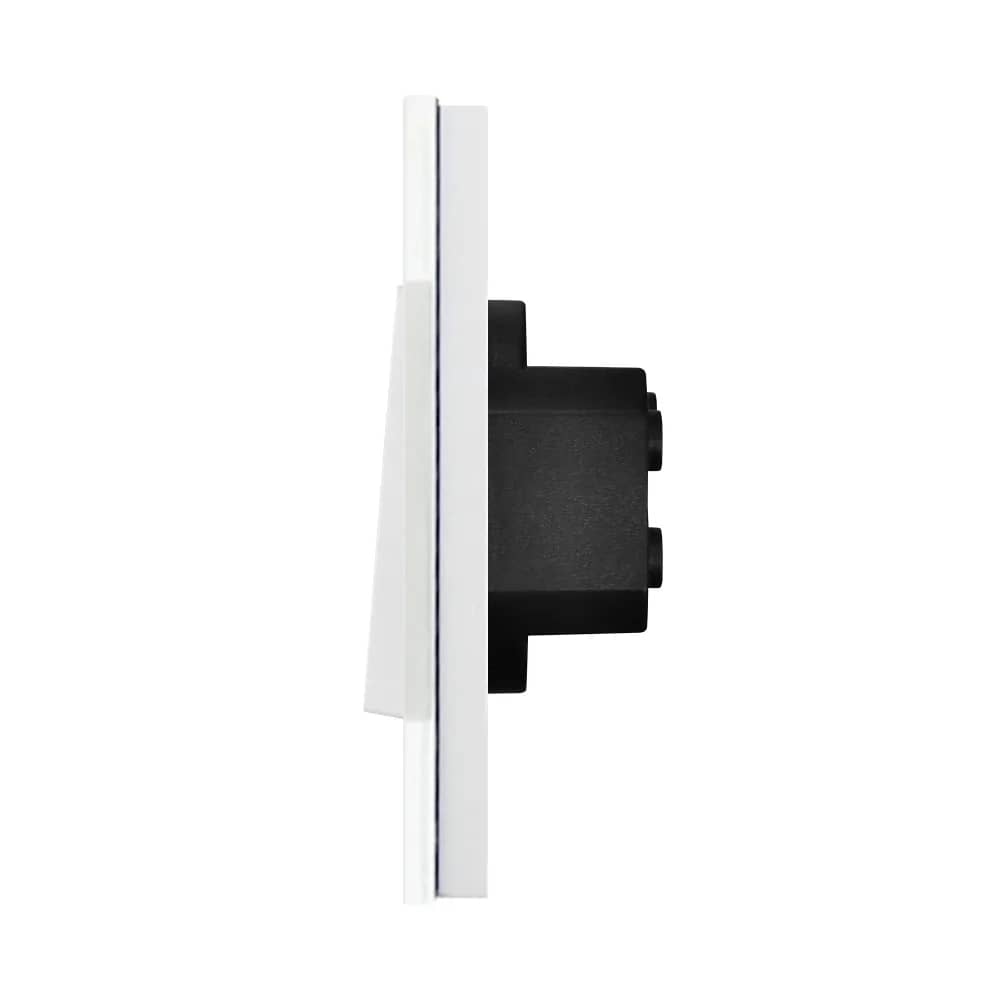

Dimensions

Front panel: 86 mm x 86 mm
Module height: 49 mm
Depth: 9 mm + 20 mm
Glass thickness: 5 mm
Screw fixing spacing: 60 mm

Wiring Diagram

The live wire (L) connects to the switch, and the switched output goes to the light; the neutral wire (N) connects directly to the light.

Neutral (N)
Live (L)

Installation Steps

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Fit the front panel (it clicks into place).
