Compact, Elegant and Minimalist Design
LUXION single touch switch. Enjoy the versatility of the new smart switches.
Luxion
Luxion Glass Touch Light Switch – 1 Gang, 500W
SKU: LX-ST-101G-W
AED 49
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.

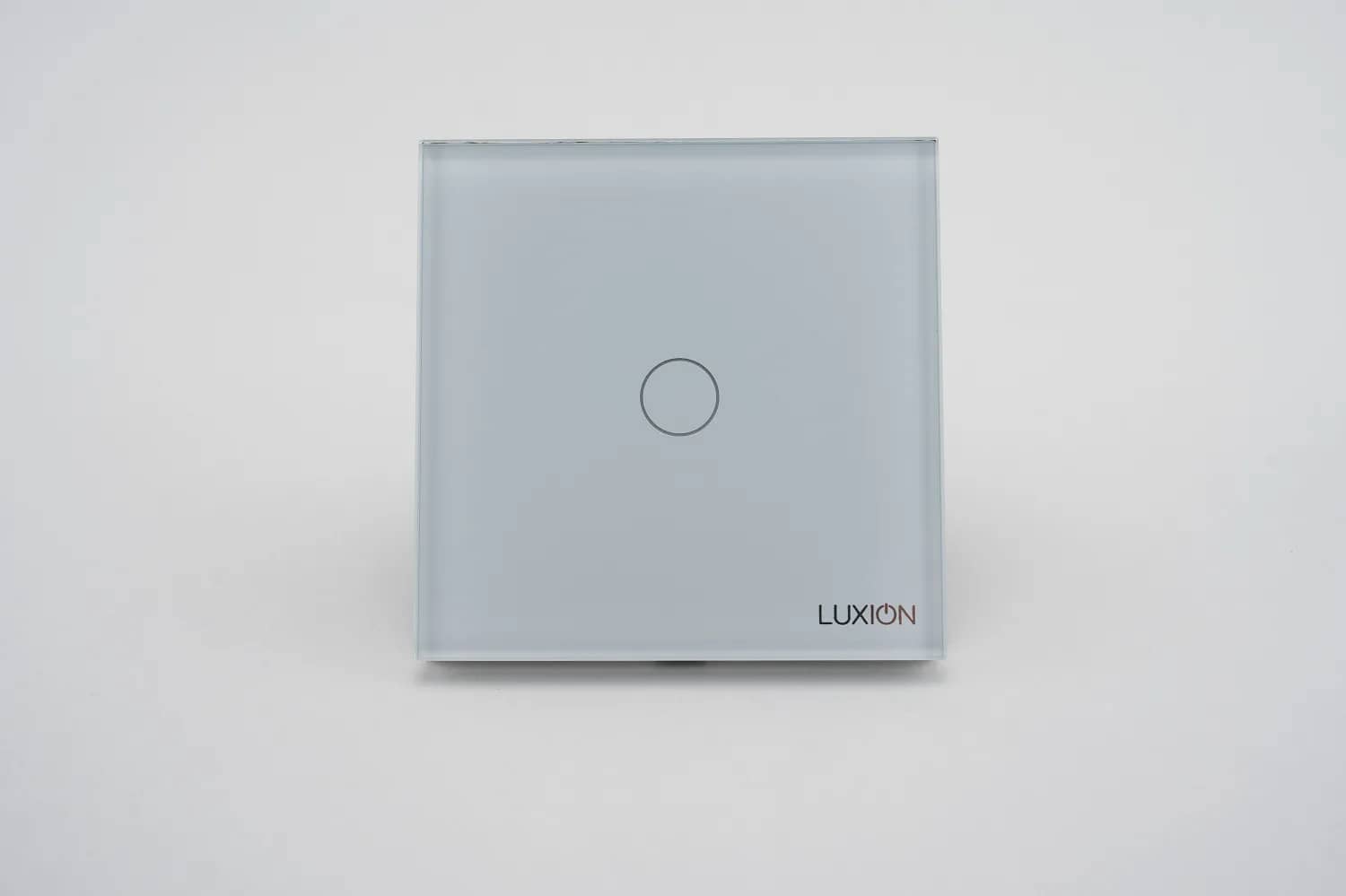

Luxion 1 gang tempered-look glass touch light switch, 500W, with a precise smartphone-like touch sensor. Available in White, Gold, Grey and Black.
Product details
Luxion 1 gang glass touch light switch. The Luxion range of switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Moisture Resistant
Suitable for use in humid environments.
04
Does Not Discolour
The elegant design stays intact.
05

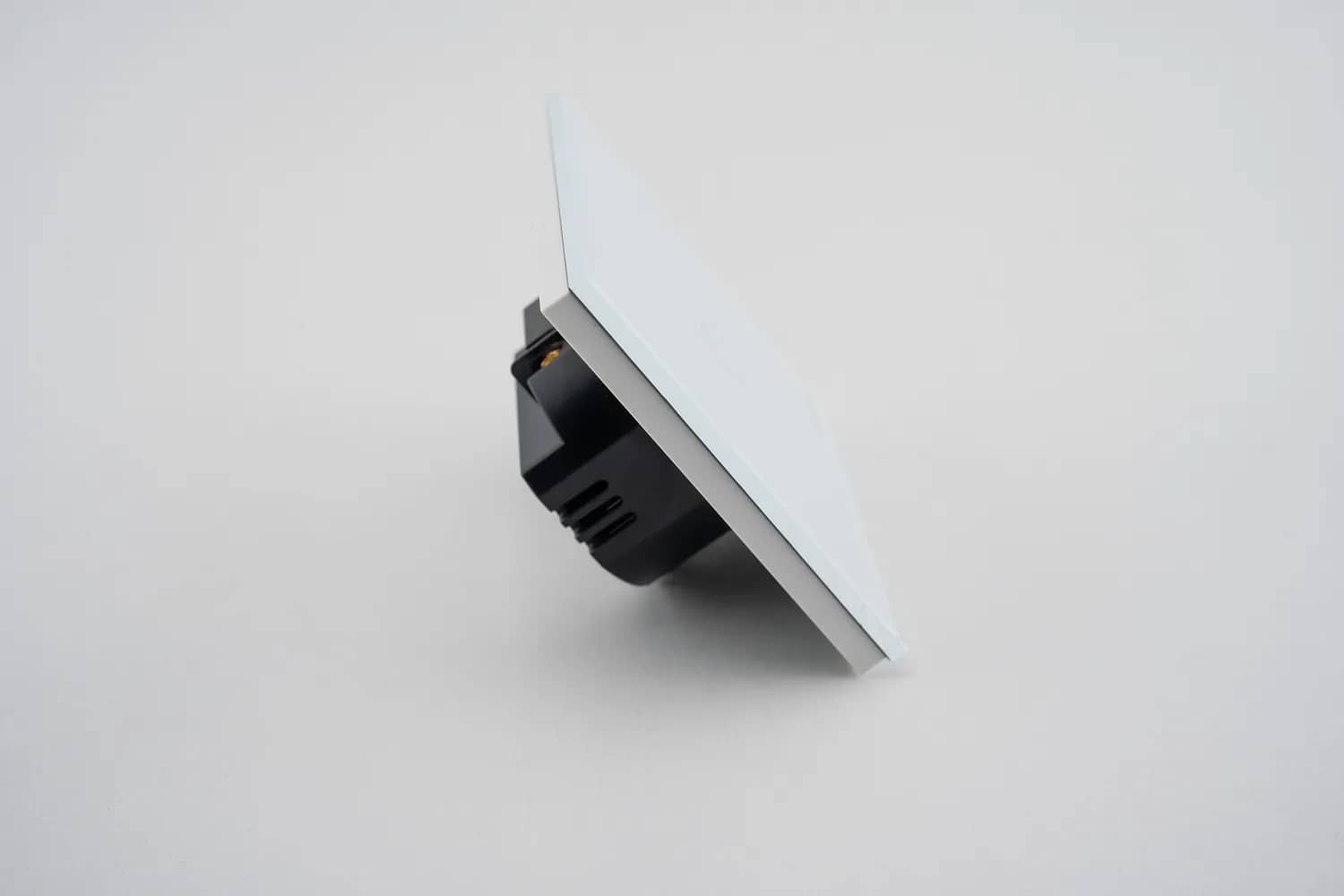

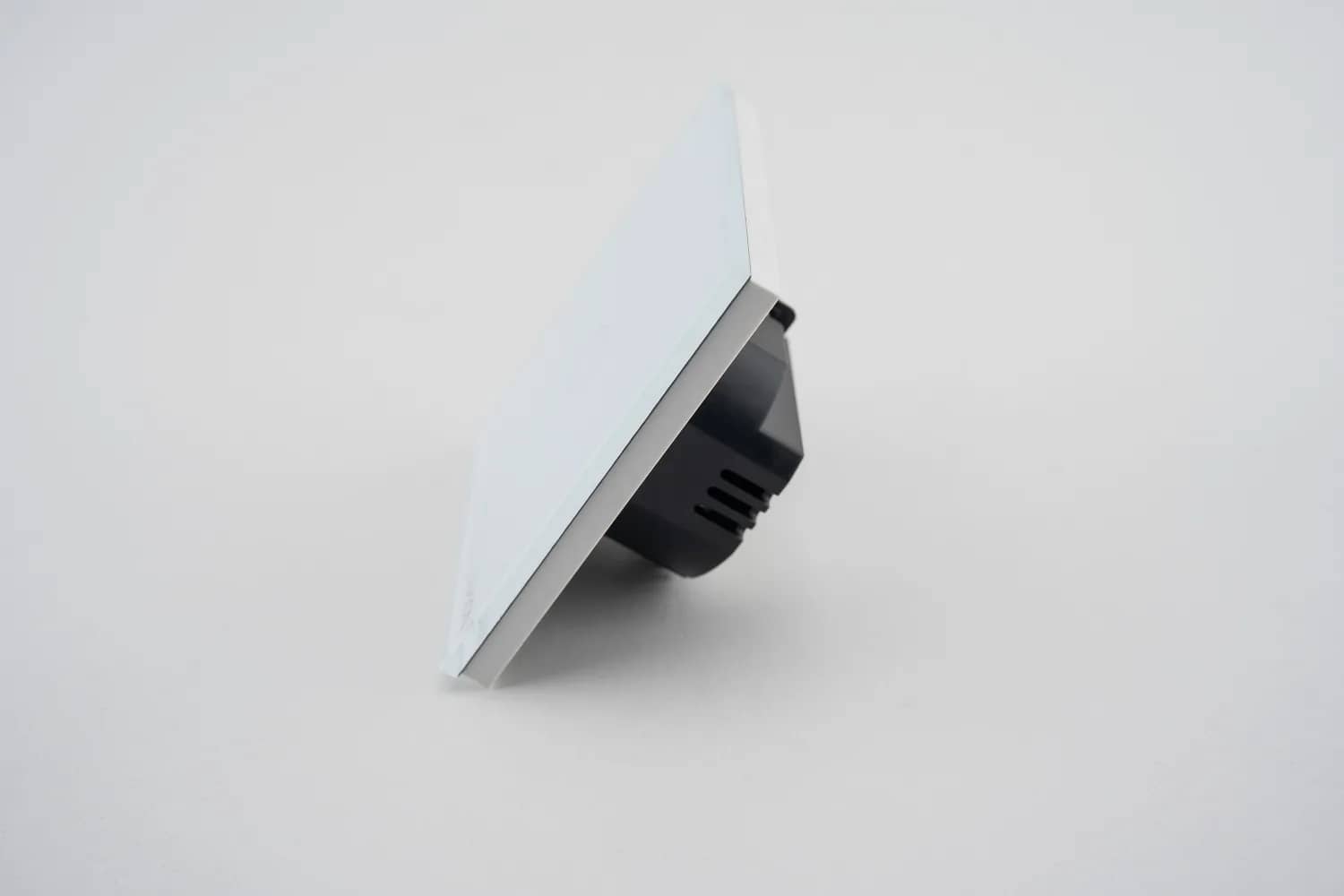

Structure
The switch consists of three main parts and is fixed with a screw mounting system.
- Elegant glass panel
- Switch module
- Metal frame
- Screw mounting system: 60 mm fixing distance
06

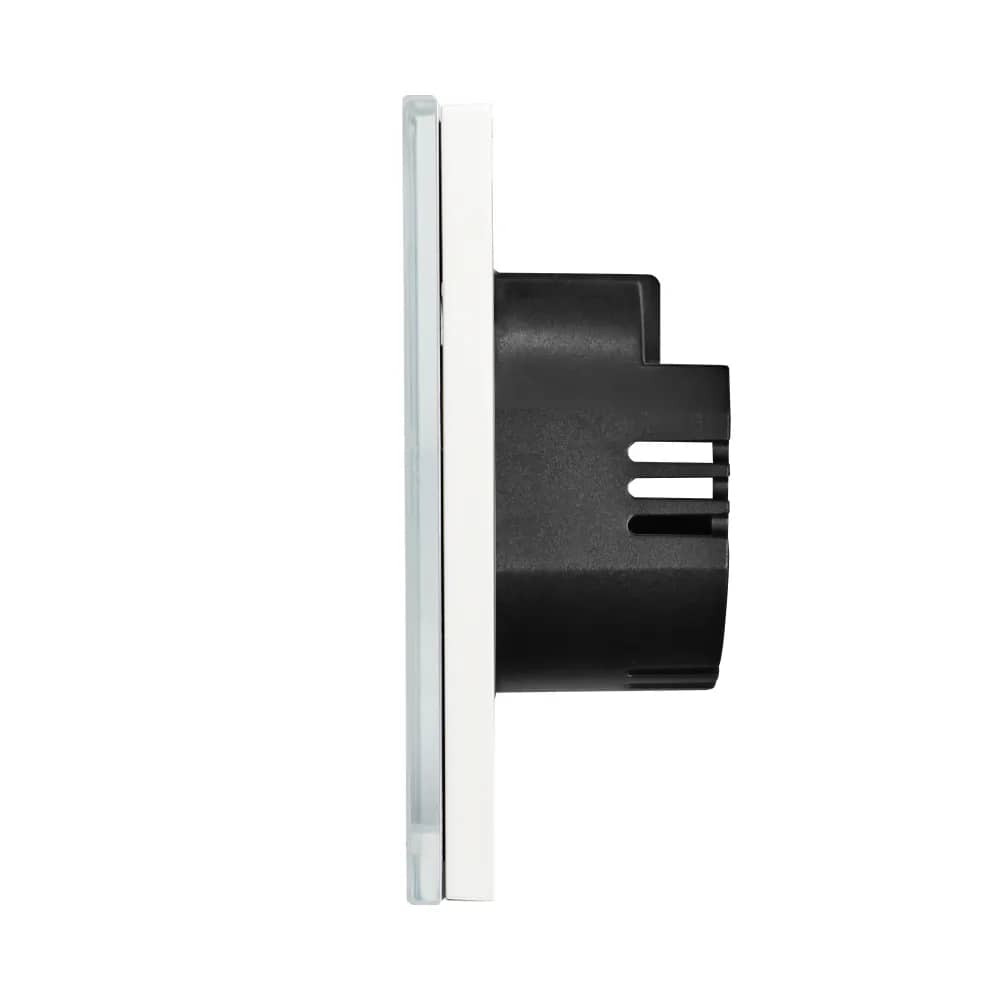

Dimensions
- Panel: 86 mm x 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
07
Technical Data

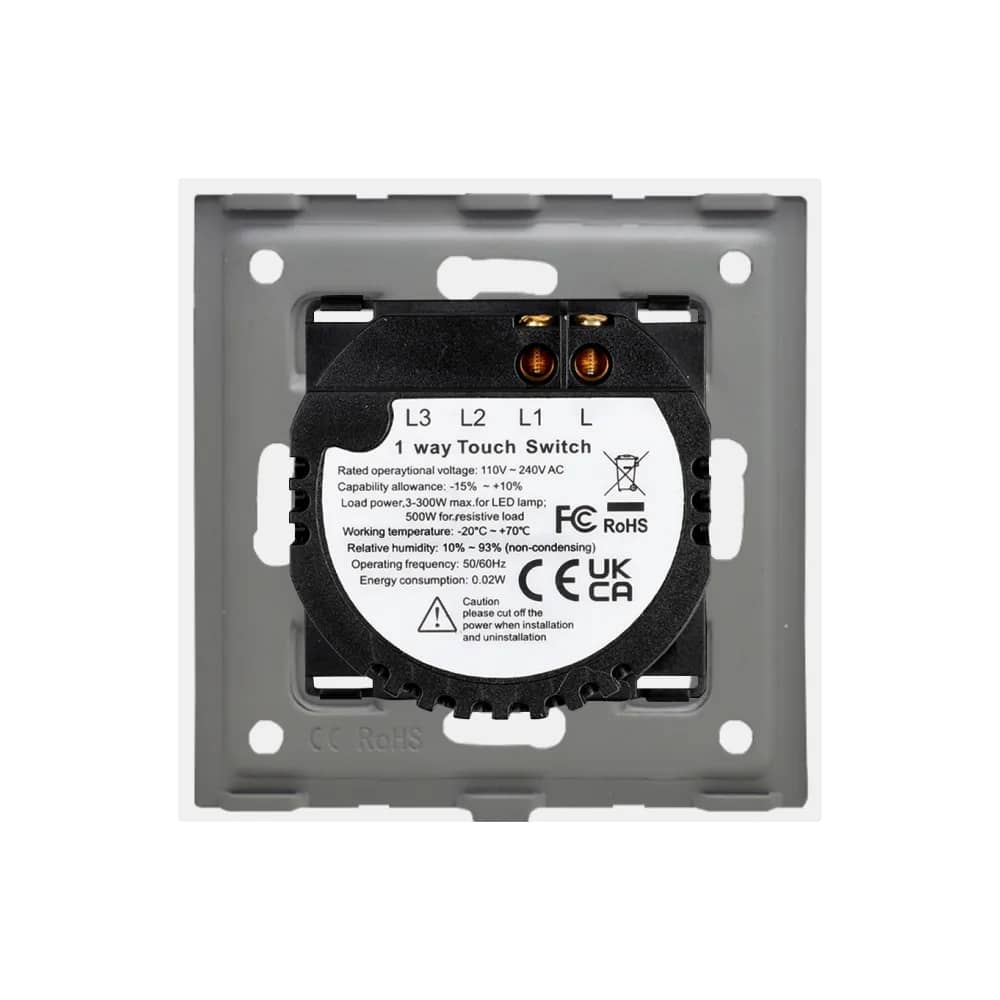

As printed on the switch module (1 way Touch Switch).
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
08
Wiring Diagram
Connect the live (L) wire to terminal L and the lamp wire to terminal L1; the lamp connects to neutral (N). Cut off the power during installation and removal.
- Live (L) → terminal L
- Lamp → terminal L1
- Neutral (N) → lamp
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel until it clicks.
