Compact, Elegant and Minimalist Design
Luxion Wi-Fi socket with glass frame. Enjoy the versatility of the new smart sockets.
Luxion
Luxion Wi-Fi Smart Single Socket with Energy Monitoring and Glass Frame
SKU: LX-1MP034MG-W
AED 87
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Wi-Fi smart single wall socket with energy monitoring, child protection, timer, schedules and scenes, finished with an elegant glass frame.
Product details
The Luxion Wi-Fi smart single socket features energy consumption monitoring, standard earthing and child protection. It offers smart functions such as a timer, scheduling, group control (family sharing) and scene creation.
Luxion sockets stand out for their compact, elegant and minimalist design. They are versatile, feature child protection, and their latest-generation technology helps save energy. The structure is durable and the sockets do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
Highlights
02
Remote Control via the Smart Life App
Switch connected devices on or off from anywhere using the Smart Life app. Open the app to control the devices in your home just the way you like, and change the atmosphere of your home at the touch of a button.
03
Voice Control
Switch devices on more easily with the Amazon Alexa and Google Assistant voice assistants, for example: "Alexa, turn on the lamp."
- Amazon Alexa
- Google Home
- IFTTT
04

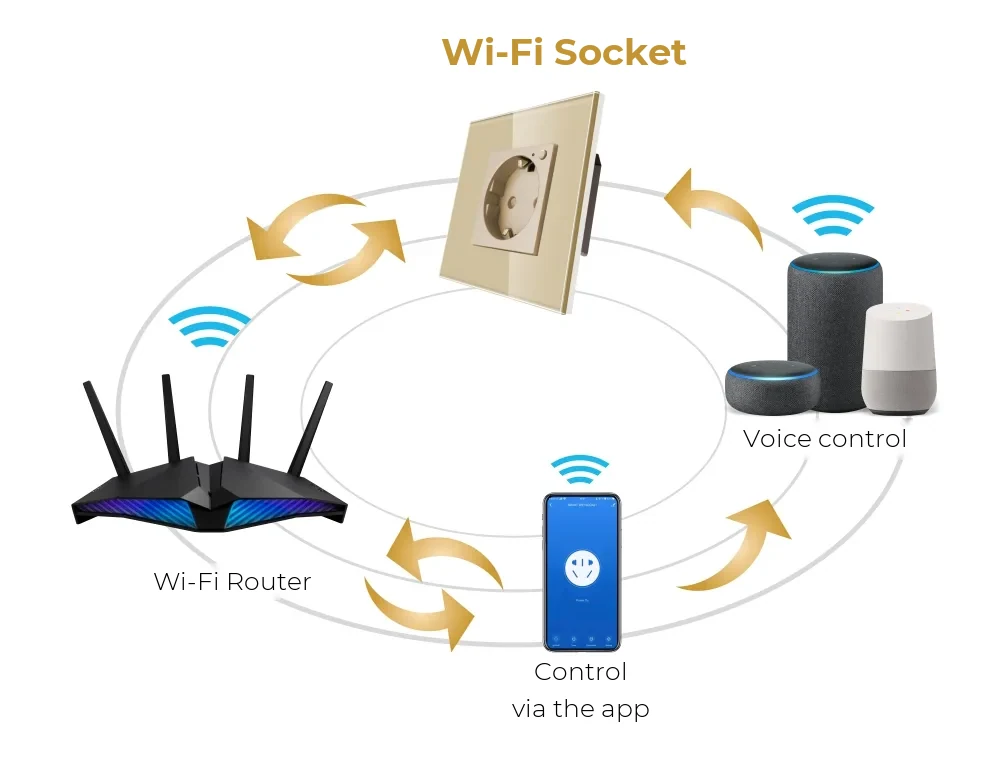

Direct Wi-Fi Connection – No Hub Required
Luxion Wi-Fi sockets connect directly to your Wi-Fi router, with no hub needed. To control the socket from your phone, install the Smart Life mobile app.
- Wi-Fi router connection
- Control via the app
- Voice control
05
Structure
The socket consists of three parts and is fixed with a screw mounting system.
- Glass frame
- Socket module
- Metal frame
06

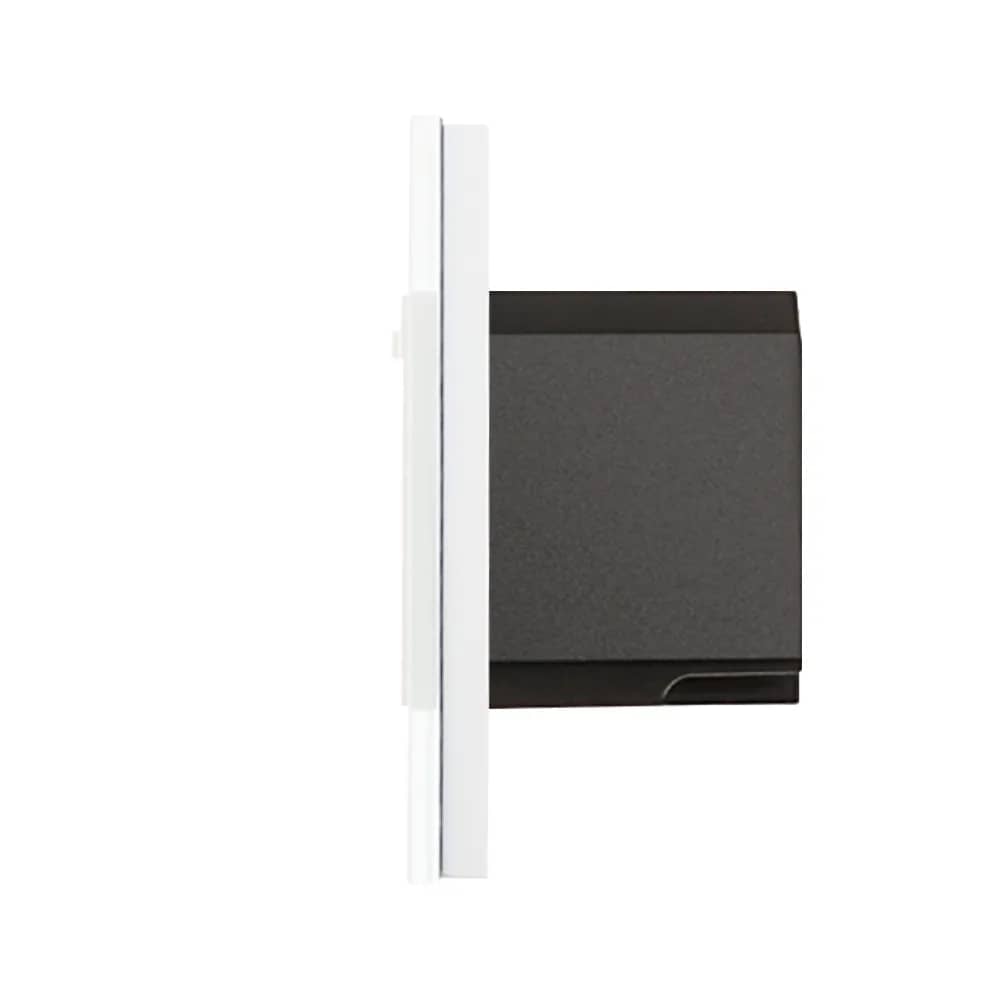

Dimensions
- Front panel: 86 mm x 86 mm
- Front panel thickness: 9 mm
- Module depth: 35 mm
- Module height: 47 mm
- Screw mounting spacing: 60 mm
07

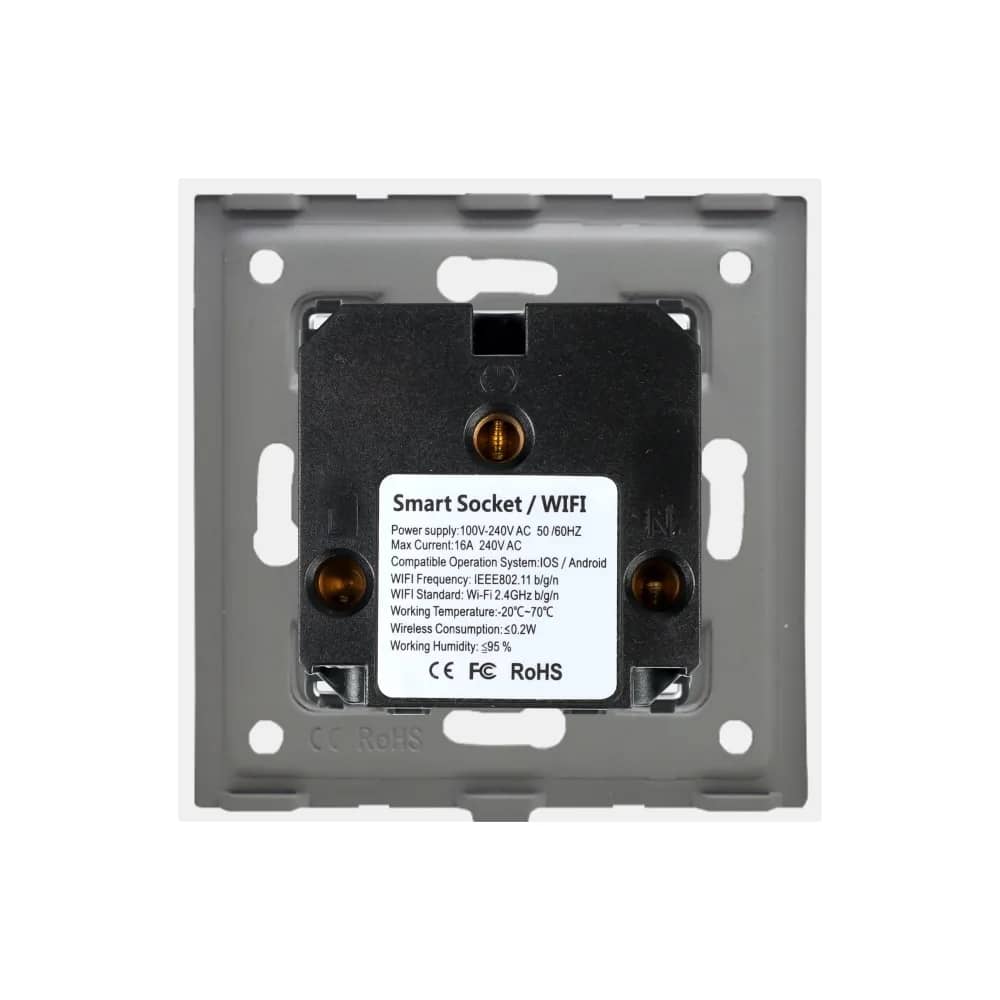

Technical Data
- Power supply: 100V-240V AC, 50/60Hz
- Max current: 16A, 240V AC
- Compatible operating systems: iOS / Android
- Wi-Fi frequency: IEEE802.11 b/g/n
- Wi-Fi standard: Wi-Fi 2.4GHz b/g/n
- Working temperature: -20°C to 70°C
- Wireless consumption: ≤0.2W
- Working humidity: ≤95%
- Markings: CE, FC, RoHS
08
Wiring Diagram
Connect the three wires to the corresponding terminals on the back of the socket.
- Live (L)
- Neutral (N)
- Earth
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
