01
Compact, Elegant and Minimalist Design
Enjoy the versatility of the new LUXION smart switches. This single Wi-Fi touch switch features an aluminium frame for a compact, elegant and minimalist look.
Luxion
Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 1 Gang
SKU: LX-WT2-101A-W
AED 119
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 1 gang Wi-Fi touch light switch with glass panel and aluminium frame – connects directly to the internet, no hub required.
Product details
Luxion 1 gang touch light switch with glass panel and aluminium frame, Wi-Fi. It connects directly to the internet, without the need for a hub!
The Luxion light switch range stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
Installation: with the Wi-Fi adapter fitted in parallel to one of the bulbs, no neutral wire is required. The switch can also be installed without the Wi-Fi adapter, but in that case it requires a neutral wire.
These switches work as 2-way (staircase) / intermediate switches through automation, where a neutral wire is required. For a classic 2-way / intermediate wiring system, Zigbee switches are recommended.
Highlights
02
Key Features
- Touch sensor: extremely precise, identical to a smartphone sensor
- Moisture resistant: can be used in humid environments
- Does not discolour: the elegant design stays intact
03
Wi-Fi Smart Switch

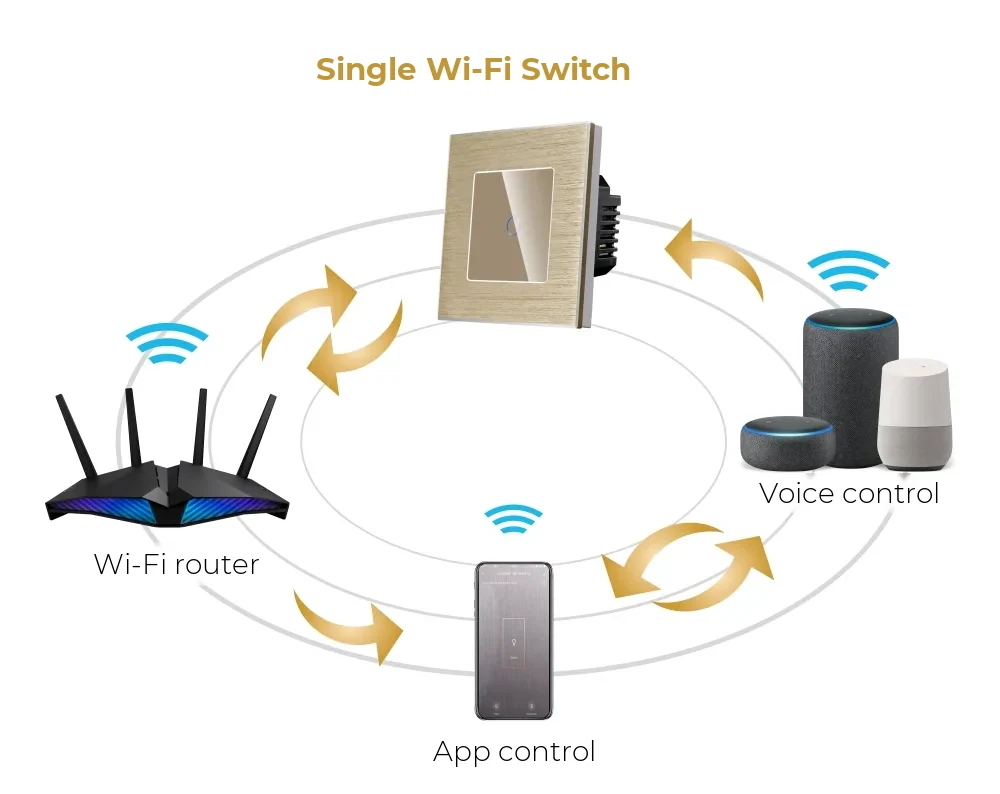

LUXION WIFI switches connect directly to your Wi-Fi router, with no hub required. Control the switch from the app or by voice.
- Connects directly to a Wi-Fi router
- App control
- Voice control
04
App Control with Smart Life
Change the atmosphere of your home at the touch of a button. Open the Smart Life app to customise the lighting in your home just the way you like it. To control the switch from the app, install the Smart Life mobile app.
05
Compatible with Amazon Alexa
With a simple voice command you can control the Wi-Fi switch to turn your lights on or off.
- Example: "Alexa, turn on the light!"
06
Structure
- Elegant glass panel with aluminium frame
- Switch module
- Metal frame
- Screw fixing system (60 mm spacing)
07

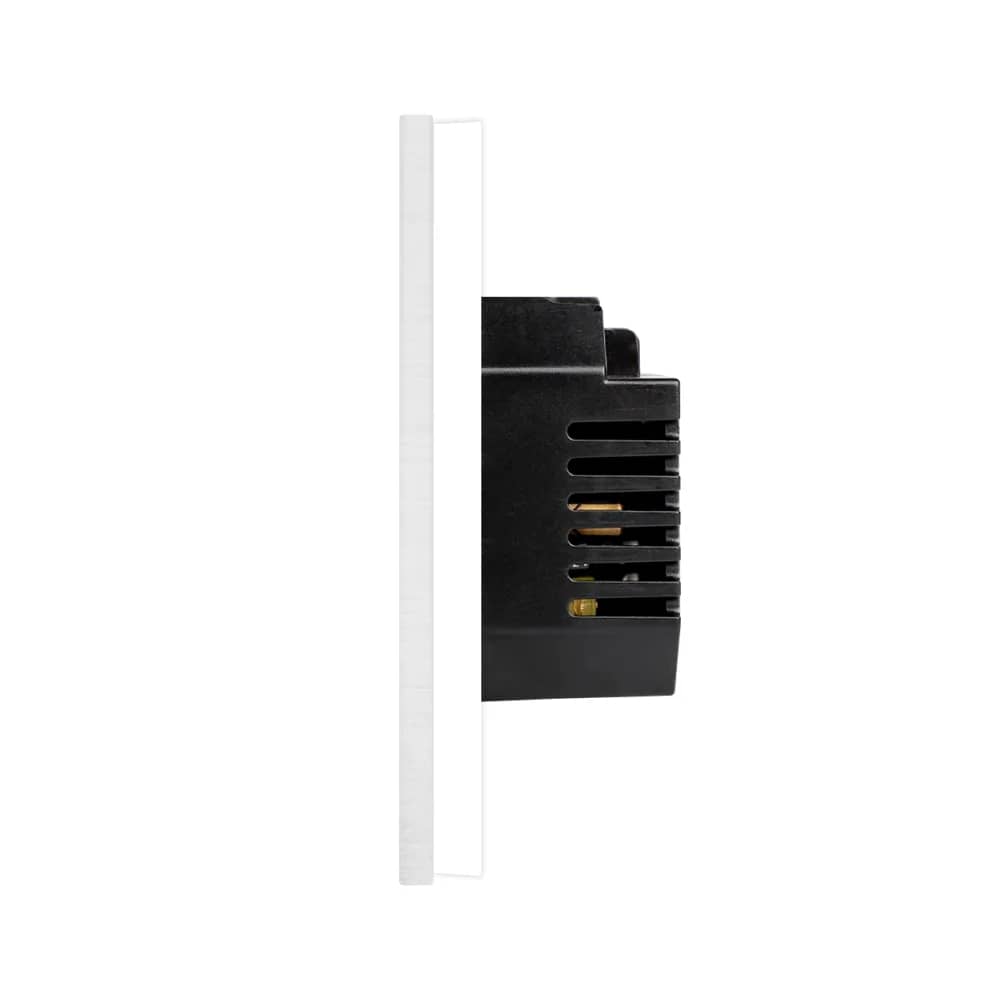

Dimensions
- Front panel: 86 mm x 86 mm
- Panel depth: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
- Fixing screw spacing: 60 mm
08

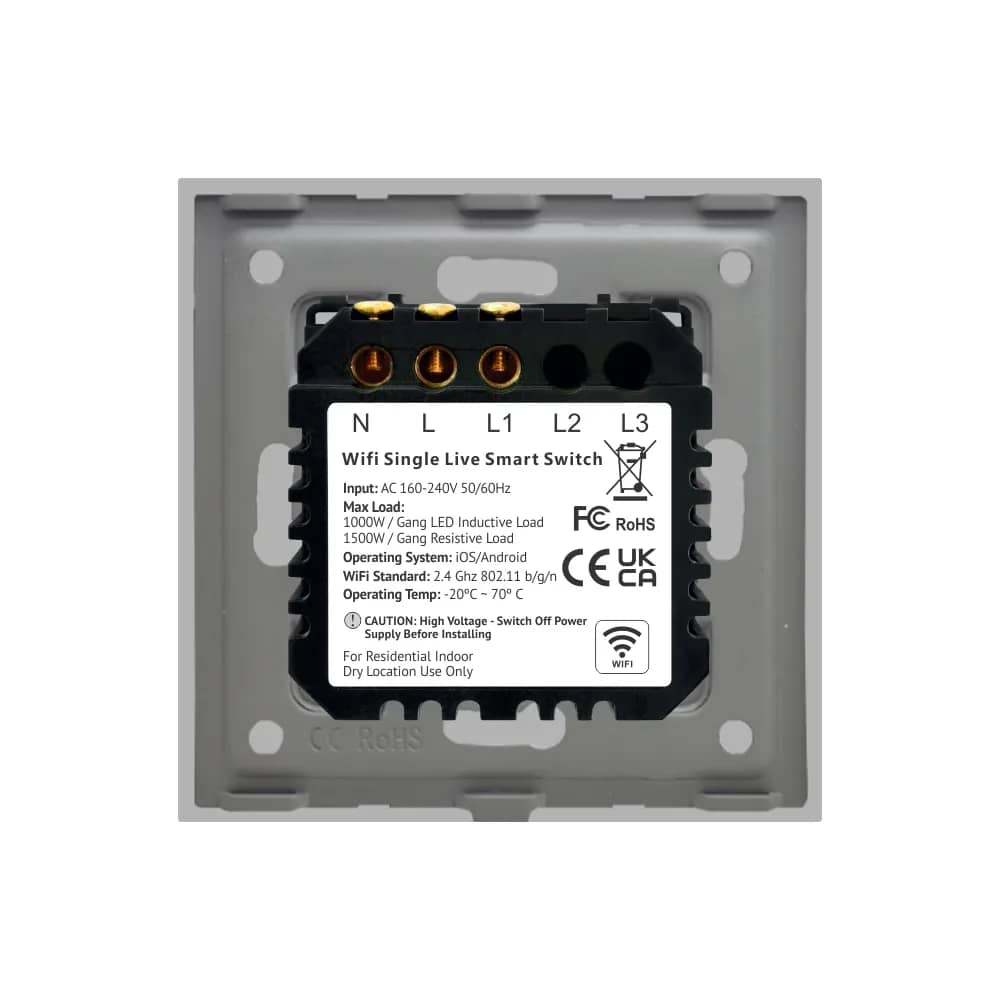

Technical Data (Module Label)
- Type: Wifi Single Live Smart Switch
- Input: AC 160-240V 50/60Hz
- Max load: 1000W / Gang LED inductive load; 1500W / Gang resistive load
- Operating system: iOS/Android
- WiFi standard: 2.4 GHz 802.11 b/g/n
- Operating temperature: -20°C – 70°C
- Terminals: N, L, L1, L2, L3
- For residential indoor, dry location use only
- Caution: high voltage – switch off power supply before installing
09
Wiring Diagram
The switch can be wired with or without a neutral in the wall box.
- Without neutral: Live (L) to L, lamp on L1, with the supplied-type capacitor fitted across the lamp – does NOT require neutral in the box
- With neutral: Neutral (N) to N, Live (L) to L, lamp on L1 – requires neutral in the box
10
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (click into place).
In detail
