Luxion

Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang

SKU: LX-WT2-301A-W

AED 140

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, minimalist Luxion 3 gang Wi-Fi touch light switch with a glass panel, aluminium frame and smartphone-precise touch sensor.

Product details

Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. A triple touch switch with an aluminium frame from LUXION, with WiFi connectivity.

  • 3-gang touch switch
  • Aluminium frame
  • WiFi connectivity
Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – Key Features
02

Key Features

  • Touch sensor: extremely precise, identical to a smartphone sensor
  • Moisture resistant: can be used in damp environments
  • Does not discolour: the elegant design stays intact
Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – App and Voice Control
03

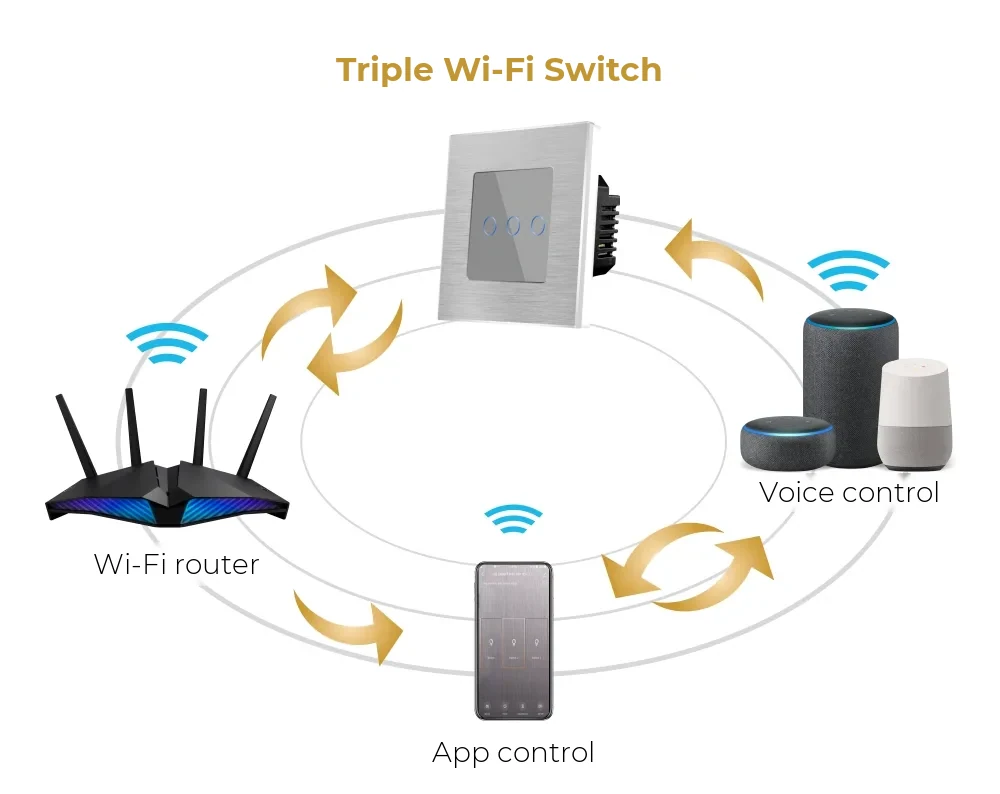

App and Voice Control

LUXION WIFI switches connect directly to your WiFi router, with no hub required. Open the Smart Life app to customise the lighting in your home to suit you and change the atmosphere at the touch of a button.

  • Control via app: install the Smart Life mobile app
  • Voice control
  • Compatible with Amazon Alexa: switch your lights on or off with a simple voice command

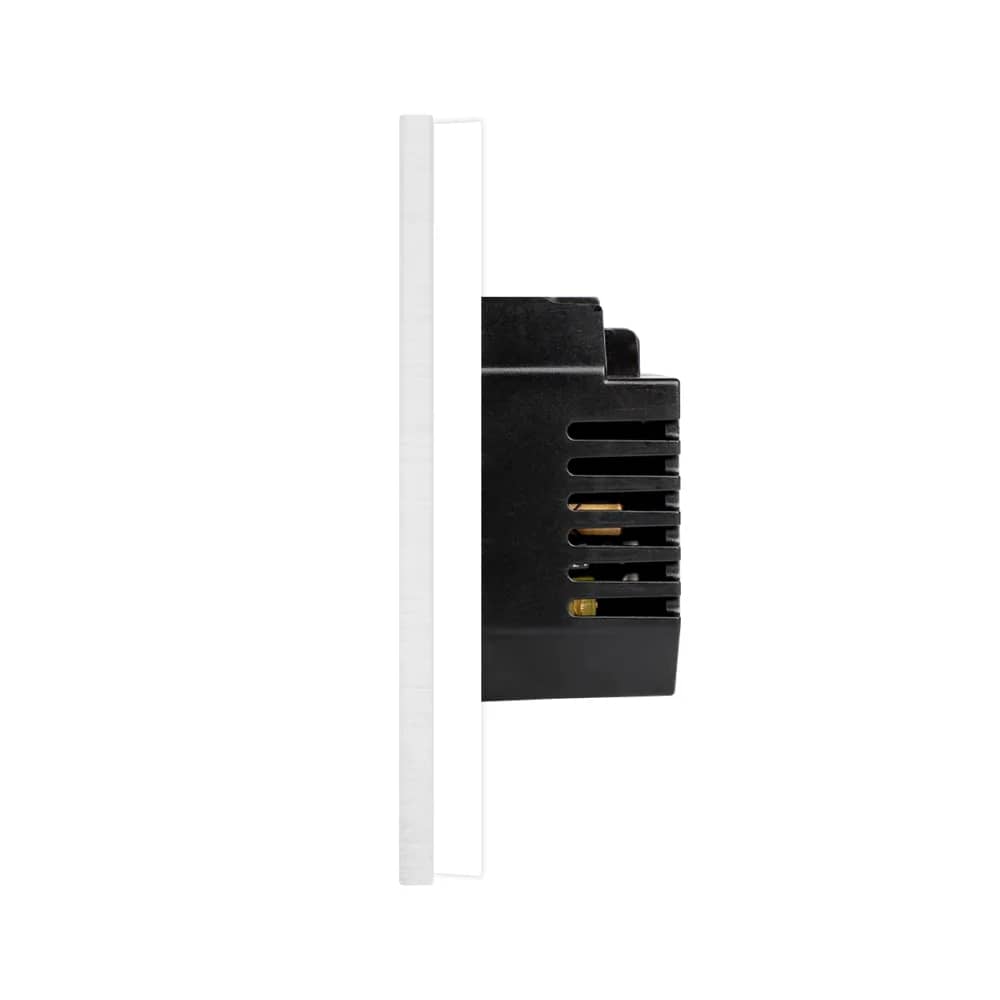

Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – Structure
04

Structure

  • Elegant glass panel with aluminium frame
  • Switch module
  • Metal frame
  • Screw fixing system, 60 mm spacing

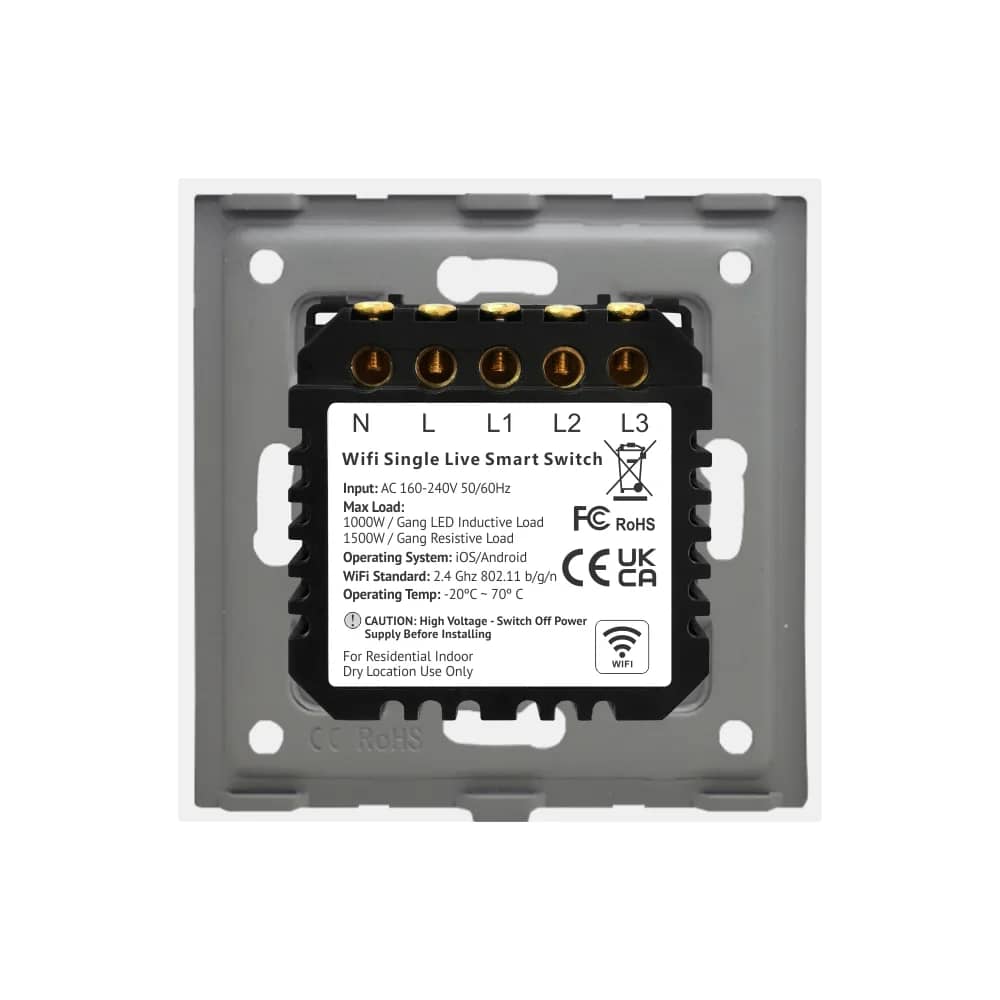

Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – Technical Data
05

Technical Data

  • Input: AC 160-240V 50/60Hz
  • Max load: 1000W / gang LED inductive load; 1500W / gang resistive load
  • Operating system: iOS/Android
  • WiFi standard: 2.4 GHz 802.11 b/g/n
  • Operating temperature: -20°C ~ 70°C
  • Terminals: N, L, L1, L2, L3
  • Dimensions: 86 mm x 86 mm
  • Depth: 9 mm (panel) + 26 mm (module)
  • Module height: 49 mm
  • For residential indoor, dry location use only
Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – Wiring Diagram
06

Wiring Diagram

The switch can be wired with or without a neutral in the wall box.

  • Without neutral (N) in the wall box: connect phase (L) only, using the supplied adapter across the load
  • With neutral (N) in the wall box: connect both neutral (N) and phase (L)
  • Caution: high voltage – switch off the power supply before installing
07

Installation Steps

  • 1. Open the package
  • 2. Connect the wires and tighten the screws
  • 3. Use the 2 screws to fix the frame
  • 4. Fit the front panel (it clicks into place)

In detail

Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – detail 1Luxion Wi-Fi Glass Touch Light Switch with Aluminium Frame – 3 Gang – detail 2
