01

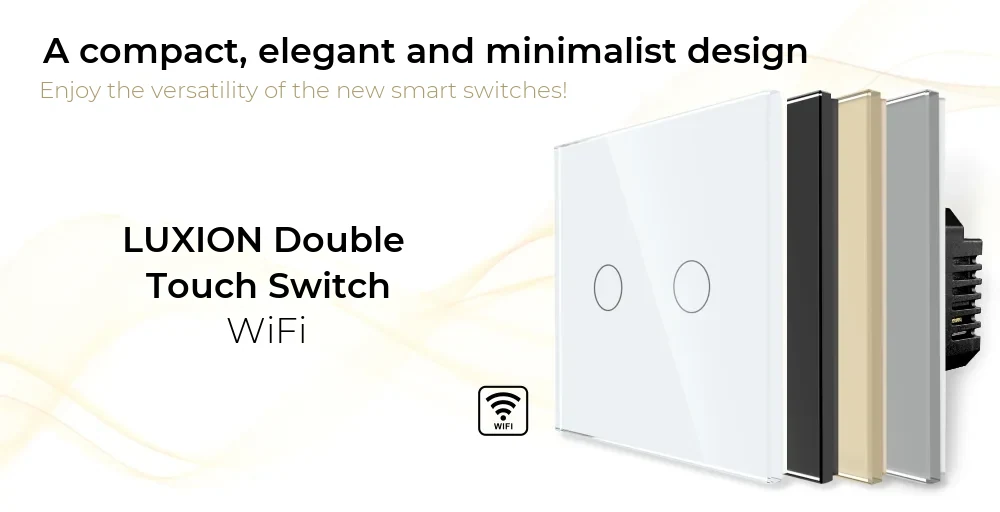

Compact, Elegant and Minimalist Design
Enjoy the versatility of the new LUXION WiFi double touch smart switch.
Luxion
Luxion Wi-Fi Glass Touch Light Switch – 2 Gang
SKU: LX-WT2-201G-W
AED 108
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang Wi-Fi touch light switch with tempered glass panel, connects directly to the internet without a hub. Available in four colours.
Product details
Luxion 2 gang glass touch light switch with Wi-Fi. It connects directly to the internet, without the need for a hub!
The Luxion light switch brand stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Installation: with the Wi-Fi adapter fitted in parallel to one of the bulbs, no neutral wire is required. The switch can also be installed without the Wi-Fi adapter, but in that case it requires a neutral wire.
Highlights
02
Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Does Not Discolour
The elegant design stays intact.
04

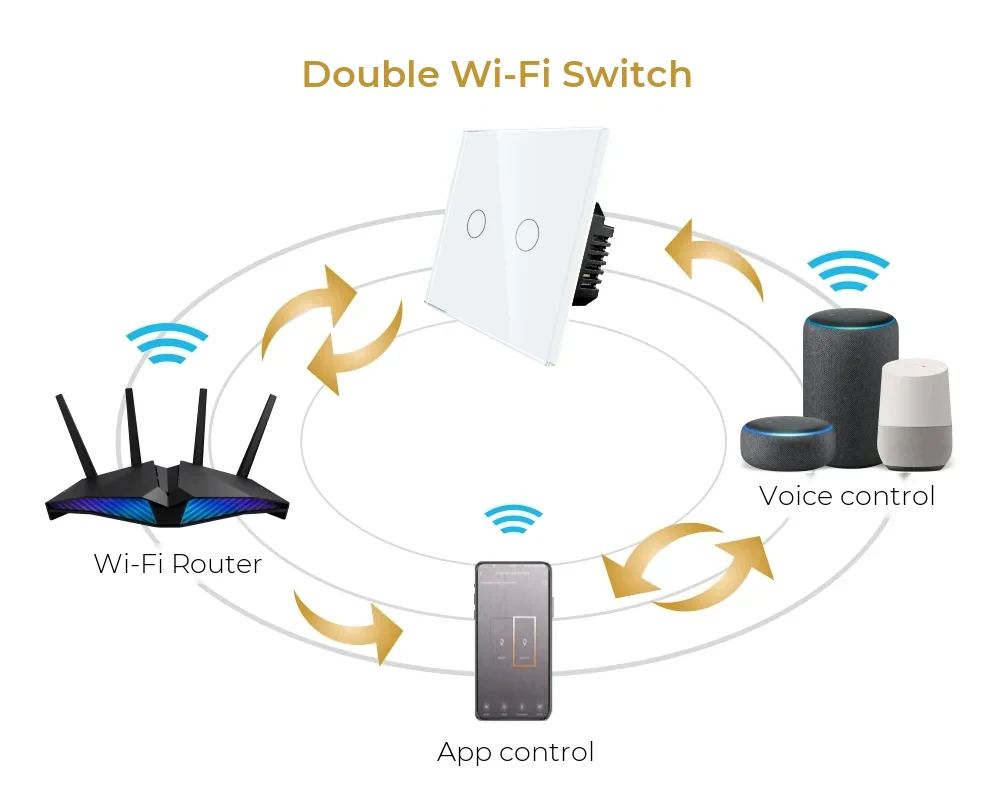

WiFi Double Switch
The switch connects to your WiFi router and can be controlled via the app or by voice.
- Connects to your WiFi router
- Control via app
- Voice control
05
App Control with Smart Life
Change the atmosphere of your home with the simple press of a button. Open the Smart Life app to customise the lighting in your home just the way you like.
- LUXION WIFI switches connect directly to the WiFi router, with no hub required
- To control the switch from the app, install the Smart Life mobile app
06
Compatible with Amazon Alexa
With a simple voice command you can control the WiFi switch to turn your lights on or off.
07
Scheduling Function
The switch can be scheduled as you wish. For example, the light can turn on at 8:00 and turn off at 22:00.
08
Structure
- Elegant glass panel
- Switch module
- Metal frame
- Screw fixing system with 60 mm spacing
09
Dimensions
- Panel: 86 mm x 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
- Fixing spacing: 60 mm
10
Wiring Diagram
The switch can be wired in two ways, depending on whether a neutral wire is available in the wall box.

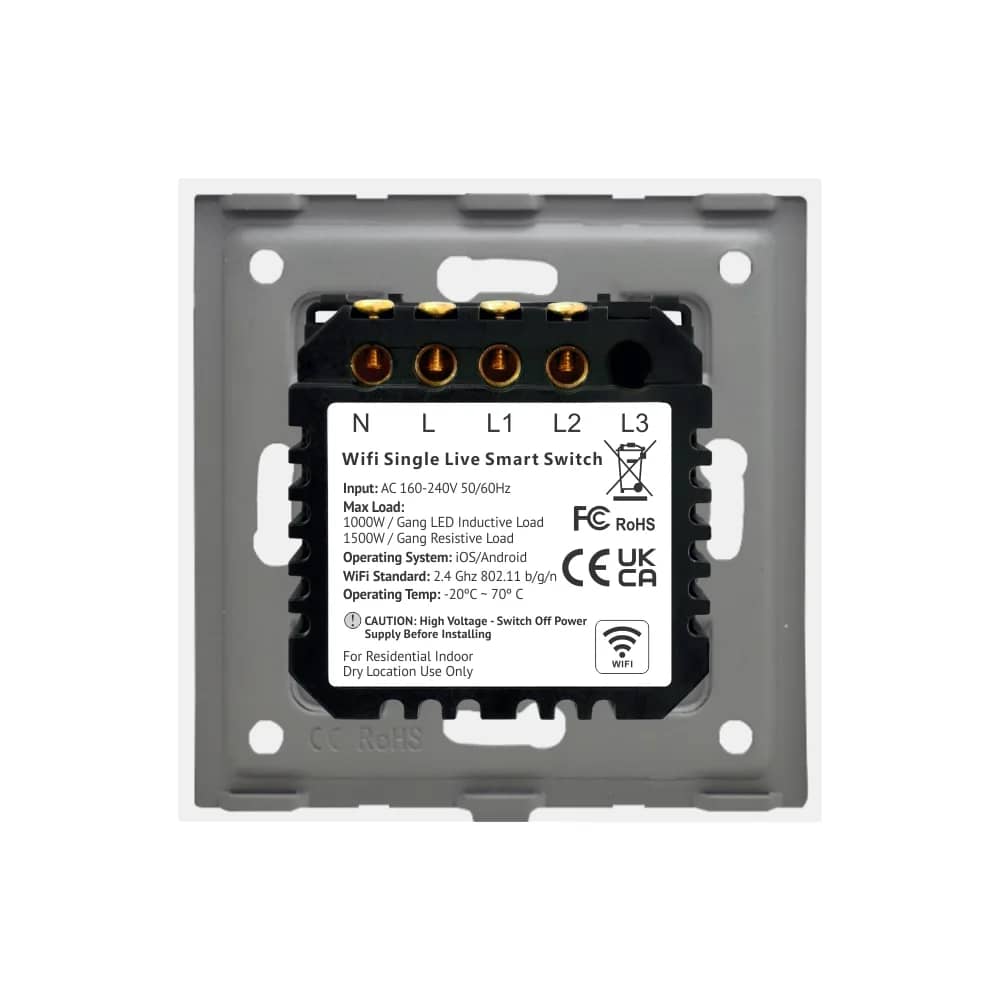

- Terminals: N, L, L1, L2, L3
- Neutral (N) and Live (L)
- Option 1: does NOT require a neutral in the wall box (with the supplied adapter fitted across the load)
- Option 2: requires a neutral in the wall box
11
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
In detail
