Luxion Wi-Fi Glass Touch Curtain Switch

Compact, Elegant and Minimalist Design

The Luxion Wi-Fi Glass Touch Curtain Switch brings the versatility of the new Luxion range to your home, with touch controls to open, pause and close your curtains.

• Touch-sensitive glass panel
• Wi-Fi connectivity
• Curtain open, pause and close buttons

Remote Control via the Smart Life App

Open or close your curtains remotely using the Smart Life mobile app.

• Wi-Fi connection
• Voice control
• Night mode
• Device sharing
• Schedules
• Smart scenes

Voice Control

Control the Wi-Fi switch with voice assistants – for example, "Alexa, close the curtains."

• Smart Life
• Tuya Smart
• Amazon Alexa
• Google Home
• IFTTT

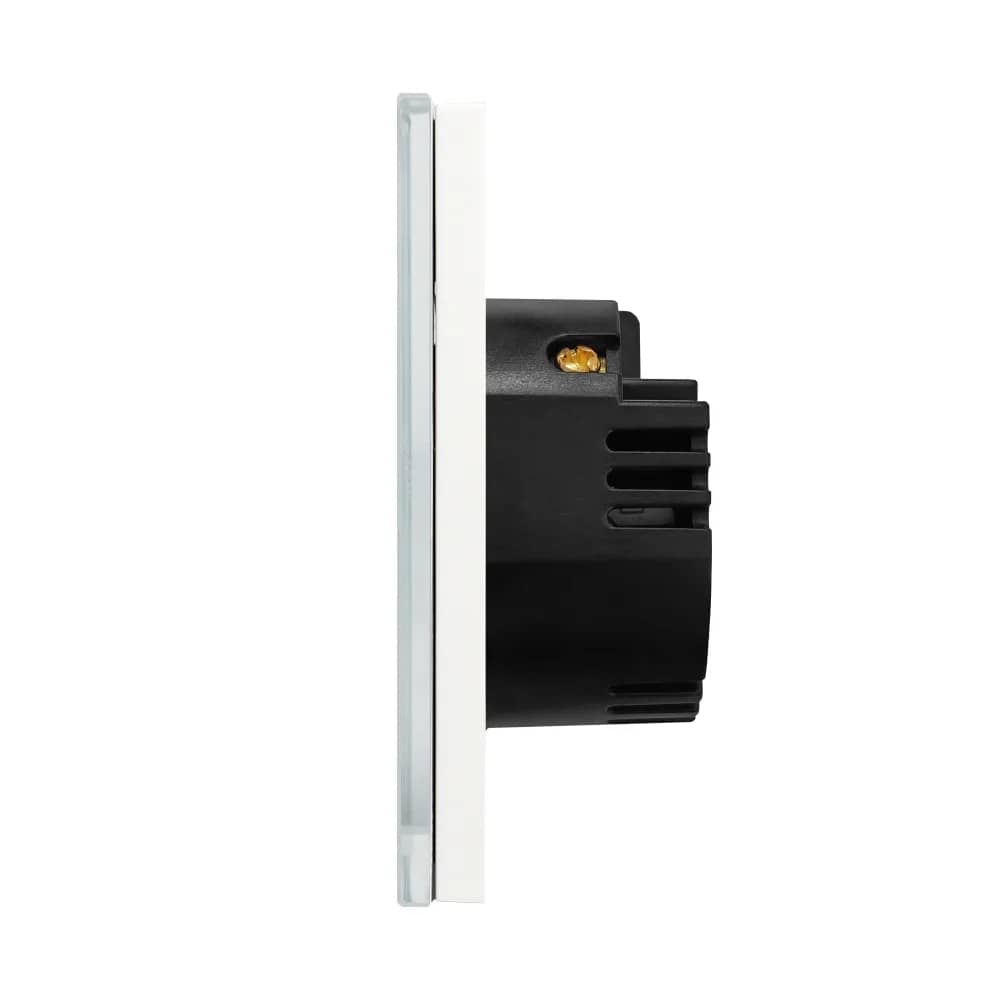

Structure

The switch consists of three parts and is fixed with a screw mounting system.

• Elegant glass panel
• Switch module
• Metal frame

Dimensions

• Panel: 86 mm x 86 mm
• Panel thickness: 9 mm
• Module depth: 26 mm
• Module height: 49 mm
• Screw mounting spacing: 60 mm

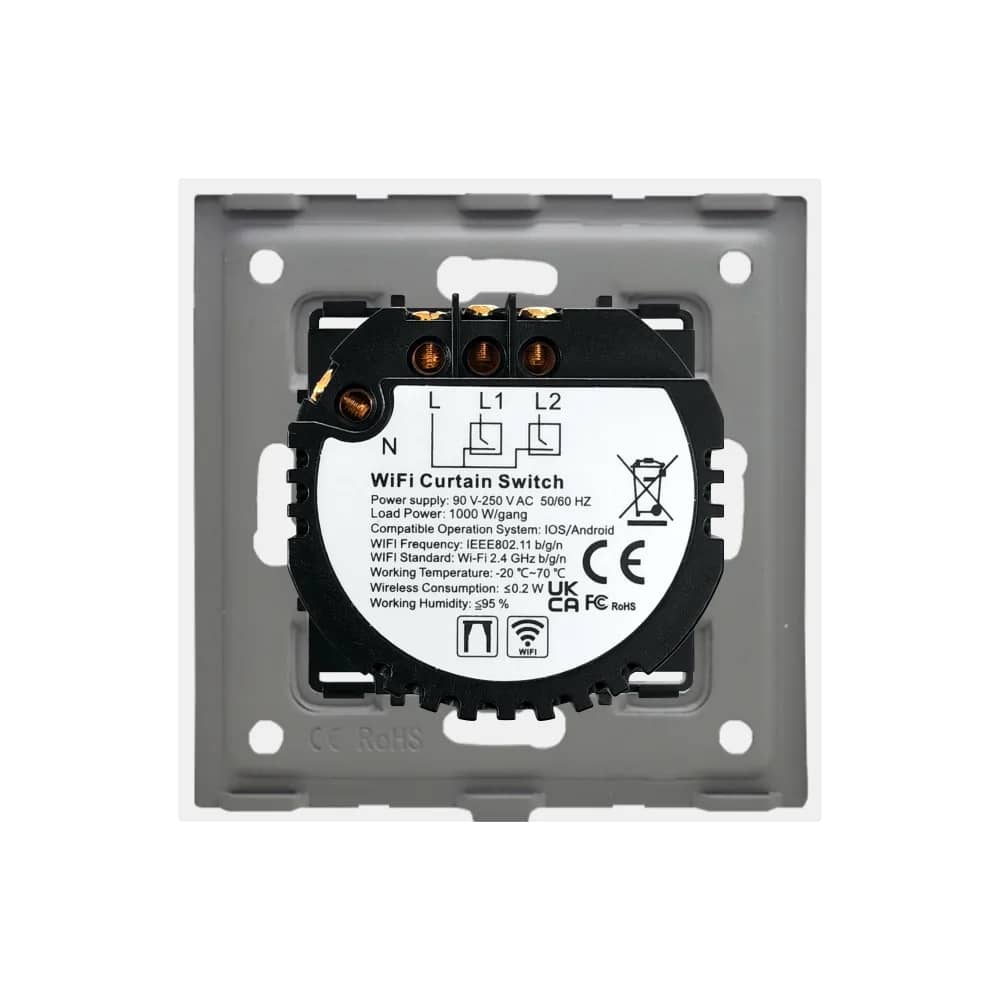

Technical Data

• Power supply: 90 V-250 V AC, 50/60 Hz
• Load power: 1000 W/gang
• Compatible operating system: iOS/Android
• Wi-Fi frequency: IEEE802.11 b/g/n
• Wi-Fi standard: Wi-Fi 2.4 GHz b/g/n
• Working temperature: -20 °C to 70 °C
• Wireless consumption: ≤0.2 W
• Working humidity: ≤95 %
• Markings: CE, UKCA, FC, RoHS
