Luxion Double Schuko Socket + TV + Internet with Glass Frame – White

1 / 4

Luxion

Luxion Double Schuko Socket + TV + Internet with Glass Frame

SKU: LX-2MP010/26/25G-W

AED 96

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion double Schuko socket with TV and internet outlets, child protection and a glass frame, in White, Black, Grey or Gold.

Plug type: this socket is the European Schuko type (CEE 7/3). Most UAE homes use BS 1363 (Type G) sockets — please check that it suits your installation and appliances, or ask us before ordering.

Product details

The Luxion double Schuko + TV + internet socket stands out for its compact, elegant and minimalist design. Luxion sockets are versatile and feature child protection, while the latest-generation technology supports energy saving. The structure is durable and the sockets do not discolour over time. It is a practical product, made from quality materials and built to last, bringing utility and comfort to your home.

Highlights

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. This unit combines a double Schuko socket with a TV socket and an Internet socket, all set in a glass frame.

Double Schuko socket
TV socket
Internet socket
Glass frame

Structure

The unit is made up of the following components.

Glass frame

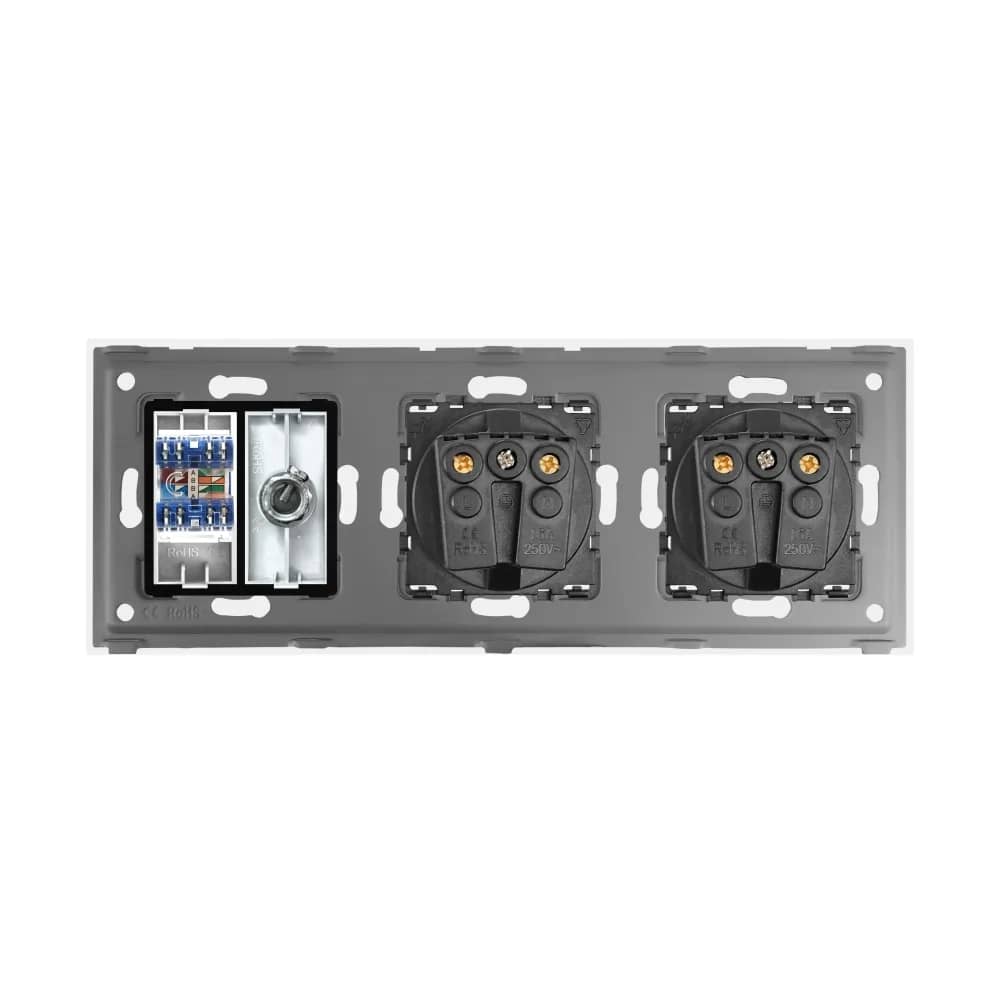

Schuko socket modules + TV + Internet socket module
Plastic support
Metal frame

Wiring Diagram

Connect each Schuko socket to the three supply lines as shown in the wiring diagram.

Live (L)
Neutral (N)
Earth line

Installation Steps

1. Fix the media sockets onto the plastic support.
2. Position the sockets at the top.
3. Secure the sockets at the bottom.
4. Place the sockets on the metal frame.
5. Position the sockets at the top.
6. Secure the sockets at the bottom.
7. Use the 2 screws to fix the frame.
8. Fit the glass frame (it clicks into place).

Dimensions

Width: 228 mm
Height: 86 mm

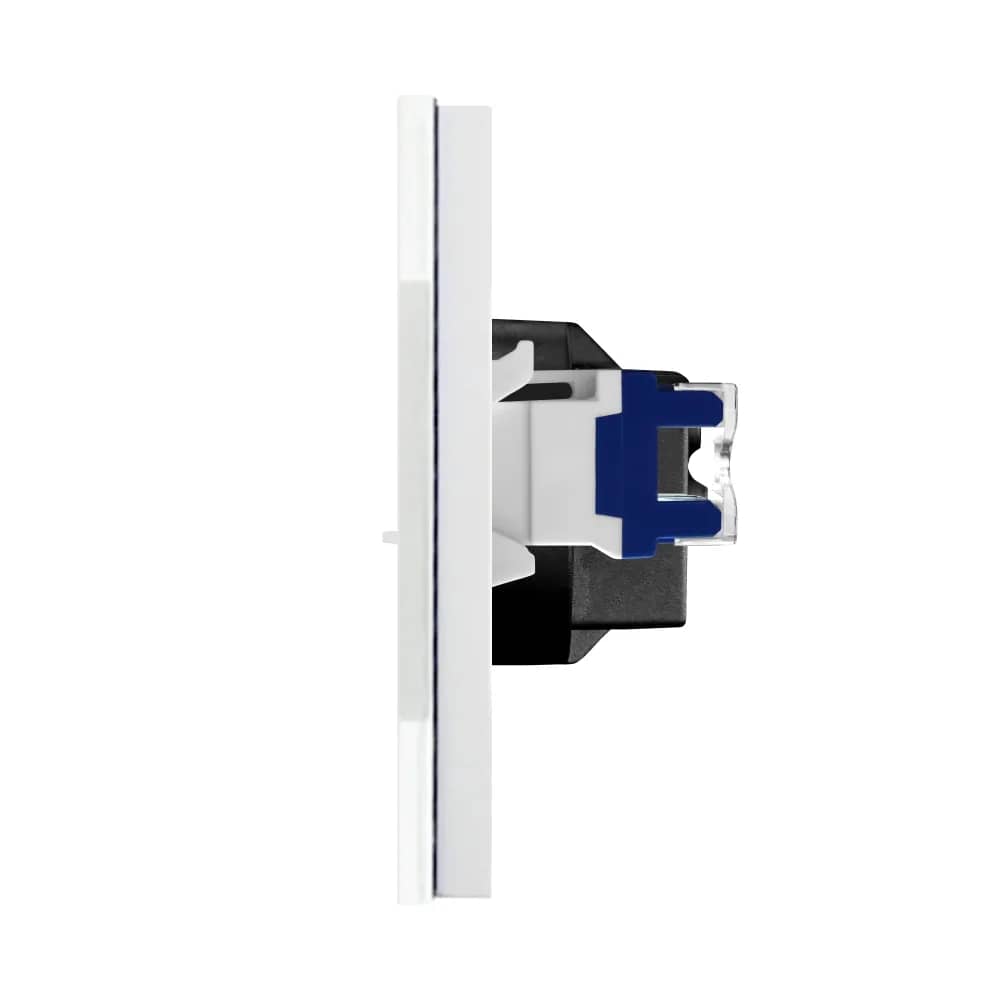

Depth: 9 mm (frame) + 30 mm (module)
Module height (rear): 47 mm
Screw fixing system: 60 mm spacing
