Luxion

Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame

SKU: LX-MT-B101A-W

AED 96

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion momentary touch doorbell button with a glass panel and aluminium frame, available in White, Gold, Grey and Black.

Product details

Luxion doorbell button with a compact, elegant and minimalist design. Luxion products are versatile, and the touch sensor is highly precise, identical to that of a smartphone. The structure is durable, and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

LUXION touch doorbell button with a glass panel and aluminium frame. Enjoy the versatility of the new smart products.

  • Touch-sensitive glass panel
  • Aluminium frame

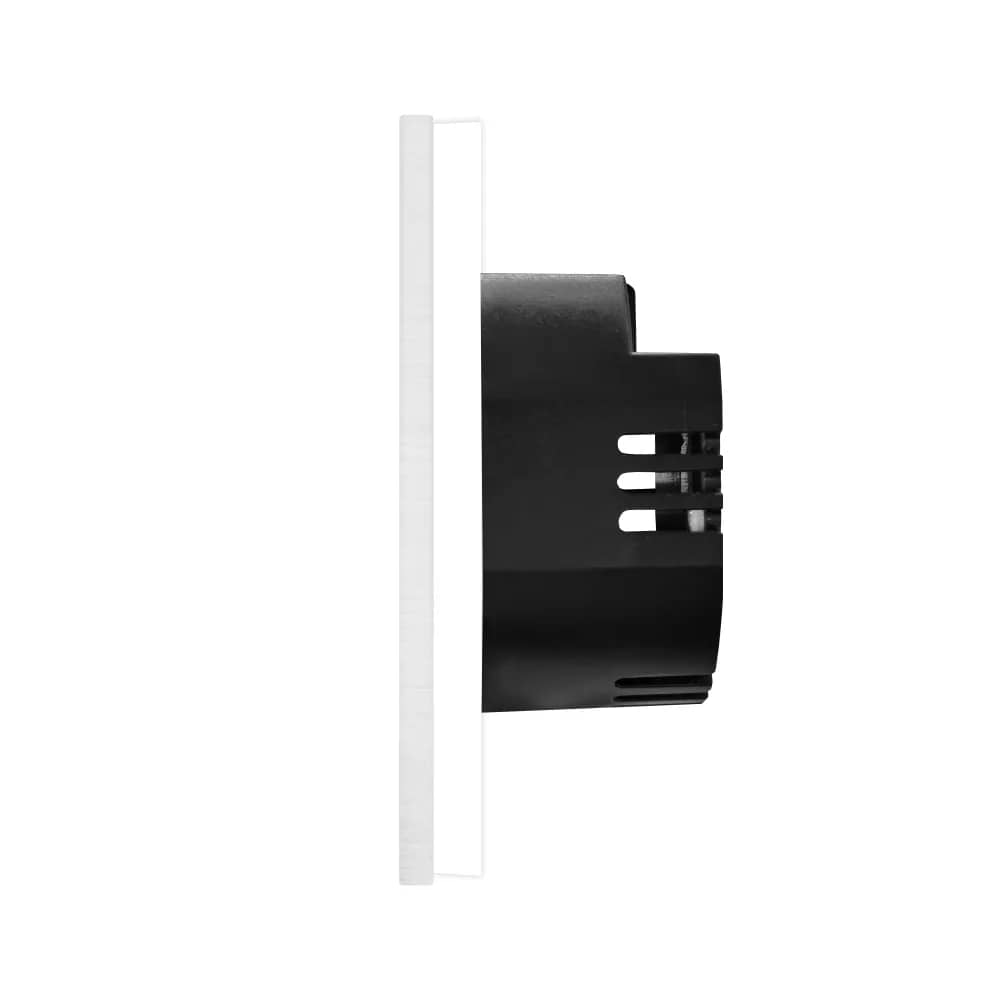

Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – Fade-Resistant Finish
02

Fade-Resistant Finish

The surface does not discolour, so the elegant design stays intact.

Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – Structure
03

Structure

The button is made up of three main parts.

  • Elegant glass panel with aluminium frame
  • Switch module
  • Metal mounting frame
  • Screw fixing system (60 mm spacing)
Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – Dimensions
04

Dimensions

  • Front panel: 86 mm x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
  • Screw fixing spacing: 60 mm
Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – Technical Data
05

Technical Data

  • Rated operational voltage: 110V ~ 240V AC
  • Capability allowance: -15% ~ +10%
  • Load power: 3-800W/gang, 1000W total
  • Working temperature: -20°C ~ +70°C
  • Operating frequency: 50/60Hz
  • Energy consumption: ≤ 0.2W
  • Life time: 100,000 times
  • Markings: CE, FC, RoHS
Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – Wiring Diagram
06

Wiring Diagram

Connect live (L) to terminal L; terminal L1 connects to the doorbell, which is also connected to neutral (N). Cut off the power before installation and removal.

  • Live (L) → terminal L
  • Terminal L1 → doorbell → neutral (N)
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Click the front panel into place.

In detail

Luxion Touch Doorbell Button – Momentary, Glass Panel with Aluminium Frame – detail 1
