Luxion

Luxion Single Socket with Protective Cover and Aluminium Frame

SKU: LX-1MP049A-W

AED 33

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion single wall socket with protective cover, child protection and a durable aluminium frame that won't fade over time.

Product details

The Luxion range of sockets stands out for its compact, elegant and minimalist design. They are versatile and feature child protection. The structure is durable, and the products do not fade over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Single Socket with Protective Cover and Aluminium Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. A single socket with an aluminium frame and protective cover.

  • Single socket
  • Aluminium frame
  • Protective cover
Luxion Single Socket with Protective Cover and Aluminium Frame – Structure
02

Structure

The socket is made up of three parts that fit together for a neat finish.

  • Aluminium frame
  • Socket module
  • Metal frame
  • Screw fixing system (60 mm spacing)

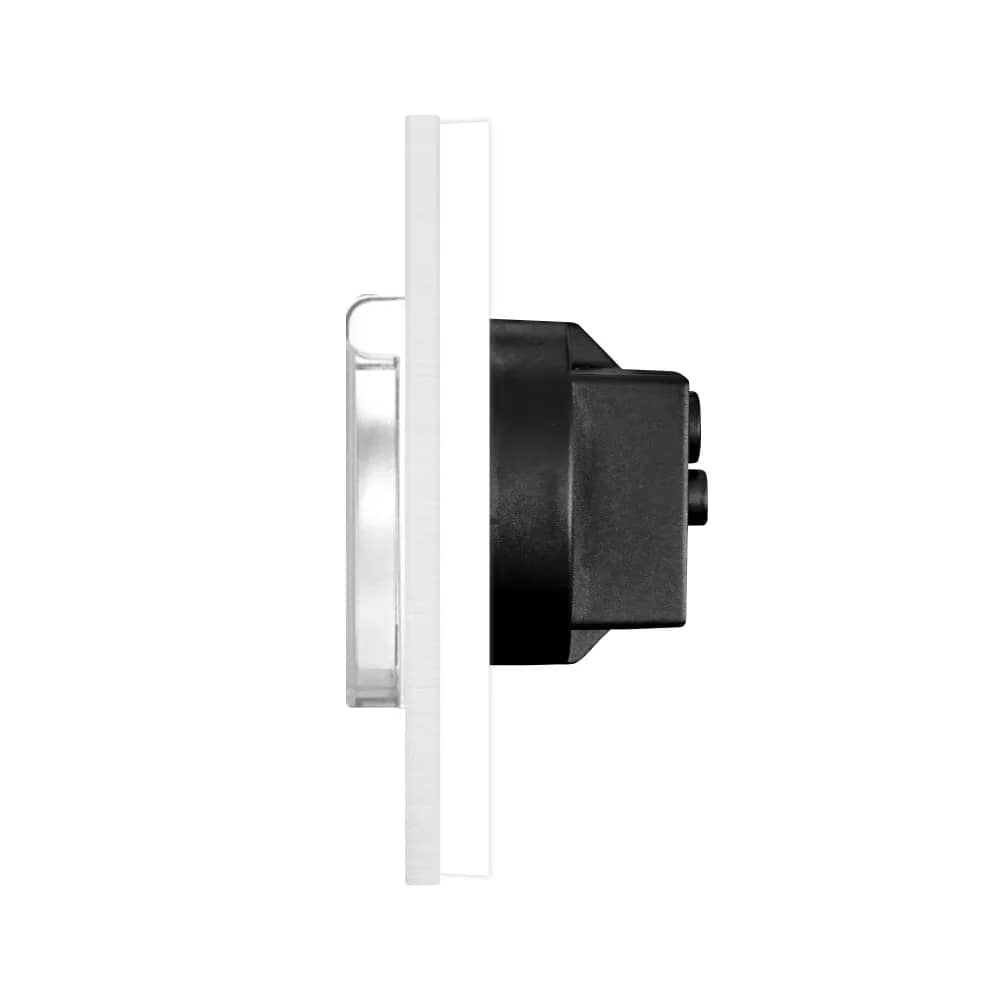

Luxion Single Socket with Protective Cover and Aluminium Frame – Dimensions
03

Dimensions

  • Frame: 86 mm x 86 mm
  • Frame thickness: 9 mm
  • Module depth: 30 mm
  • Module height: 47 mm
  • Fixing screw spacing: 60 mm

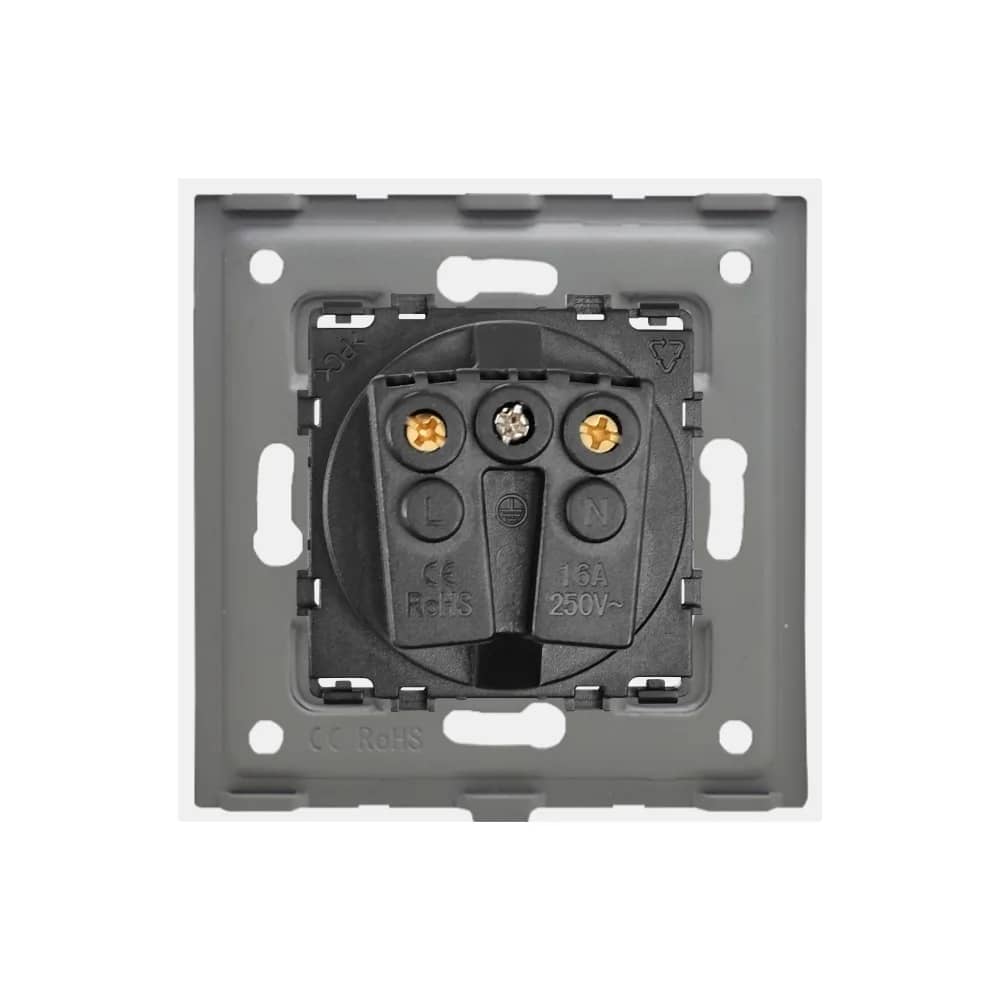

Luxion Single Socket with Protective Cover and Aluminium Frame – Wiring Diagram
04

Wiring Diagram

Connect the three wires to the corresponding terminals on the back of the socket module.

  • Live (L)
  • Neutral (N)
  • Earth line
Luxion Single Socket with Protective Cover and Aluminium Frame – Installation Steps
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.
