Luxion

Luxion Quadruple Wall Socket with Glass Frame

SKU: LX-4MP010G-W

AED 108

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion quadruple wall socket with a glass frame and child protection, available in White, Black, Grey and Gold.

Product details

The Luxion range of sockets stands out for its compact, elegant and minimalist design. They are versatile and feature child protection. The structure is durable, and the products do not fade over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Quadruple Wall Socket with Glass Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

The LUXION quadruple socket with glass frame combines four sockets in one sleek panel. Enjoy the versatility of the new Luxion sockets!

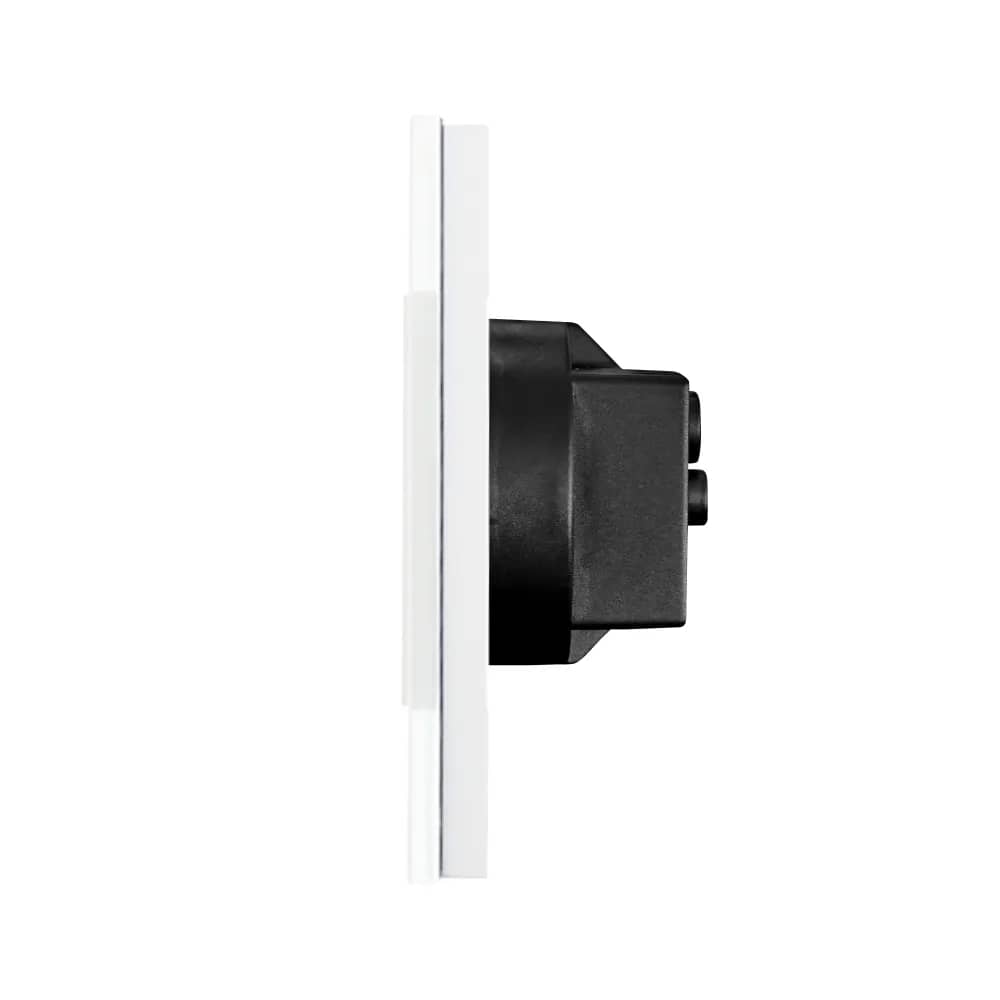

Luxion Quadruple Wall Socket with Glass Frame – Structure
02

Structure

The socket is made up of three main parts and is fixed in place with a screw mounting system.

  • Glass frame
  • Socket modules
  • Metal frame
  • Screw mounting system: 60 mm

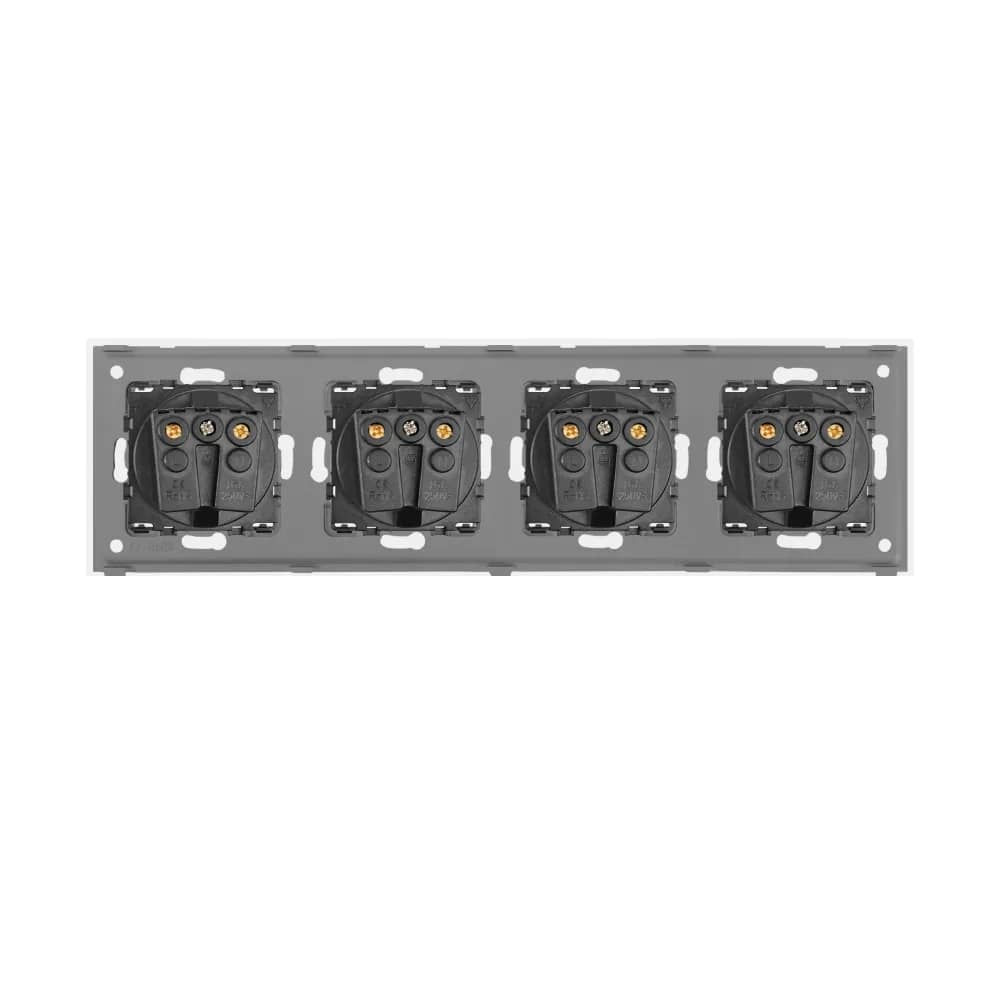

Luxion Quadruple Wall Socket with Glass Frame – Dimensions
03

Dimensions

  • Width: 299 mm
  • Height: 86 mm
  • Front depth: 9 mm
  • Rear depth: 30 mm
  • Module height: 47 mm
Luxion Quadruple Wall Socket with Glass Frame – Wiring Diagram
04

Wiring Diagram

Each of the four socket modules connects to the phase, neutral and earth lines.

  • Phase (L)
  • Neutral (N)
  • Earth line
Luxion Quadruple Wall Socket with Glass Frame – Installation Steps
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the cables and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel (it clicks into place).

In detail

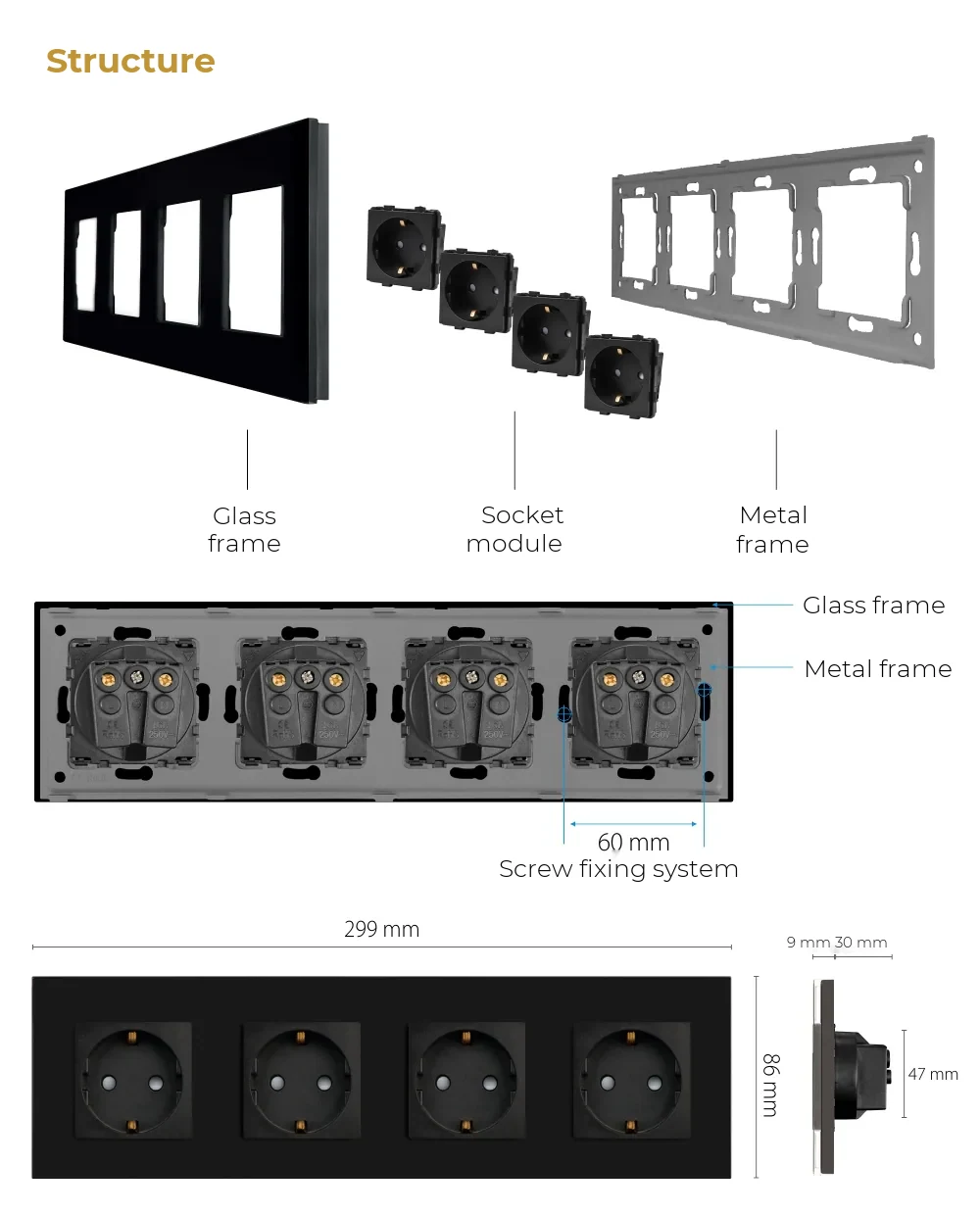

Luxion Quadruple Wall Socket with Glass Frame – detail 1
