Luxion Glass Touch Dimmer Light Switch – 1 Gang 2-Way / Intermediate

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. The LUXION single touch dimmer switch works as a 2-way (stair) or intermediate (cross) switch.

• Important: 2-way switches only work when installed and synchronised with other Luxion 2-way products
• Luxion products DO NOT work with other brands

Key Features

• Touch sensor: extremely precise, identical to a smartphone sensor
• Moisture resistant: can be used in humid environments
• Does not fade: the elegant design stays intact
• Dimmable: a simple touch of the button gradually changes the light intensity
• ON/OFF button that also increases or decreases light intensity

Compatible Bulbs

Use dimmable lamps only.

• Dimmable LED: 300W max.
• Incandescent: 1000W max.
• Halogen: 1000W max.
• RGB smart bulbs: not compatible

Structure

• Elegant glass panel
• Switch module
• Metal frame

Dimensions

• Front panel: 86 mm x 86 mm
• Panel thickness: 9 mm

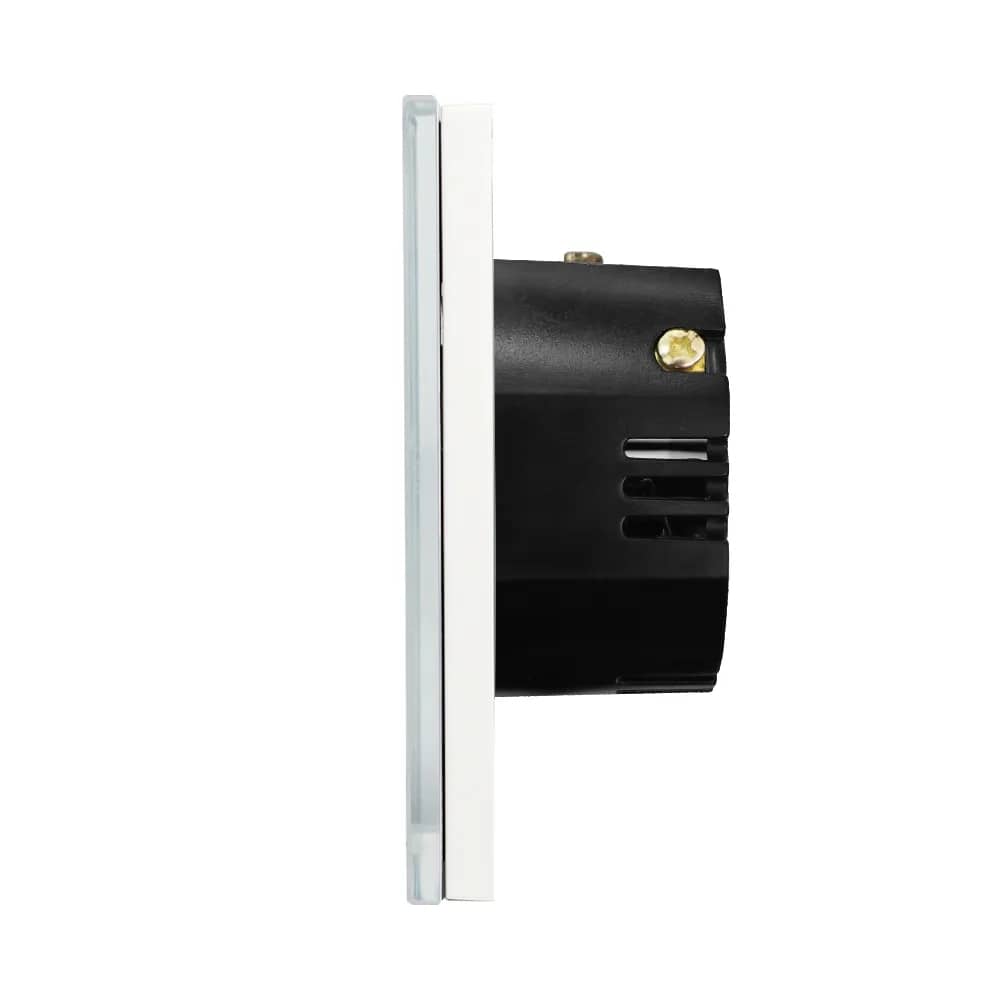

• Module depth: 26 mm
• Module height: 49 mm
• Screw fixing spacing: 60 mm

Wiring

Wiring diagram shows two switches connected as 2-way / intermediate, with live (L) and neutral (N) wiring to the lamp.

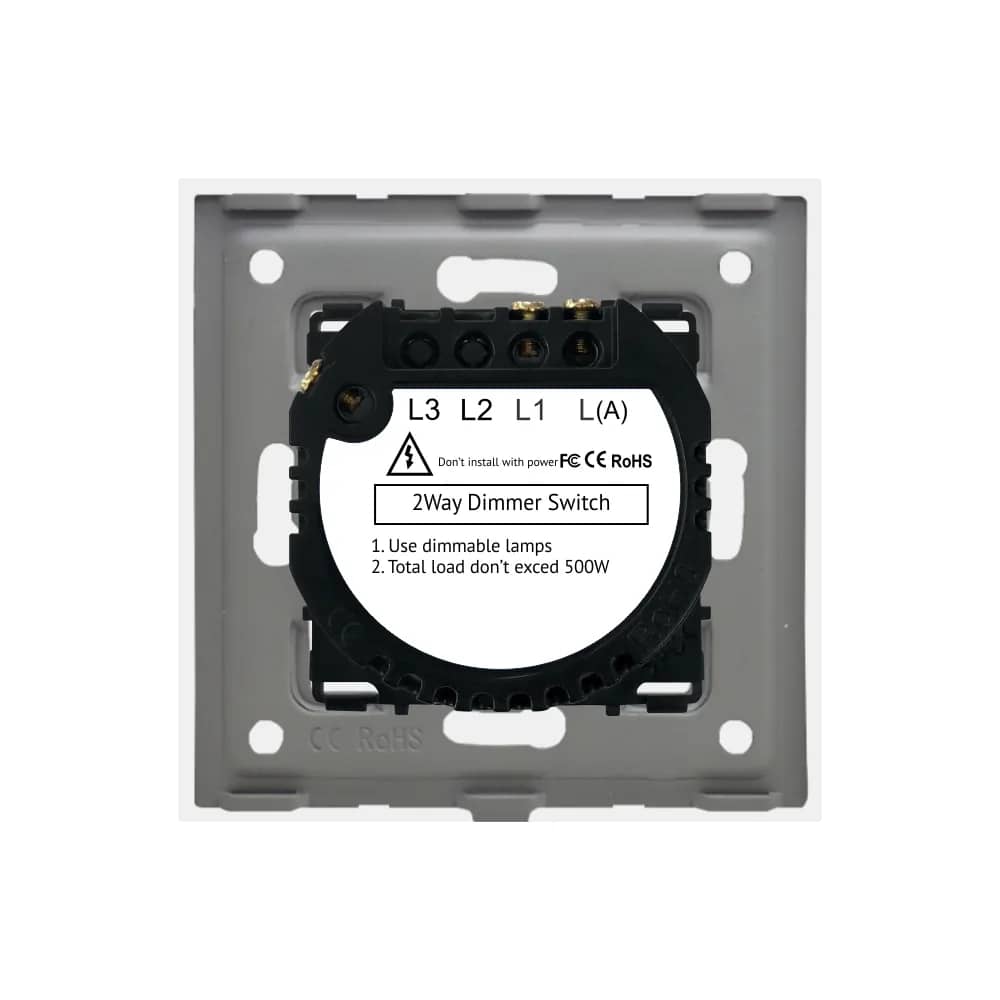

• Terminals: L3, L2, L1, L(A)
• Do not install with power on
• Total load must not exceed 500W (as printed on module)
