Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This mechanical dimmer switch comes with a glass frame for a clean, modern look.
Luxion
Luxion Mechanical Dimmer Switch with Glass Frame
SKU: LX-MP-DM01GF-W
AED 41
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion mechanical dimmer switch with a glass frame – compact, elegant and minimalist, available in White, Black, Grey and Gold.
Product details
Luxion mechanical switches stand out for their compact, elegant and minimalist design. They are practical, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02

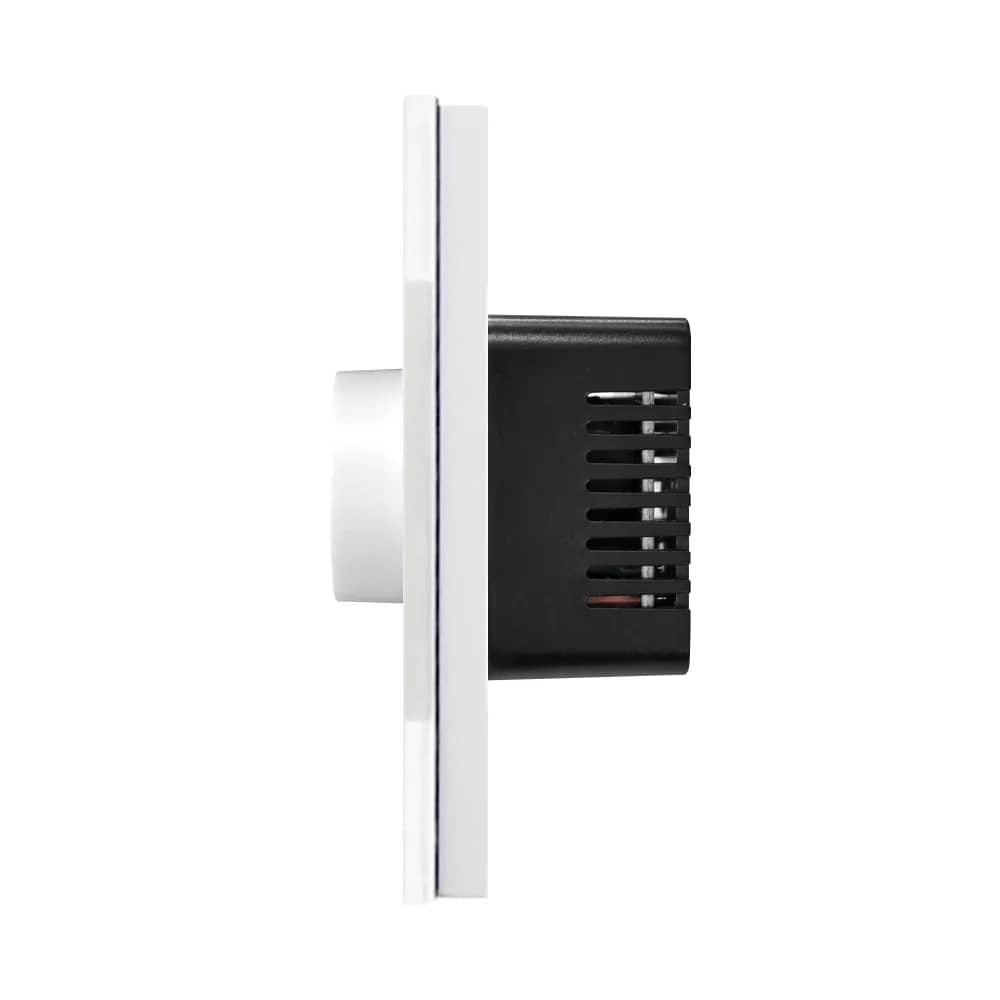

Adjustable Light Intensity
With the dimmer switch you can change the intensity of the light in your room. You can also adjust the intensity using the side button on the module.
03
Compatible Bulbs
- Dimmable LED CFL: 400W max.
- Dimmable LED: 80W max.
- Halogen and incandescent: 500W max.
04
Structure
- Glass frame
- Dimmer module
- Metal frame
- Screw fixing system: 60 mm spacing
05

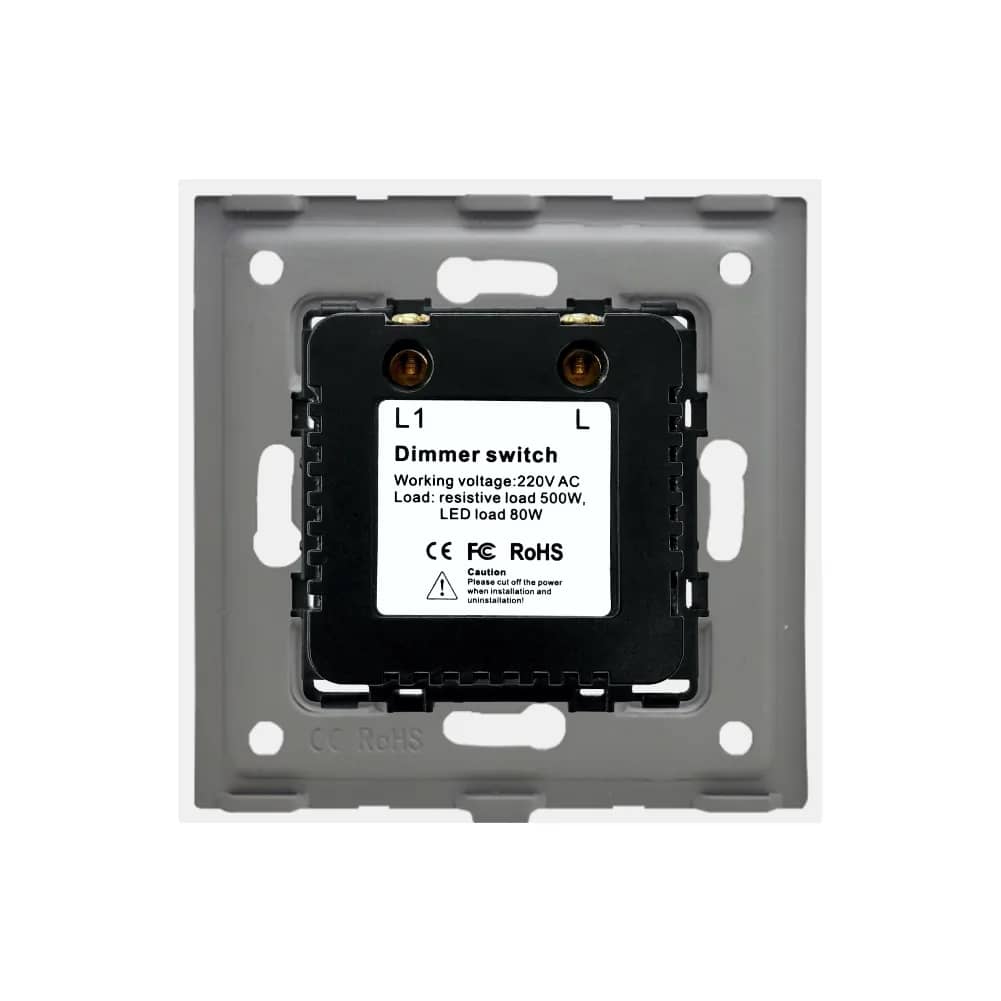

Technical Data
- Working voltage: 220V AC
- Load: resistive load 500W, LED load 80W
- Terminals: L1 (to light), L (live)
- Dimensions: 86 mm x 86 mm
- Depth: 9 mm, 23 mm, 12 mm
- Module height: 44 mm
- Markings: CE, FC, RoHS
06
Wiring Diagram
Connect the live wire (L) to the L terminal and the light to the L1 terminal; the light's other wire connects to neutral (N). Caution: please cut off the power when installing and uninstalling.
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
