Luxion

Luxion Mechanical Blinds Switch with Glass Frame

SKU: LX-MP031GF-W

AED 25

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion mechanical switch for blinds with a glass frame, available in White, Black, Grey and Gold.

Product details

The Luxion mechanical blinds switch stands out for its compact, elegant and minimalist design. Luxion products are practical, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Mechanical Blinds Switch with Glass Frame – Wiring Diagram
01

Wiring Diagram

The banners show how to connect this mechanical blinds switch: the live wire (L - 220V) goes to the input terminals, while the two outputs drive the blinds motor down and up.

  • L (220V): live input
  • Jos: output for blinds down (▼)
  • Sus: output for blinds up (▲)
Luxion Mechanical Blinds Switch with Glass Frame – Technical Data
02

Technical Data

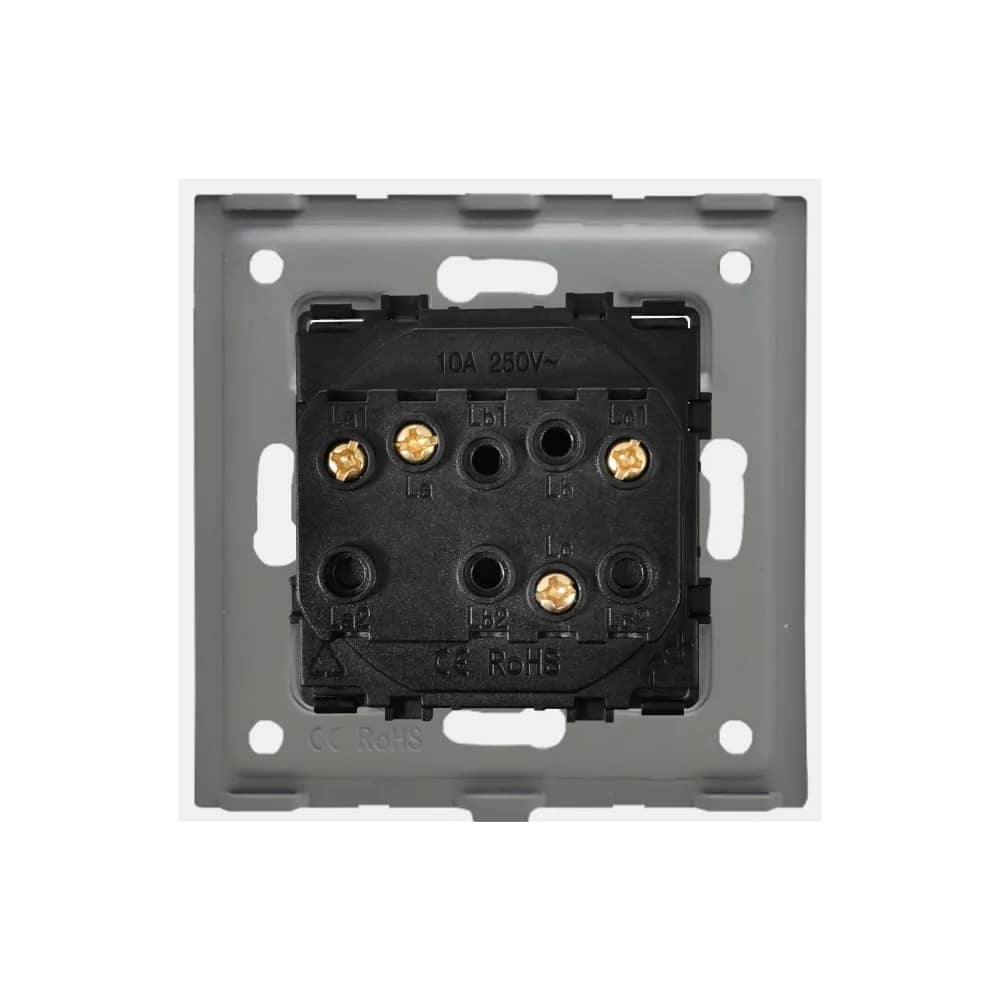

  • Rating: 10A 250V~
  • Supply: L - 220V
  • Markings: CE, RoHS
