Luxion

Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame

SKU: LX-MP007GF-W

AED 28

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion mechanical 3 gang 2-way (staircase) light switch with a glass frame, in White, Black, Grey or Gold.

Product details

Luxion mechanical light switches stand out for their compact, elegant and minimalist design. They are practical, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

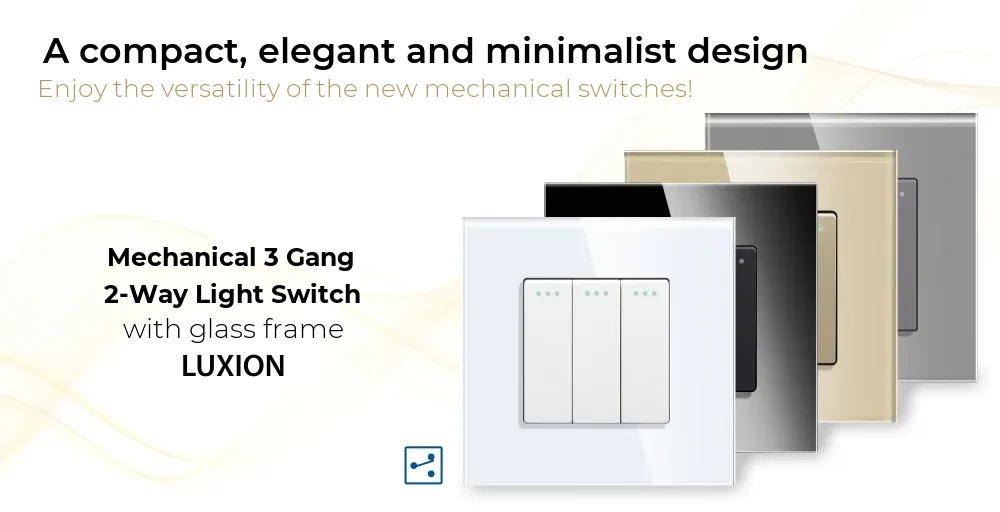

Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame – A Compact, Elegant and Minimalist Design
01

A Compact, Elegant and Minimalist Design

The LUXION triple 2-way mechanical switch with glass frame lets you enjoy the versatility of the new mechanical switches.

  • 3-gang mechanical switch
  • 2-way (staircase) switching
  • Glass frame
Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame – Ideal For
02

Ideal For

  • Office
  • Bedroom
  • Kitchen
  • Living room
Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame – Does Not Discolour
03

Does Not Discolour

The elegant design stays intact.

Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame – Structure
04

Structure

  • Glass frame
  • Switch module
  • Metal frame
  • Screw fixing system: 60 mm
Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame – Dimensions
05

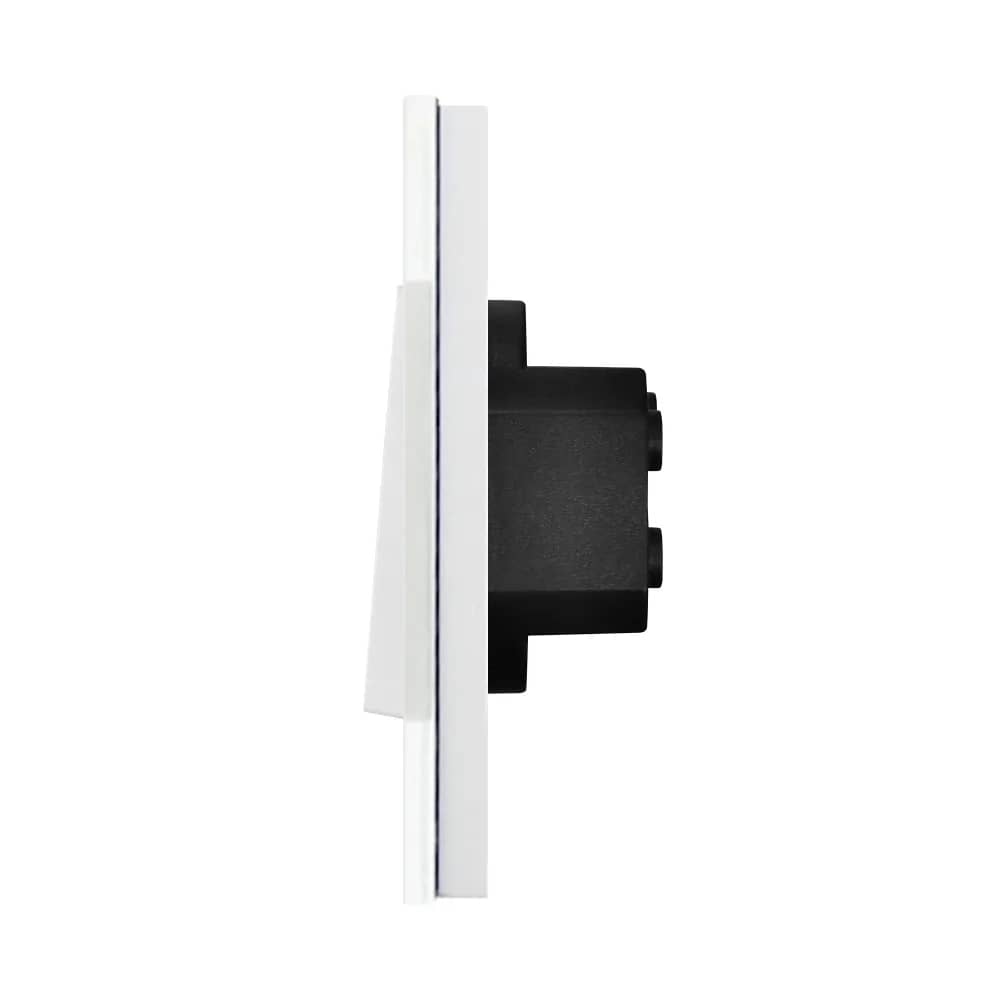

Dimensions

  • Width: 86 mm
  • Height: 86 mm
  • Depth (front): 9 mm
  • Depth (rear): 20 mm
  • Rear module height: 49 mm
  • Panel thickness: 5 mm
Luxion Mechanical 3 Gang 2-Way Light Switch with Glass Frame – Wiring Diagram
06

Wiring Diagram

2-way (staircase) wiring for three lights using two switches, connected to Neutral (N) and Live (L).

  • Neutral (N)
  • Live (L)
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
