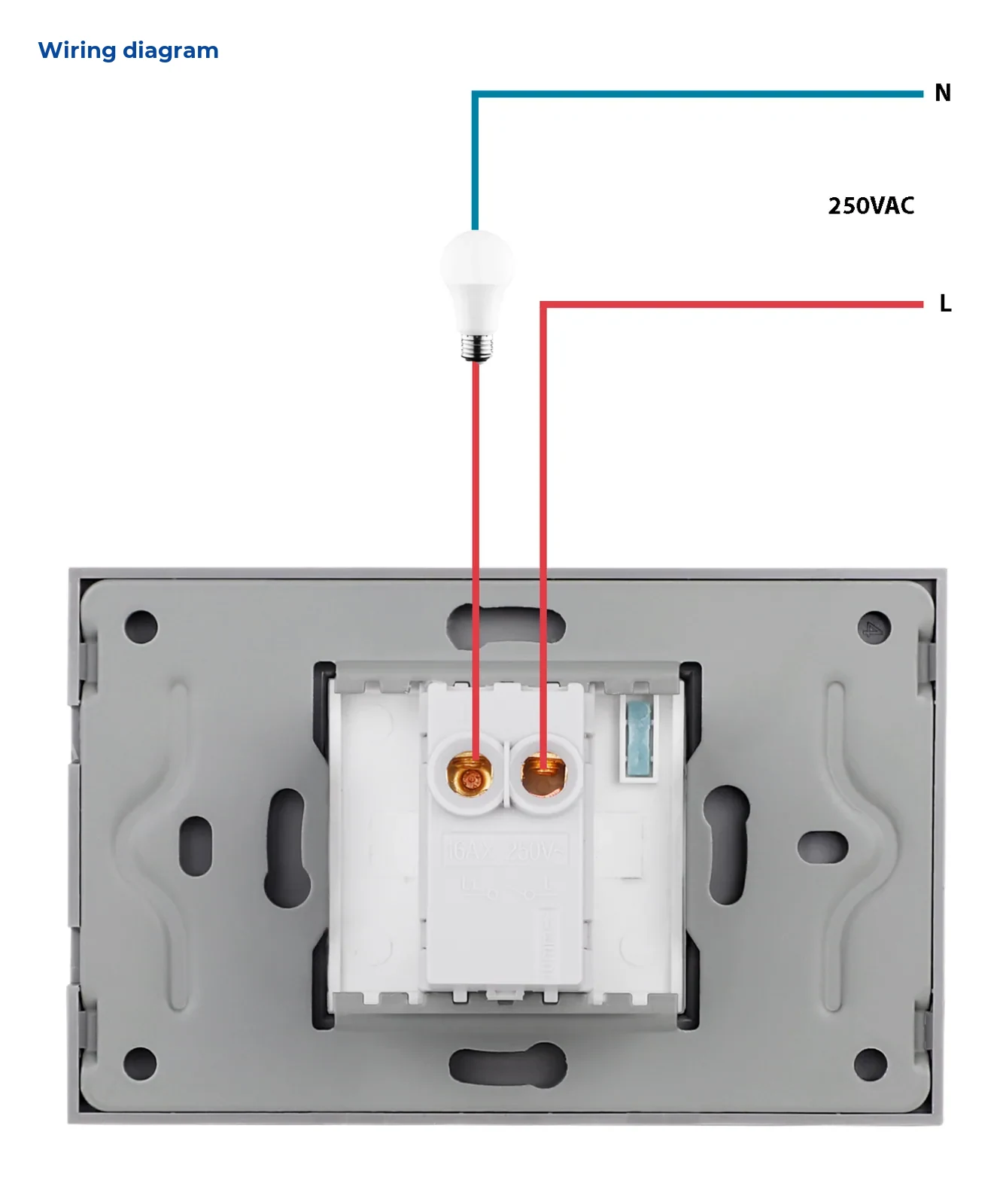

Wiring diagram
The switch connects in series with the light on the live line: the live wire (L) goes to one terminal of the switch, and the second terminal goes to the light, which is then connected to neutral (N).
- Supply voltage: 250VAC
- Switch module rating: 16AX 250V~
- Terminals: L (live in) and L1 (output to light)
