Luxion Marble Touch Light Switch – 3 Gang 2-Way / Intermediate, Series A

SKU: LX-MT-A302M-W

AED 125

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Luxion Series A 3 gang 2-way/intermediate touch switch in natural marble, for Luxion modules – available in White, Grey and Black.

Product details

Luxion 3 gang 2-way (staircase) / intermediate touch light switch in marble, compatible only with Luxion modules. It stands out with its premium, elegant and minimalist design. Made from natural marble, this model adds an extra touch of refinement and exclusivity, making it ideal for modern interiors, luxury residences, hotels or premium offices. Manufactured from quality materials, durable and practical, it offers functionality and comfort, perfectly complementing a sophisticated décor.

Highlights

2-Way and Intermediate Wiring

The wiring diagrams show the switch modules used in a 2-way (two locations) or intermediate (three locations) configuration on a ~220V supply. Each module is labelled "Staircase Switch" (Cap Scara).

Two-location setup: two modules linked via the L4 (Cap Scara) terminal
Three-location setup: three modules linked via the L4 (Cap Scara) terminal
Lights connected to outputs L1, L2 and L3 of the main module, with neutral (N) to the lamps
Live (L) connected to the L terminal of each module

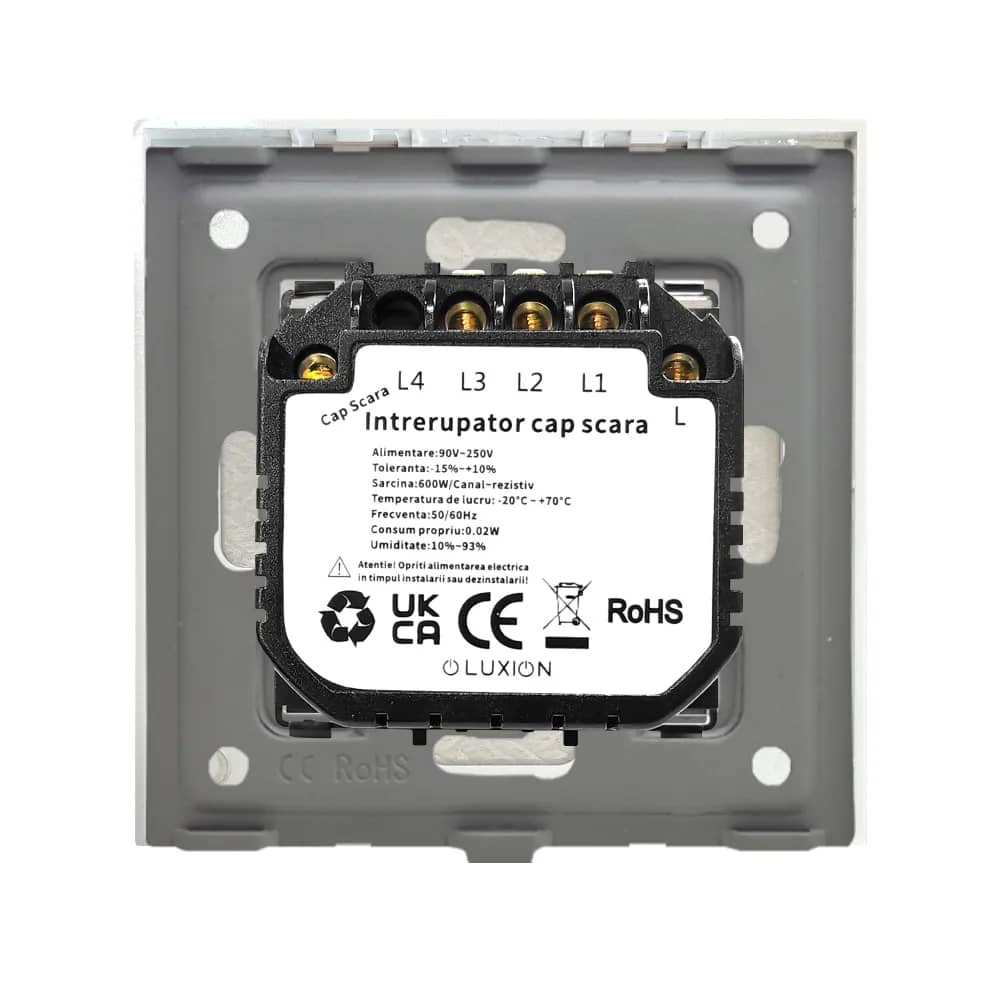

Terminals: L4, L3, L2, L1, L

Technical Data

Power supply: 90V ~ 250V
Load: 600W / channel – resistive
Operating temperature: -20°C ~ +70°C
Frequency: 50/60Hz
Standby consumption: 0.02W
Humidity: 10% ~ 93%
Markings: UKCA, CE, RoHS

Safety Notice

Caution: switch off the power supply during installation or removal.
