01

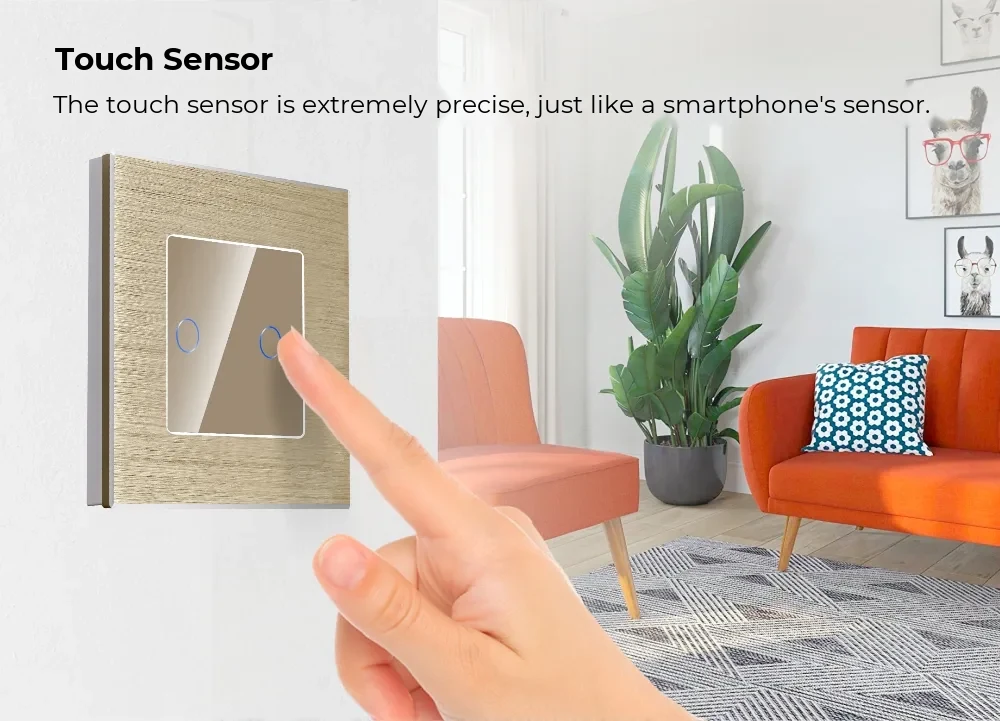

Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
Luxion
Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang 2-Way / Intermediate, Series A
SKU: LX-MT-A202A-W
AED 106
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Series A 2 gang 2-way/intermediate touch light switch with tempered glass panel and aluminium frame – precise, elegant and no pairing required.
Product details
Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
No pairing required
Highlights
02

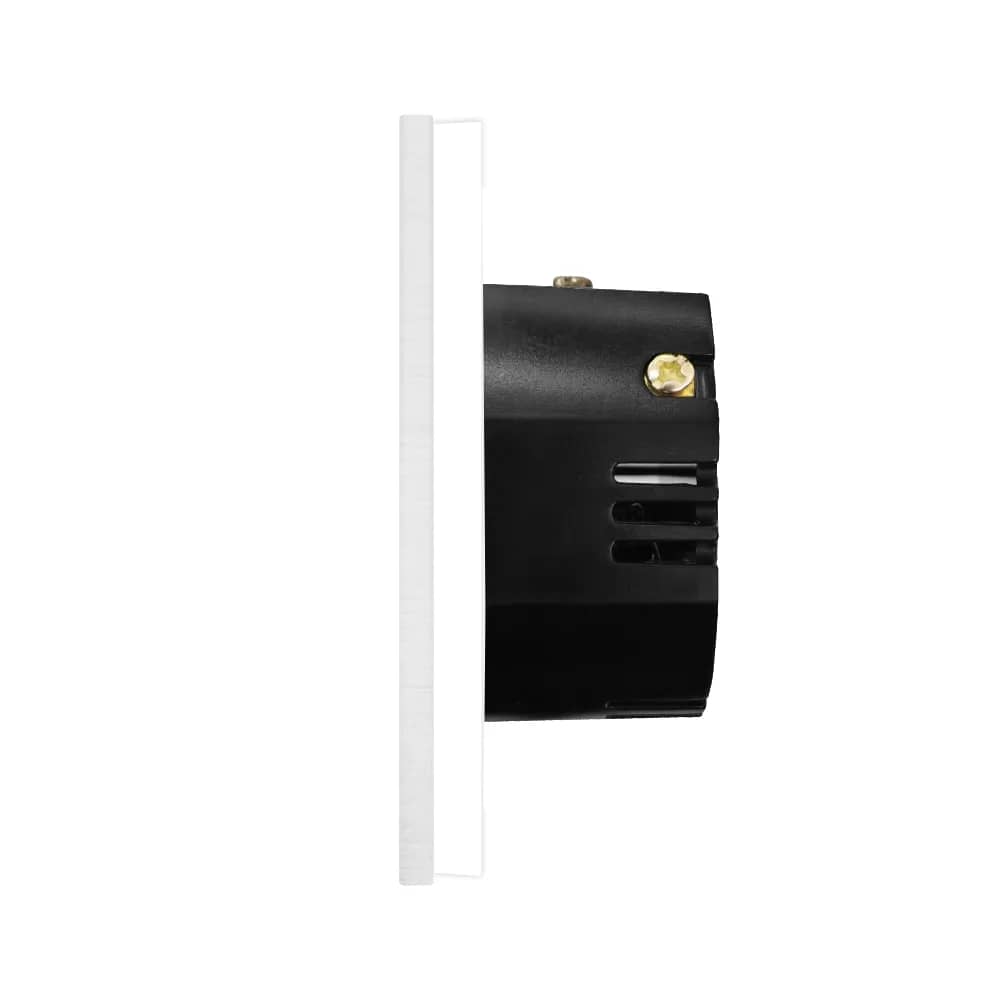

Moisture Resistant
Suitable for use in humid environments.
03
Fade-Resistant Finish
The elegant design stays intact over time.
04
Installation Diagram
Fit the switch in four simple steps.
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Mount the front panel (it clicks into place).
05
Wiring Configurations
The wiring diagrams show the switch used as a 2-way (staircase) switch with two units, and as part of a 3-location setup with an intermediate unit, connected to ~220V (L and N).
- Terminals: L, L1, L2, L3, L4
- 2-way setup: two switch modules
- Intermediate setup: three switch modules
06
Technical Data
- Type: 2-way (staircase) switch
- Power supply: 90V ~ 250V
- Load: 600W / channel – resistive
- Operating temperature: -20°C ~ +70°C
- Frequency: 50/60Hz
- Standby consumption: 0.02W
- Humidity: 10% ~ 93%
- Markings: UKCA, CE, RoHS
07
Safety Note
Switch off the mains power during installation or removal.
