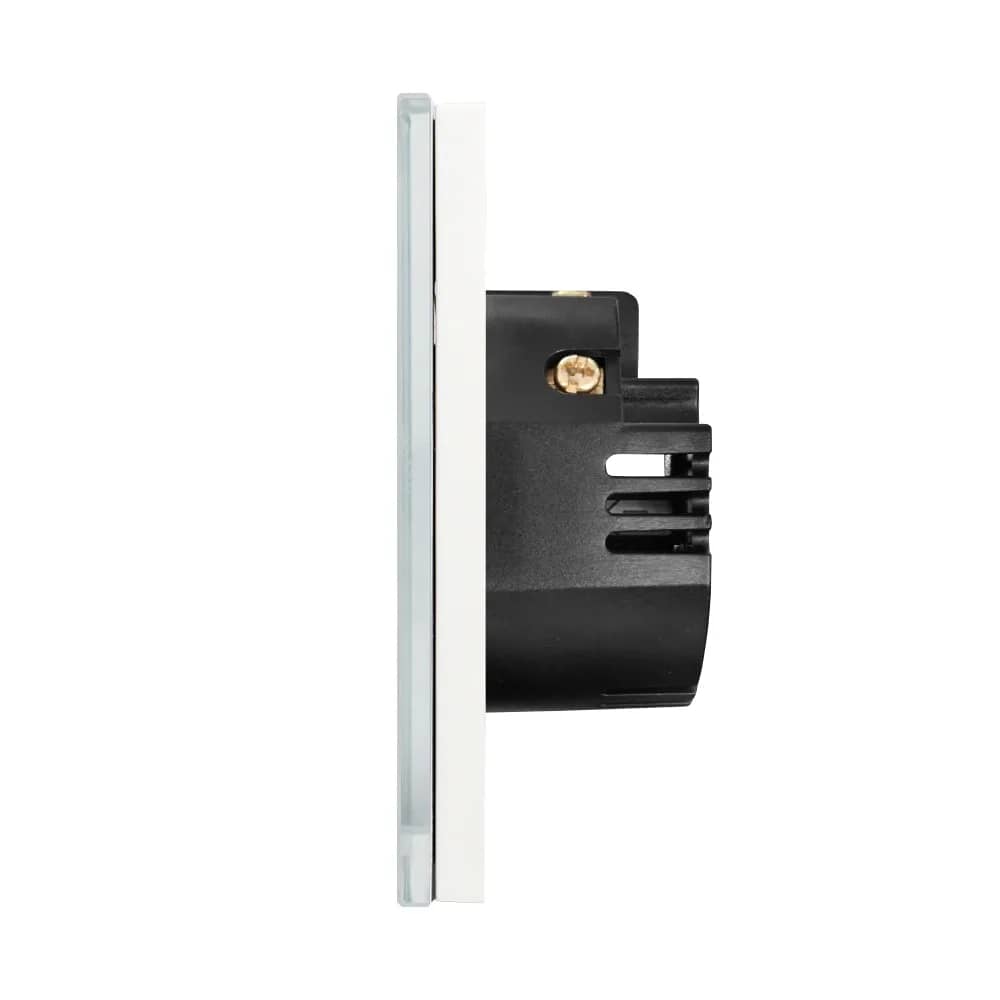

Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – White — image 3

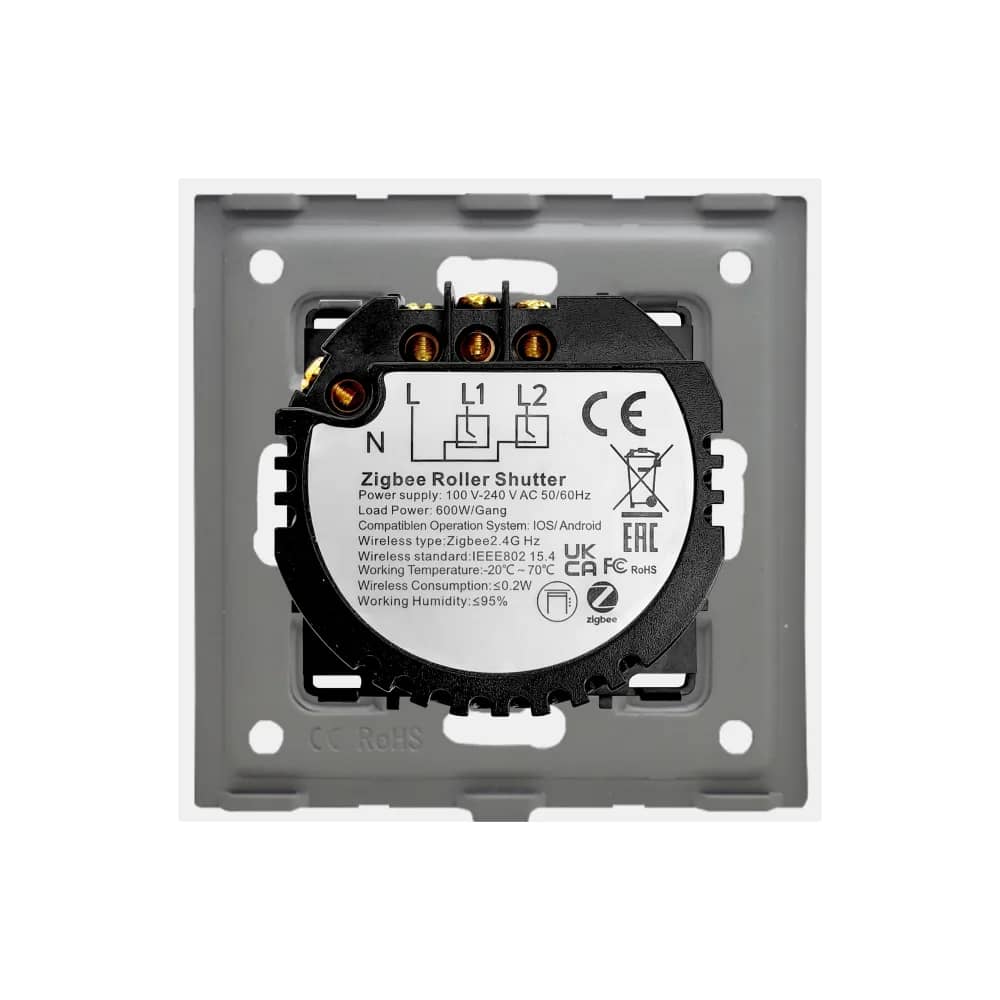

Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – White — image 4
1/4
Luxion

Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya

SKU: LX-ZT-J201G-W

AED 117

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Elegant Luxion tempered-glass touch switch for roller shutters, using the Zigbee Tuya protocol. Requires a neutral wire and the Zigbee hub.

Product details

The Luxion range of switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable, and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

No pairing required

Requires a neutral wire

Works with the Luxion Zigbee Hub

Highlights

Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

The Luxion glass touch roller shutter switch uses the Zigbee protocol. Enjoy the versatility of the new Luxion products.

  • Touch controls for open, stop and close
  • Available in white, black, gold and grey
  • Zigbee protocol
Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – Structure
02

Structure

The switch is made up of three main parts.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system (60 mm)
Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – Technical Data
03

Technical Data

  • Power supply: 100 V-240 V AC 50/60Hz
  • Load power: 600W/Gang
  • Compatible operating system: iOS/Android
  • Wireless type: Zigbee 2.4 GHz
  • Wireless standard: IEEE802.15.4
  • Working temperature: -20°C ~ 70°C
  • Wireless consumption: ≤0.2W
  • Working humidity: ≤95%
  • Front panel dimensions: 86 x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – Wiring Diagram
04

Wiring Diagram

Connect the neutral (N) and live (L) wires to the N and L terminals, and the two motor wires to the L1 and L2 terminals.

  • N: Neutral
  • L: Live
  • L1 / L2: Motor
Luxion Glass Touch Roller Shutter Switch – Zigbee Tuya – Installation Steps
05

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
