Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This double touch switch combines a glass panel with an aluminium frame for a clean, modern look.
Luxion
Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, 500W
SKU: LX-ST-201A-W
AED 74
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang glass touch light switch with aluminium frame, 500W – compact, minimalist design with a precise smartphone-like touch sensor.
Product details
Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable, and the switches do not fade over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Moisture Resistant
Suitable for use in humid environments.
04
Does Not Discolour
The elegant design stays intact over time.
05
Structure
- Elegant glass panel with aluminium frame
- Switch module
- Metal mounting frame
- Screw fixing system (60 mm between fixing points)
06

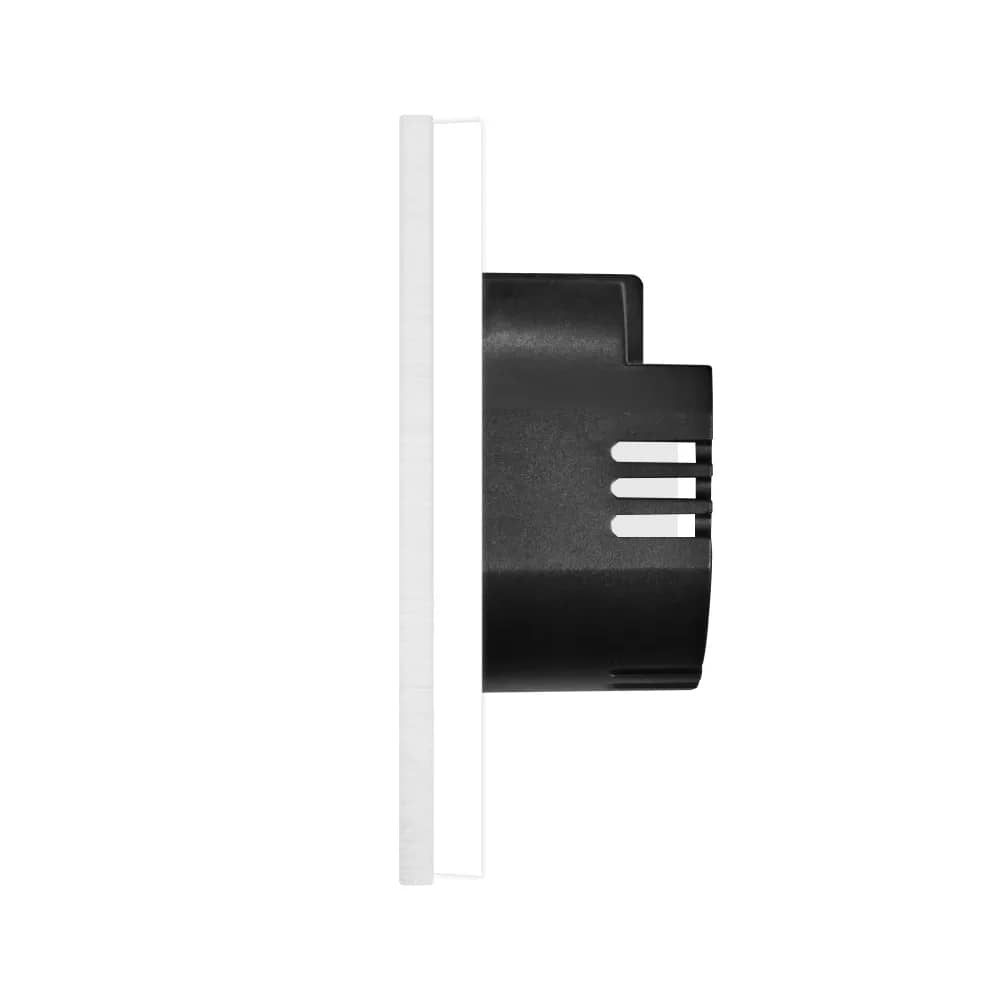

Dimensions
- Front panel: 86 mm x 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
- Screw fixing distance: 60 mm
07

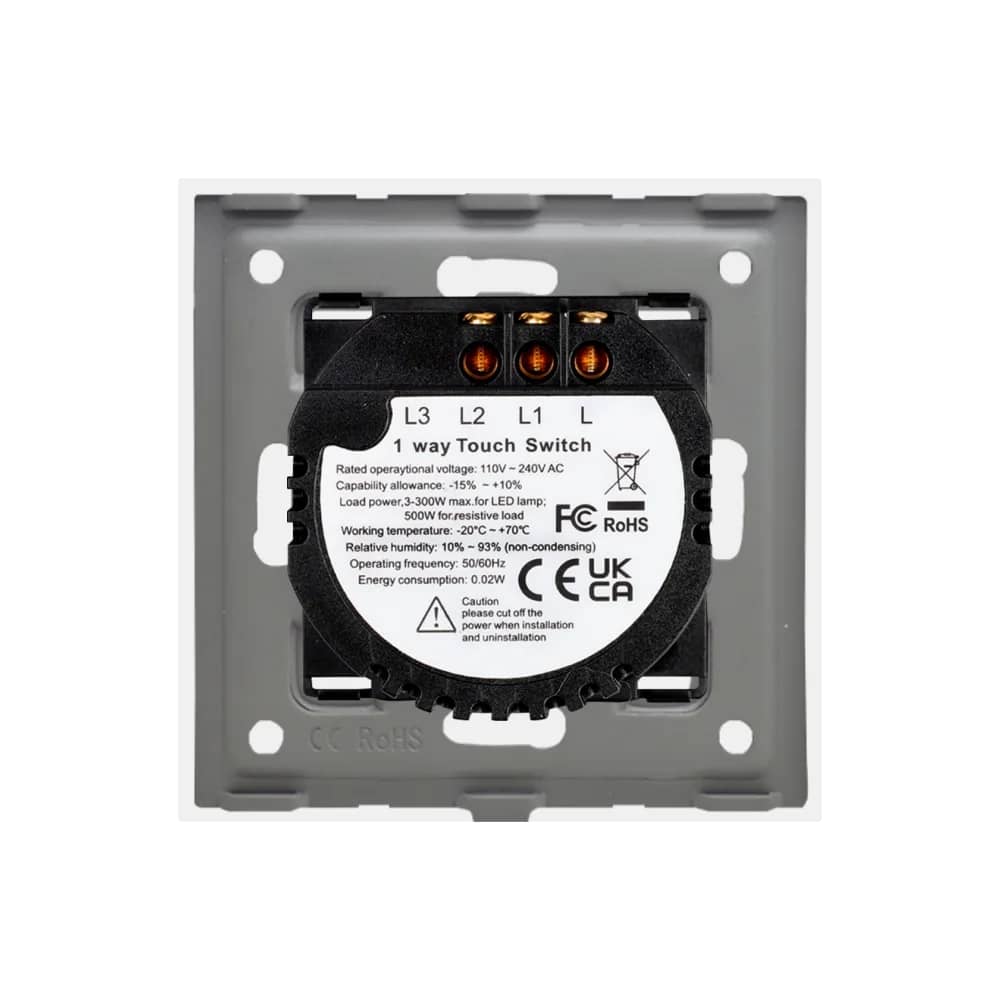

Technical Data
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3–300W max for LED lamp, 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
08
Wiring Diagram
Connect the live wire (L) to the L terminal, and the two lamp circuits to L1 and L2; the lamps are connected to neutral (N). Switch off the power before installation and removal.
- L: Live
- L1: Light circuit 1
- L2: Light circuit 2
- N: Neutral (to the lamps)
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Click the front panel into place.
