Luxion

Luxion Glass Touch Light Switch – 4 Gang, 500W

SKU: LX-ST-401G-W

AED 69

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 4 gang tempered-look glass touch light switch, 500W, with a precise smartphone-style sensor, in White, Black, Grey or Gold.

Product details

Luxion 4 gang glass touch light switch. The Luxion range of switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. A practical product made from quality materials and built to last, bringing convenience and comfort to your home.

Highlights

Luxion Glass Touch Light Switch – 4 Gang, 500W – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion switches. The LUXION Quadruple Touch Switch combines a compact footprint with a clean, minimalist look.

  • 4-gang touch control
  • Shown in white, black, gold and grey finishes

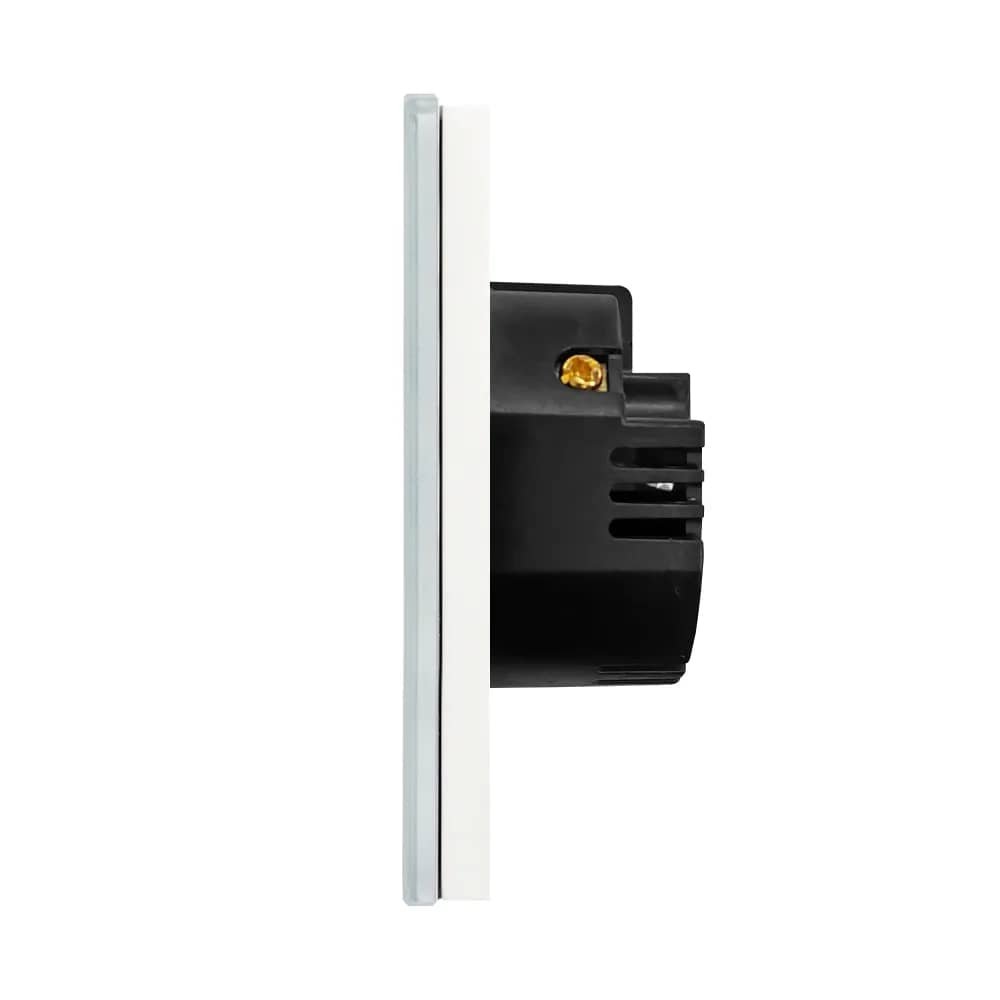

Luxion Glass Touch Light Switch – 4 Gang, 500W – Precise Touch Sensor
02

Precise Touch Sensor

The touch sensor is extremely precise, just like the sensor on a smartphone.

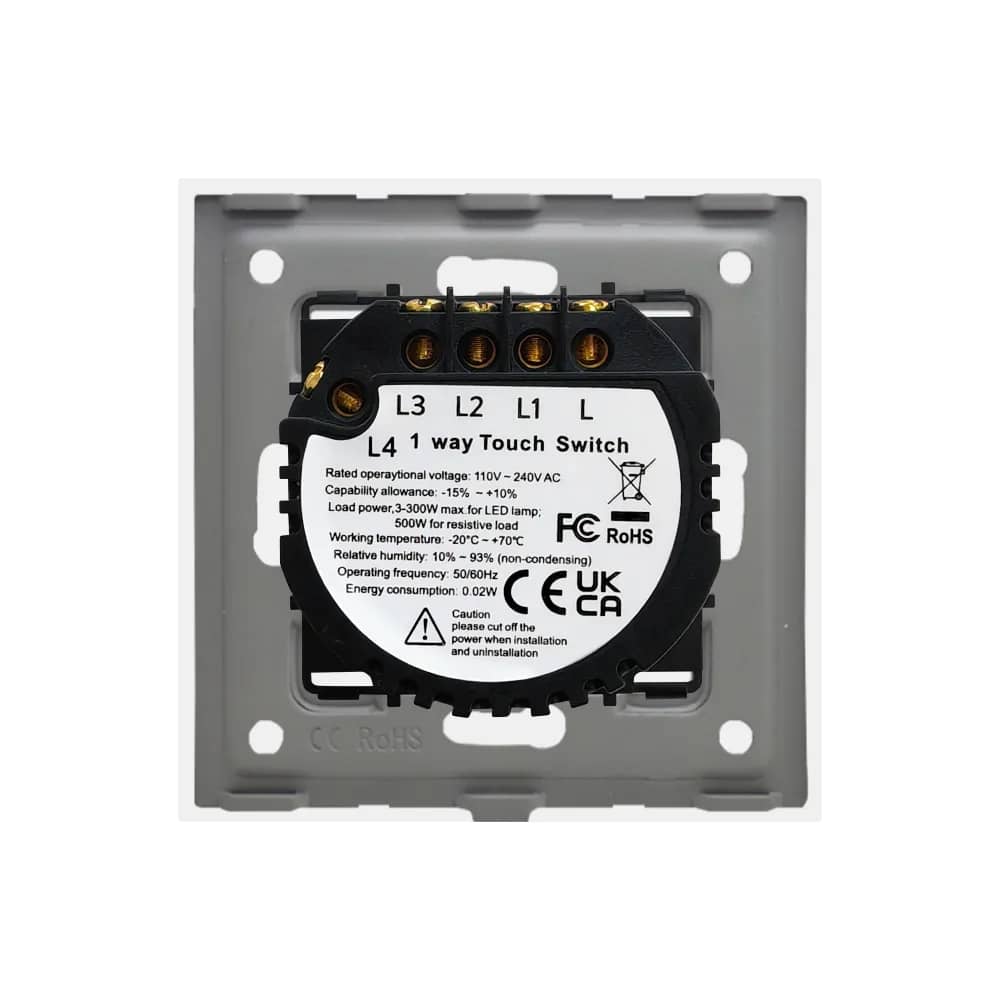

Luxion Glass Touch Light Switch – 4 Gang, 500W – Structure
03

Structure

The switch is made up of three main parts.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system with 60 mm spacing
Luxion Glass Touch Light Switch – 4 Gang, 500W – Dimensions
04

Dimensions

  • Panel: 86 mm x 86 mm
  • Glass panel thickness: 9 mm
  • Depth behind the panel: 26 mm
  • Module height: 49 mm
  • Fixing screw spacing: 60 mm
Luxion Glass Touch Light Switch – 4 Gang, 500W – Technical Data
05

Technical Data

As printed on the switch module label (1 way Touch Switch).

  • Rated operating voltage: 110V – 240V AC
  • Capability allowance: -15% ~ +10%
  • Load power: 3–300W max for LED lamps, 500W for resistive load
  • Working temperature: -20°C ~ +70°C
  • Relative humidity: 10% ~ 93% (non-condensing)
  • Operating frequency: 50/60Hz
  • Energy consumption: 0.02W
  • Markings: FC, RoHS, CE, UKCA
Luxion Glass Touch Light Switch – 4 Gang, 500W – Wiring Diagram
06

Wiring Diagram

Connect the live (L) wire to the L terminal and each of the four lighting circuits to terminals L1, L2, L3 and L4; the lamps return to neutral (N). Always switch off the power before installation and removal.

  • L: live input
  • L1–L4: outputs to the four lighting circuits
  • N: neutral (connected to the lamps)
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel – it clicks into place.

In detail

Luxion Glass Touch Light Switch – 4 Gang, 500W – detail 1
