Luxion

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433

SKU: LX-MT-R301A-W

AED 133

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 3 gang touch light switch with tempered glass panel and aluminium frame, RF433 remote-ready, in White, Gold, Grey or Black.

Product details

Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

It can be controlled with the Luxion RF remote control.

Please note: the remote control is sold separately!

Highlights

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. This LUXION triple touch switch features an aluminium frame and RF433 support.

  • 3-gang touch switch
  • Aluminium frame
  • RF433 compatible
Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – Touch Sensor
02

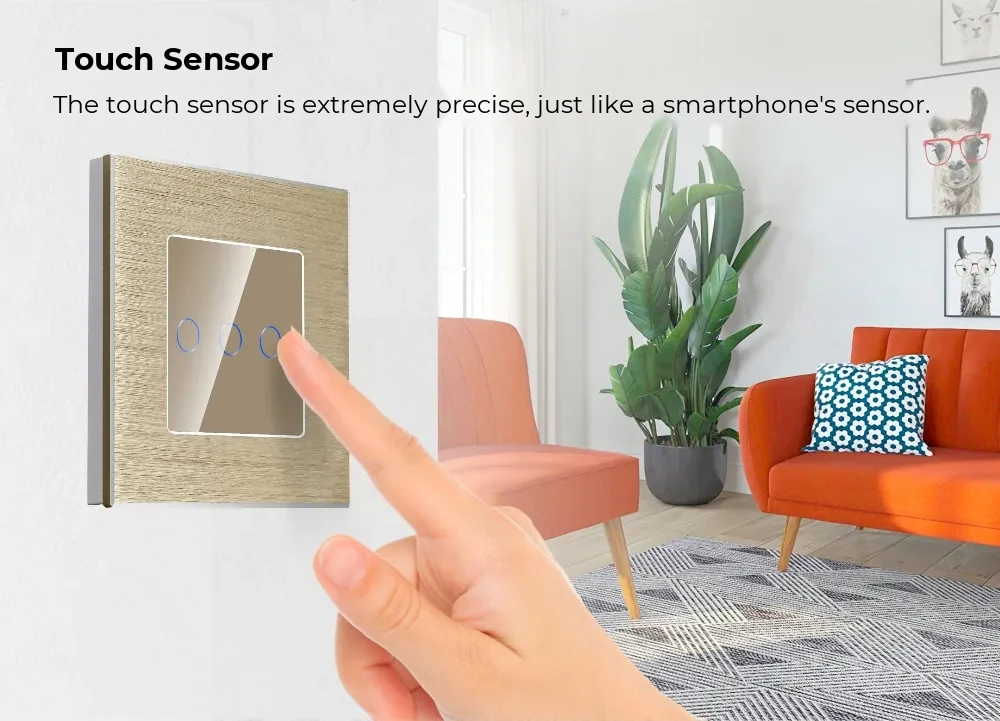

Touch Sensor

The touch sensor is extremely precise, identical to the sensor of a smartphone.

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – Moisture Resistant
03

Moisture Resistant

Can be used in humid environments.

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – RF Remote Control
04

RF Remote Control

With an RF remote control you can switch Luxion RF switches on or off. Please note: the remote control shown is for illustration only and is NOT included in the price; it must be purchased separately.

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – Structure
05

Structure

  • Elegant glass panel with aluminium frame
  • Switch module
  • Metal mounting frame
  • Screw fixing system (60 mm spacing)

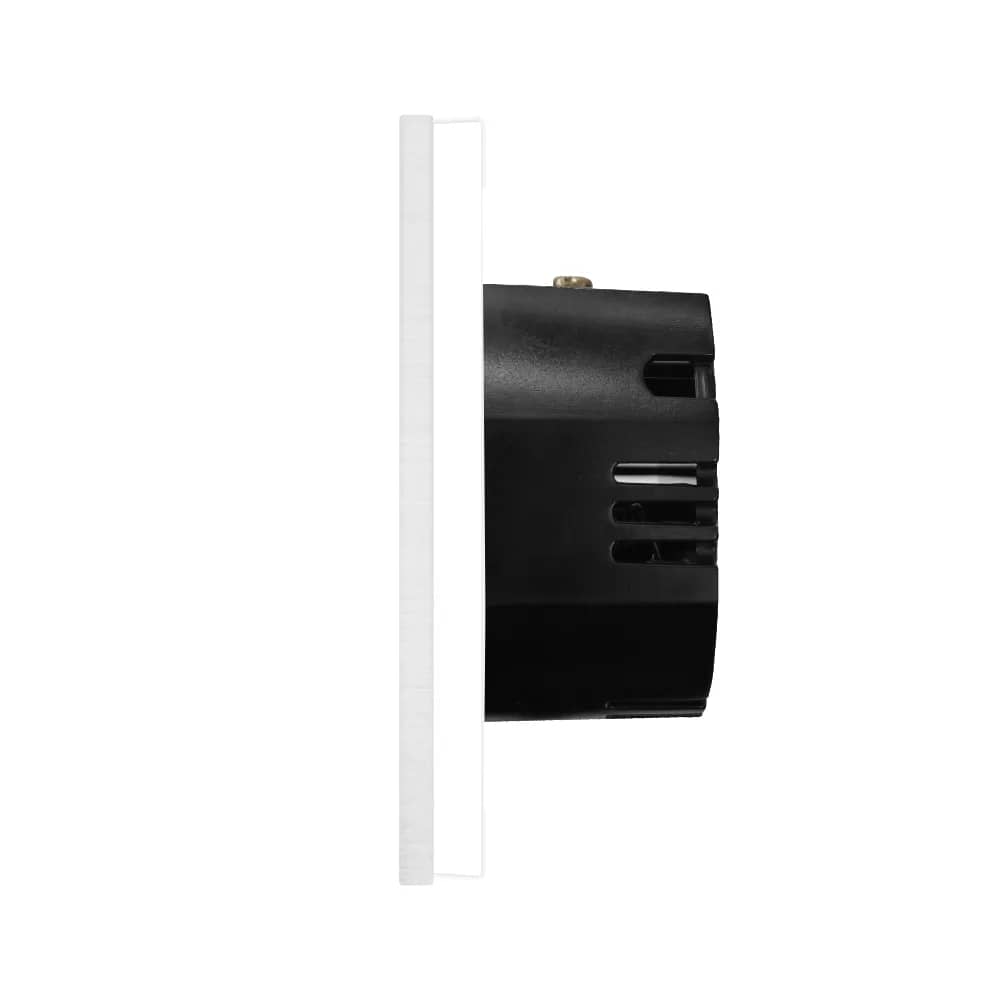

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – Dimensions
06

Dimensions

  • Front panel: 86 mm x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
  • Screw fixing distance: 60 mm
07

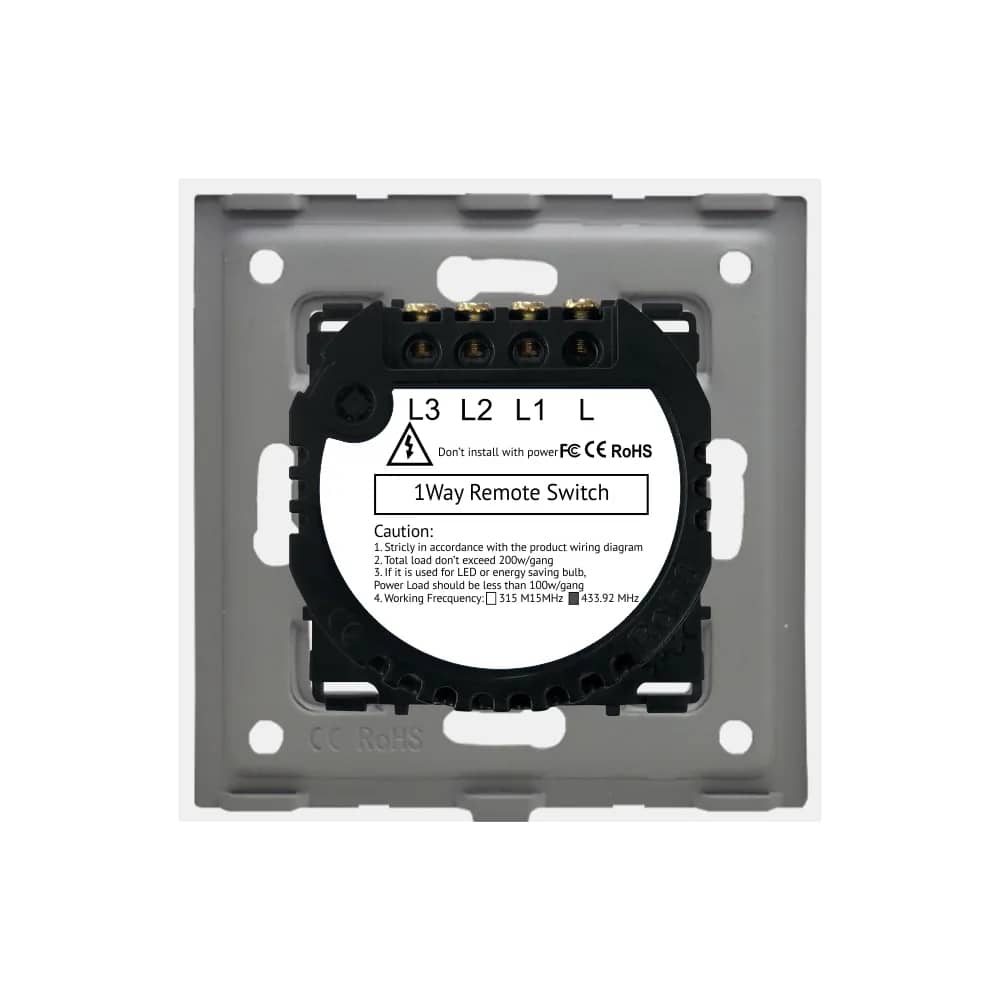

Wiring Diagram

Connect the live wire (L) to terminal L and the three light circuits to terminals L1, L2 and L3; the neutral (N) connects to the lights.

  • Terminals: L3, L2, L1, L
  • Type: 1Way Remote Switch
  • Do not install with power on
  • Total load must not exceed 200 W/gang
  • For LED or energy-saving bulbs, load should be less than 100 W/gang
  • Working frequency: 433.92 MHz
08

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Luxion Glass Touch Light Switch with Aluminium Frame – 3 Gang, RF433 – detail 1
