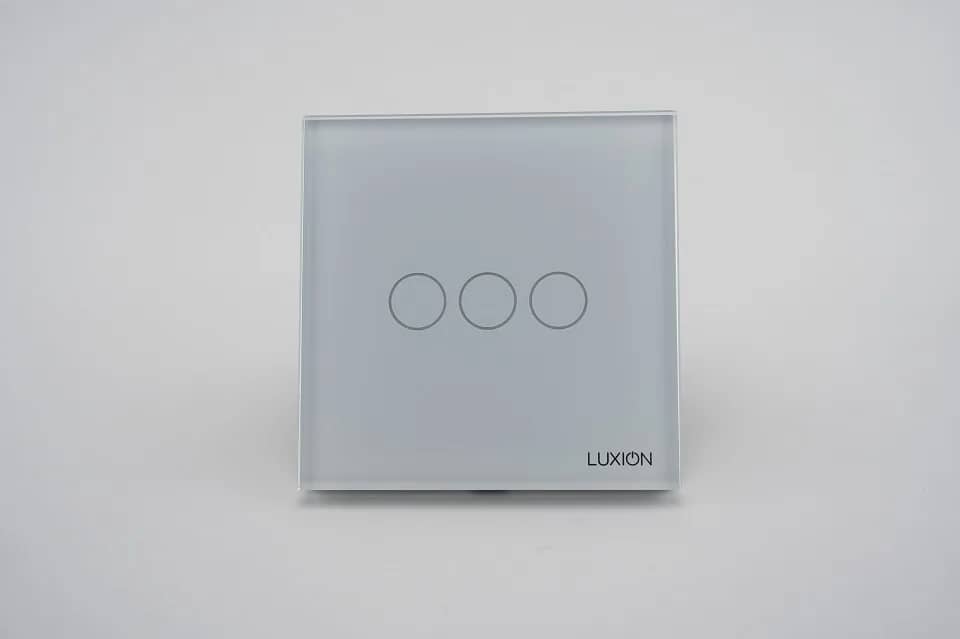

Luxion Glass Touch Light Switch – 3 Gang, 500W

Compact, Elegant and Minimalist Design

The LUXION triple touch switch brings the versatility of modern smart switches to your walls with a clean, minimalist look.

• 3-gang touch switch
• Available in white, black, gold and grey

Touch Sensor

The touch sensor is extremely precise, just like the sensor in a smartphone.

Fade-Resistant Finish

The panel does not discolour, so its elegant design stays intact.

Structure

The switch consists of three main parts and is fixed in place with a screw mounting system.

• Elegant glass panel
• Switch module
• Metal frame
• Screw mounting system, 60 mm fixing distance

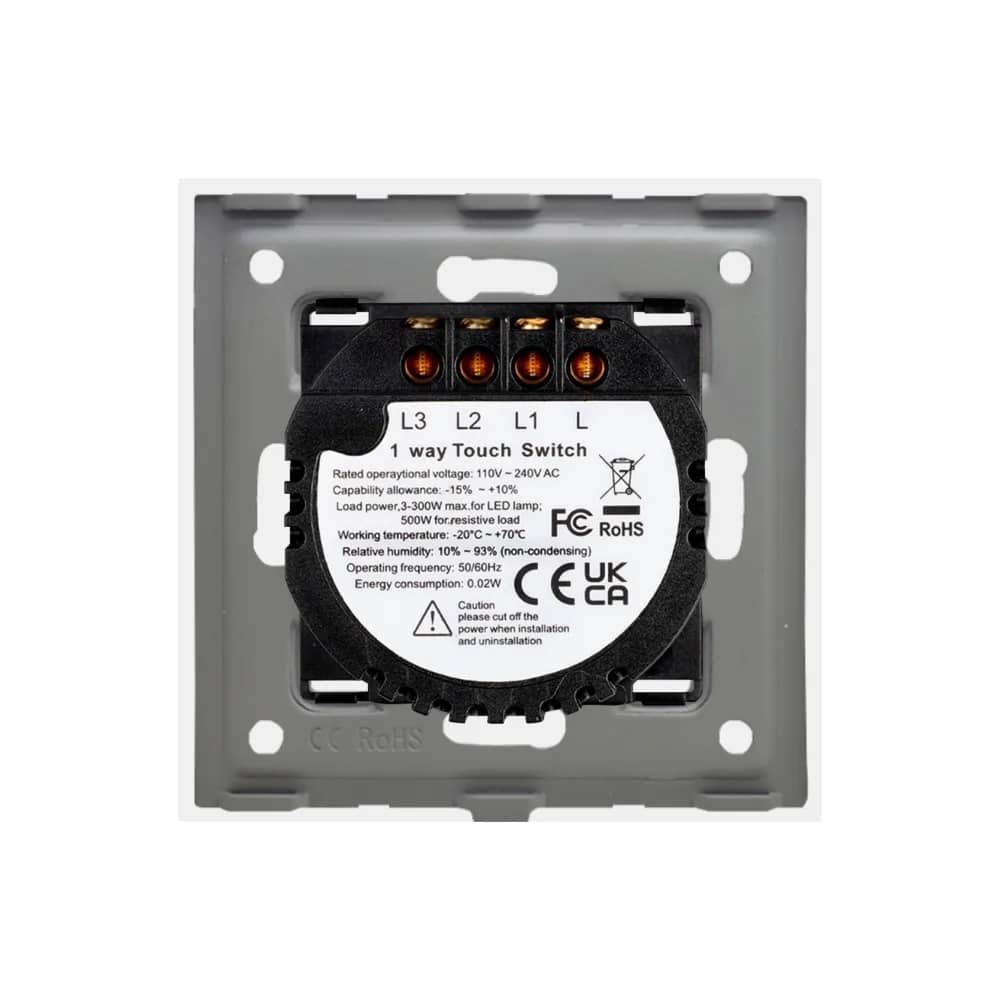

Technical Data

• Type: 1 way Touch Switch
• Rated operating voltage: 110V ~ 240V AC
• Capability allowance: -15% ~ +10%
• Load power: 3–300W max. for LED lamp; 500W for resistive load
• Working temperature: -20°C ~ +70°C
• Relative humidity: 10% ~ 93% (non-condensing)
• Operating frequency: 50/60Hz
• Energy consumption: 0.02W

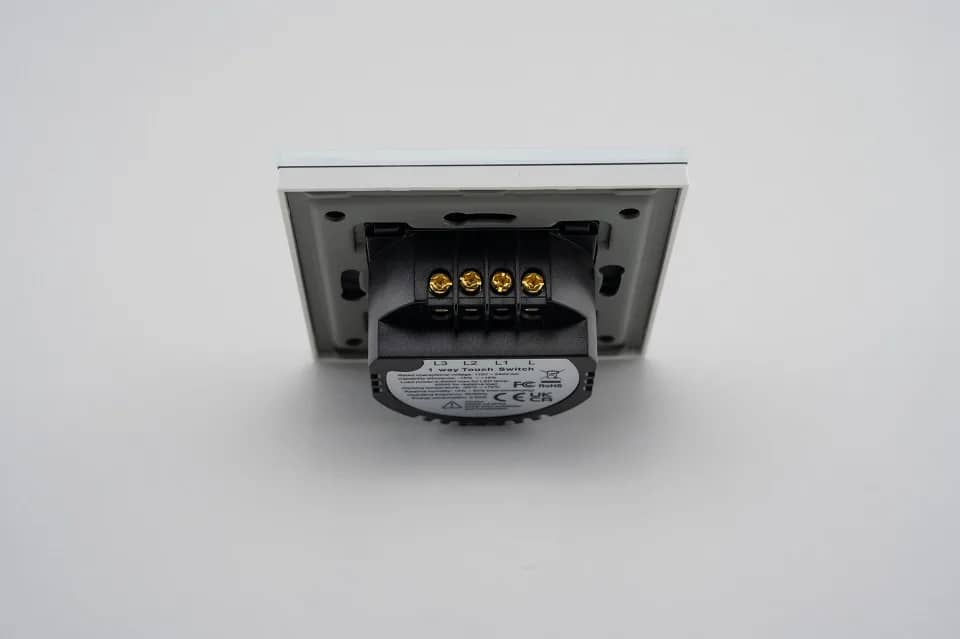

• Terminals: L, L1, L2, L3
• Markings: CE, FC, RoHS, UKCA

Dimensions

• Front panel: 86 x 86 mm
• Panel thickness: 9 mm
• Module depth: 26 mm
• Module height: 49 mm
• Mounting screw spacing: 60 mm

Wiring Diagram

Connect the live (L) wire to the L terminal, and each light to the L1, L2 and L3 outputs, with the lights' other side connected to neutral (N). Cut off the power before installation and uninstallation.

• L: Live (phase)
• N: Neutral
• L1, L2, L3: Outputs to the three lights

Installation Steps

• 1. Open the package.
• 2. Connect the wires and tighten the screws.
• 3. Use the 2 screws to fix the frame.
• 4. Click the front panel into place.
