Luxion

Luxion Glass Touch Light Switch – 3 Gang + 3 Gang

SKU: LX-ST-301/301-W

AED 118

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion double 3 gang + 3 gang glass touch light switch with a precise smartphone-like sensor, in White, Black, Grey or Gold.

Product details

Luxion 3 gang + 3 gang glass touch light switch. The Luxion range of light switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Glass Touch Light Switch – 3 Gang + 3 Gang – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion switches. This Luxion double touch switch combines two 3-gang touch switches in one sleek glass panel.

  • Triple + triple touch switch
  • Available in white, black, gold and grey (as shown)
Luxion Glass Touch Light Switch – 3 Gang + 3 Gang – Touch Sensor
02

Touch Sensor

The touch sensor is extremely precise, identical to the sensor of a smartphone.

Luxion Glass Touch Light Switch – 3 Gang + 3 Gang – Moisture Resistant
03

Moisture Resistant

Can be used in humid environments.

Luxion Glass Touch Light Switch – 3 Gang + 3 Gang – Does Not Fade
04

Does Not Fade

The elegant design stays intact.

Luxion Glass Touch Light Switch – 3 Gang + 3 Gang – Structure
05

Structure

  • Glass panel
  • Switch modules
  • Metal frame
  • Screw fixing system
Luxion Glass Touch Light Switch – 3 Gang + 3 Gang – Dimensions
06

Dimensions

  • Panel: 157 mm x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
  • Fixing distance between modules: 130 mm
  • Screw fixing spacing: 60 mm
07

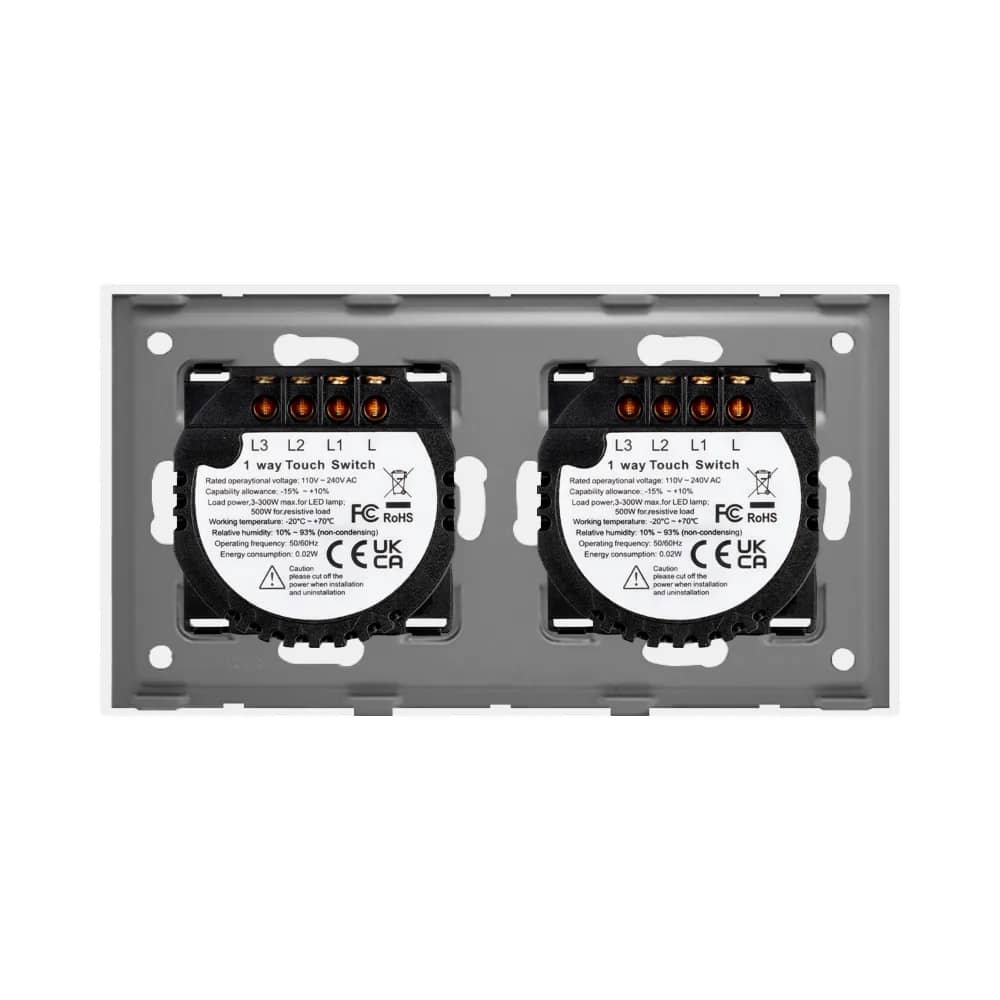

Technical Data (per module)

  • Type: 1 way Touch Switch
  • Terminals: L3, L2, L1, L
  • Rated operational voltage: 110V ~ 240V AC
  • Capability allowance: -15% ~ +10%
  • Load power: 3-300W max. for LED lamp; 500W for resistive load
  • Working temperature: -20°C ~ +70°C
  • Relative humidity: 10% ~ 93% (non-condensing)
  • Operating frequency: 50/60Hz
  • Energy consumption: 0.02W
  • Markings: FC, CE, UKCA, RoHS
08

Wiring Diagram

Connect the phase (L) to the L terminal of each module and wire each light to the L1, L2 and L3 outputs, with the lights' other side to neutral (N). Caution: cut off the power when installing and uninstalling.

09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel (click into place).
