01
Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This Luxion triple + triple + triple touch switch combines three 3-gang touch modules in a single glass panel.
Luxion
Luxion Glass Touch Light Switch Panel – 3 Gang + 3 Gang + 3 Gang (LX-ST-301/301/301)
SKU: LX-ST-301/301/301-W
AED 170
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion triple-panel glass touch light switch with three 3 gang modules, a smartphone-precise touch sensor and a sleek minimalist design.
Product details
Luxion 3 gang glass touch light switch. Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Moisture Resistant
Can be used in humid environments.

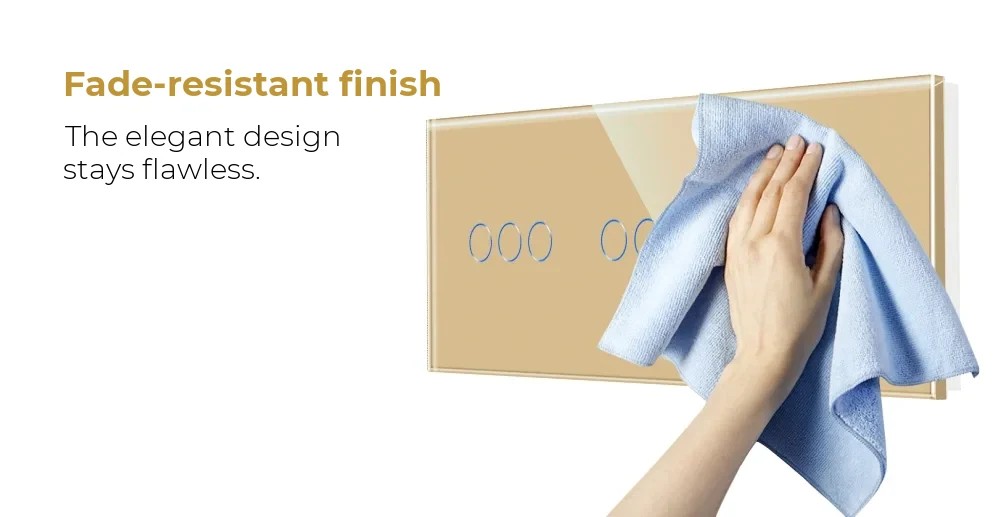

04
Will Not Discolour
The elegant design stays intact.
05
Structure
- Glass panel
- Switch modules
- Metal frame
- Screw fixing system
06
Dimensions
- Panel width: 228 mm
- Panel height: 86 mm
- Distance between outer fixing points: 202 mm
- Distance between module fixing centres: 60 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module diameter: 49 mm
07
Wiring Diagram
Each of the three modules has terminals L, L1, L2 and L3. Connect the live (L) wire to terminal L; each light connects between L1, L2 or L3 and neutral (N).
- Live: L
- Neutral: N
- Outputs per module: L1, L2, L3
08
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (click into place).
In detail
