01
Precise Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
Luxion
Luxion Glass Touch Light Switch – 3 Gang 2-Way (Staircase), Series A
SKU: LX-MT-A302G-W
AED 117
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Series A 3 gang 2-way glass touch switch with a precise smartphone-style sensor and a sleek, fade-resistant design.
Product details
Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.
No pairing required
Highlights
02

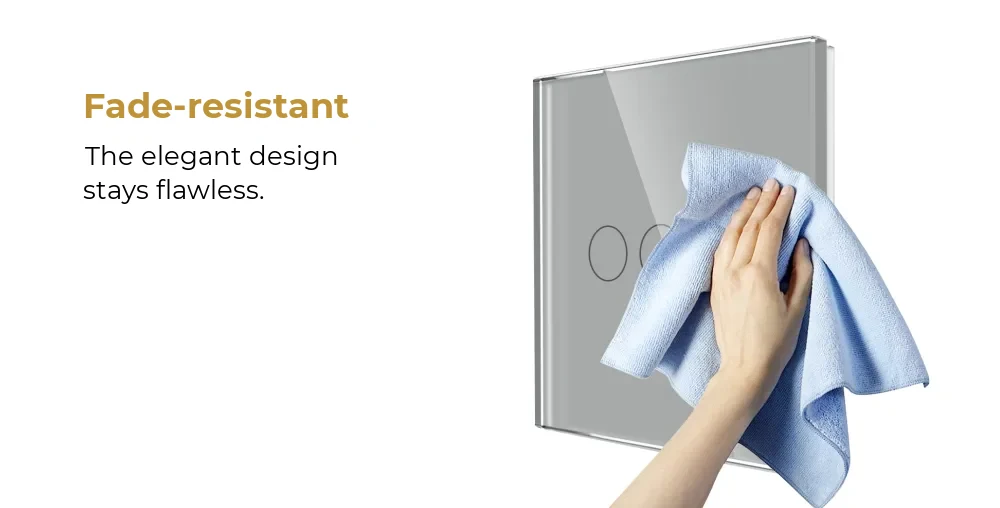

Fade-Resistant Design
The glass panel does not discolour, so its elegant design stays intact.
03
Installation Guide
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
04
Staircase (2-Way) Wiring
The wiring diagrams show the switch modules linked via the L4 (staircase) terminal, allowing the 3 lights (L1, L2, L3) to be controlled from two or three locations on a ~220V supply (L and N).
- Terminals: L, L1, L2, L3, L4 (staircase link)
- Configurations shown: 2 switches or 3 switches
05
Technical Data
- Power supply: 90V ~ 250V
- Load: 600W per channel – resistive
- Operating temperature: -20°C ~ +70°C
- Frequency: 50/60Hz
- Standby consumption: 0.02W
- Humidity: 10% ~ 93%
- Markings: UKCA, CE, RoHS
- Warning: switch off the mains power during installation or removal
