Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This Luxion triple + double touch switch combines a 3-gang and a 2-gang touch switch in one double glass panel.
Luxion
Luxion Glass Touch Light Switch – 3 Gang + 2 Gang
SKU: LX-ST-301/201-W
AED 112
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion tempered-look glass touch switch combining 3 gang and 2 gang controls, with a precise smartphone-like sensor, in White, Gold, Grey or Black.
Product details
Luxion 3 gang + 2 gang glass touch light switch. The Luxion range of light switches stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor of a smartphone.
03
Moisture Resistant
Can be used in damp environments.
04
Does Not Fade
The elegant design stays intact.
05
Structure
The switch is made up of three main parts.
- Glass panel
- Switch module
- Metal frame
06

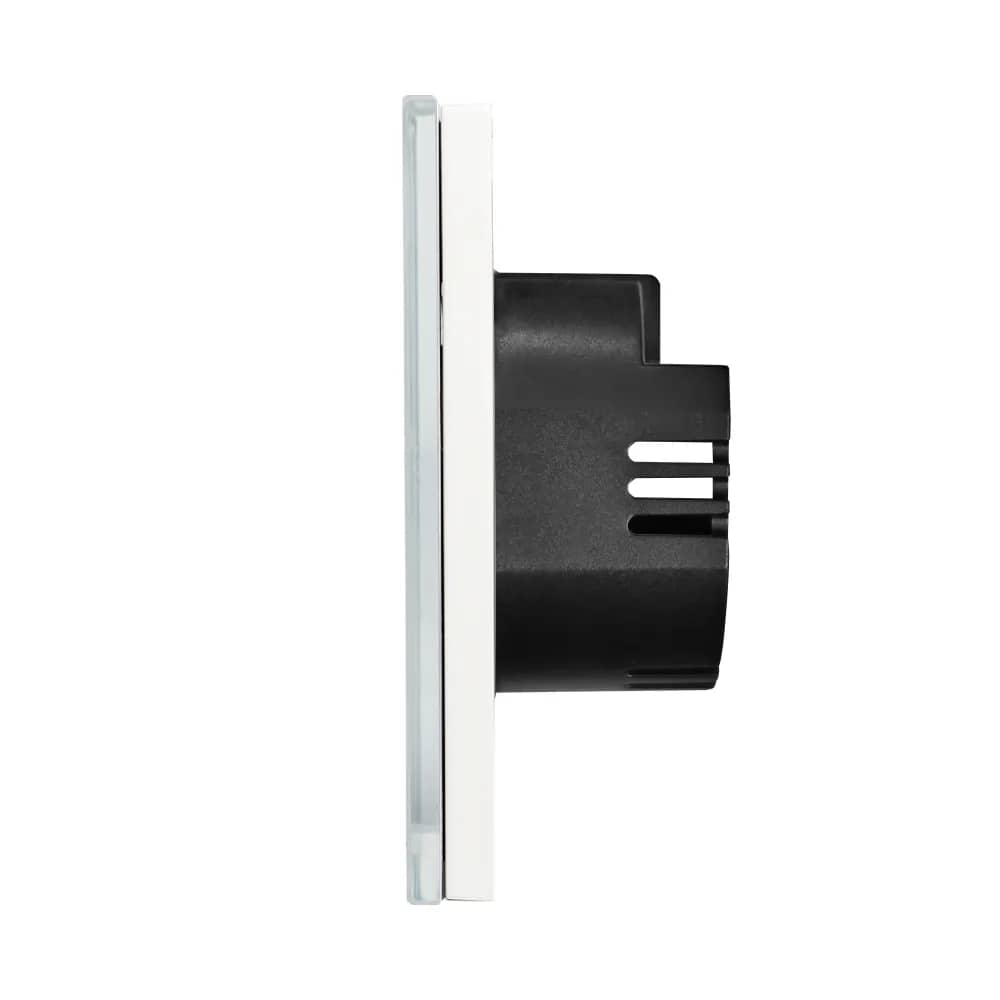

Dimensions
- Panel width: 157 mm
- Panel height: 86 mm
- Distance between modules: 130 mm
- Screw fixing system spacing: 60 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
07

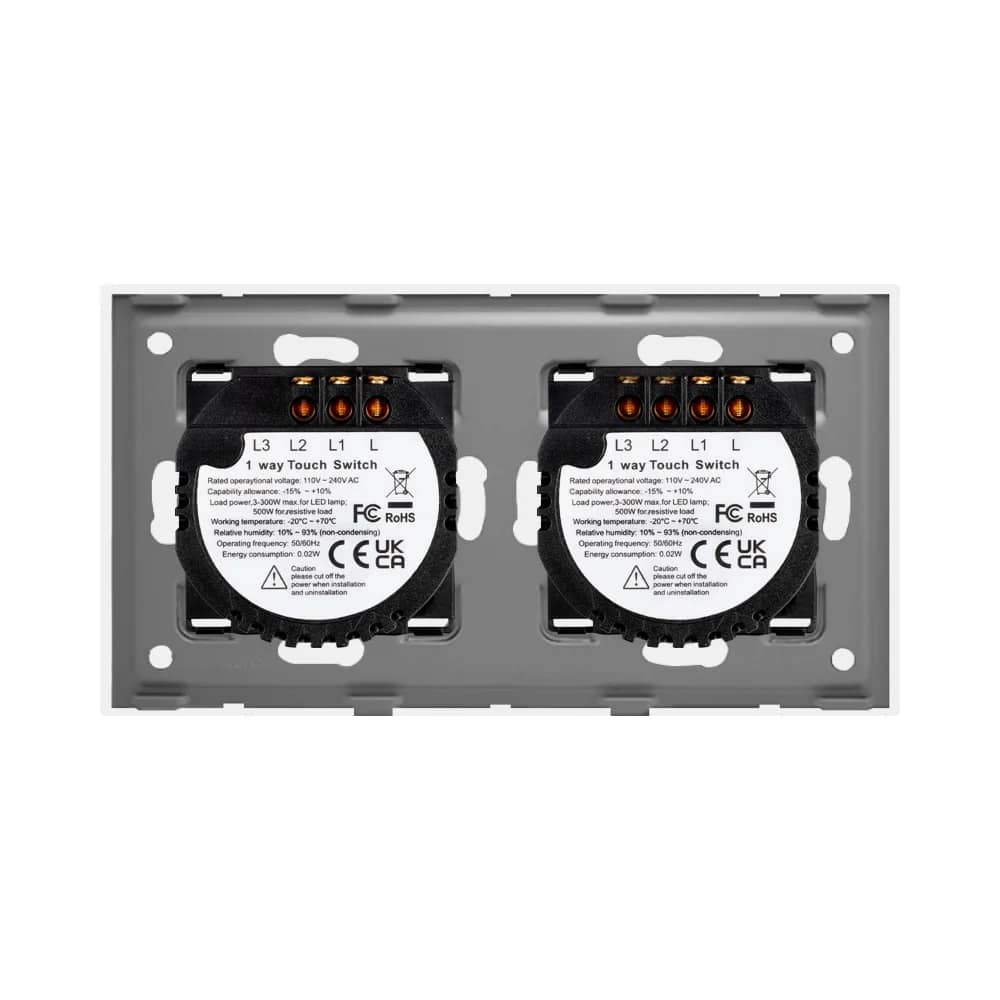

Technical Data (Switch Module Label)
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: CE, FC, UKCA, RoHS
08
Wiring Diagram
Connect the live (L) wire to the L terminal of each module and the lamps to the L1, L2 and L3 outputs; the lamps are also connected to neutral (N). Caution: cut off the power during installation and uninstallation.
- Live: L
- Neutral: N
- 3-gang module: outputs L1, L2, L3
- 2-gang module: outputs L1, L2
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (click into place).
