Luxion

Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433

SKU: LX-MT-R201A-W

AED 130

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 2 gang glass touch light switch with aluminium frame and RF433 support, in White, Gold, Grey or Black.

Product details

Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Highlights

Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433 – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. A double touch switch with an aluminium frame from LUXION, with RF433 support.

  • Double (2 gang) touch switch
  • Aluminium frame
  • RF433 compatible
Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433 – Touch Sensor
02

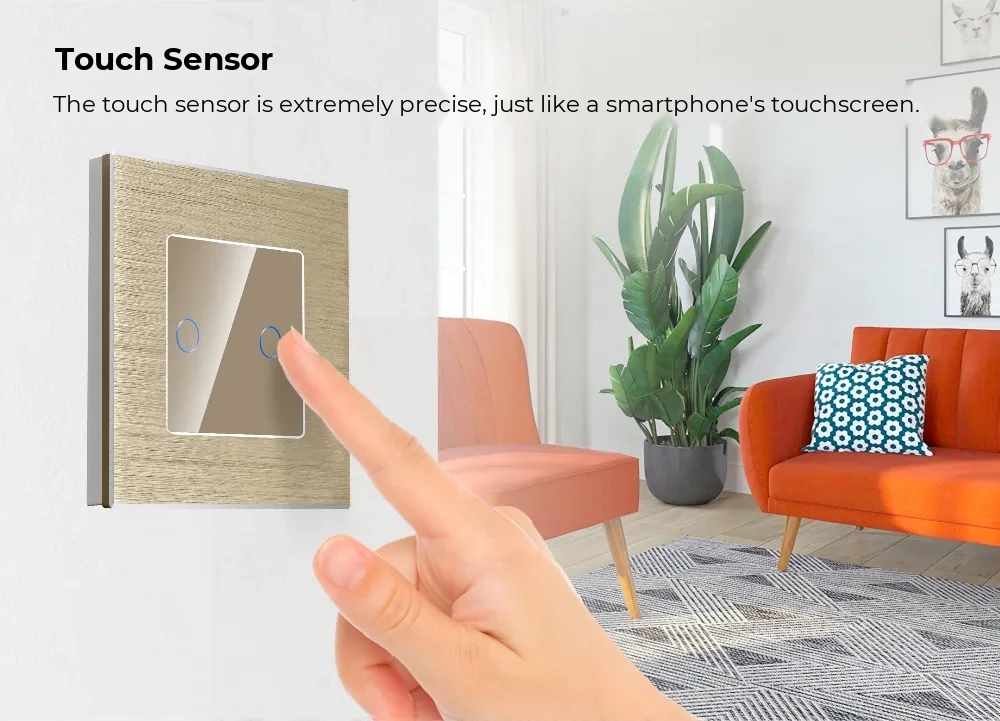

Touch Sensor

The touch sensor is extremely precise, just like the sensor on a smartphone.

Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433 – Moisture Resistant
03

Moisture Resistant

Can be used in humid environments.

Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433 – Does Not Discolour
04

Does Not Discolour

The elegant design stays intact.

Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433 – RF Remote Control
05

RF Remote Control

Use an RF remote control to switch Luxion RF switches on or off. Please note: the image is for illustration only and the RF remote control is NOT included; it must be purchased separately.

Luxion Glass Touch Light Switch with Aluminium Frame – 2 Gang, RF433 – Structure
06

Structure

  • Elegant glass panel with aluminium frame
  • Switch module
  • Metal frame
  • Screw mounting system (60 mm spacing)
07

Dimensions

  • Front panel: 86 mm x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
  • Mounting screw spacing: 60 mm
08

Wiring Diagram

Connect live (L) to terminal L, and the two lighting loads to terminals L1 and L2, with the neutral (N) going to the lamps.

  • Terminals: L2, L1, L
  • Do not install with power on
  • Total load must not exceed 200 W/gang
  • For LED or energy-saving bulbs, load should be less than 100 W/gang
  • Working frequency: 433.92 MHz
09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).
