01
Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
Luxion
Luxion Glass Touch Light Switch – 2 Gang 2-Way (Staircase/Intermediate), Series A
SKU: LX-MT-A202G-W
AED 86
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion Series A 2 gang 2-way/intermediate touch light switch with tempered glass panel, smartphone-precise sensor and no pairing required.
Product details
The Luxion light switch brand stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
No pairing required
Highlights
02

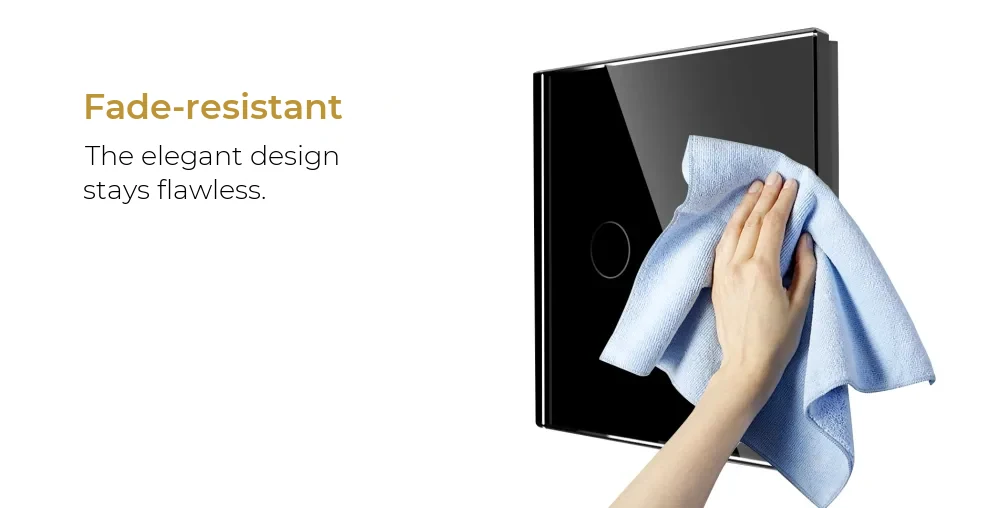

Will Not Fade
The elegant design stays intact over time.
03
Staircase / Intermediate Wiring
The wiring diagrams show the switch modules connected in 2-way (staircase) configurations with two modules and intermediate configurations with three modules, on a ~220V supply (L and N), using terminals L, L1, L2, L3 and L4.
- 2-way setup: two switches controlling the same lights
- Intermediate setup: three switches controlling the same lights
04
Technical Data
- Power supply: 90V ~ 250V
- Load: 600W / channel – resistive
- Operating temperature: -20°C ~ +70°C
- Frequency: 50/60Hz
- Standby consumption: 0.02W
- Humidity: 10% ~ 93%
- Markings: UKCA, CE, RoHS
05
Safety Notice
Caution: switch off the mains power supply during installation or removal.
06
Installation Diagram
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to secure the frame.
- 4. Fit the front panel – it clicks into place.
In detail
