Luxion

Luxion Glass Touch Light Switch – 2 Gang + 2 Gang

SKU: LX-ST-201/201-W

AED 106

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion double 2 gang + 2 gang glass touch light switch with a precise smartphone-style sensor, in White, Black, Grey or Gold.

Product details

Luxion 2 gang + 2 gang glass touch light switch. The Luxion range of switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable, and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Glass Touch Light Switch – 2 Gang + 2 Gang – A Compact, Elegant and Minimalist Design
01

A Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion switches. This Luxion Double + Double touch switch combines two 2-gang touch modules under one sleek glass panel.

  • Available in white, black, gold and grey finishes
Luxion Glass Touch Light Switch – 2 Gang + 2 Gang – Key Features
02

Key Features

  • Touch sensor: extremely precise, identical to a smartphone sensor
  • Moisture resistant: can be used in humid environments
  • Does not fade: the elegant design stays intact
Luxion Glass Touch Light Switch – 2 Gang + 2 Gang – Structure
03

Structure

The switch consists of three main parts.

  • Glass panel
  • Switch modules
  • Metal frame
Luxion Glass Touch Light Switch – 2 Gang + 2 Gang – Dimensions
04

Dimensions

  • Panel width: 157 mm
  • Panel height: 86 mm
  • Distance between module centres: 130 mm
  • Screw fixing system: 60 mm
  • Panel thickness: 9 mm

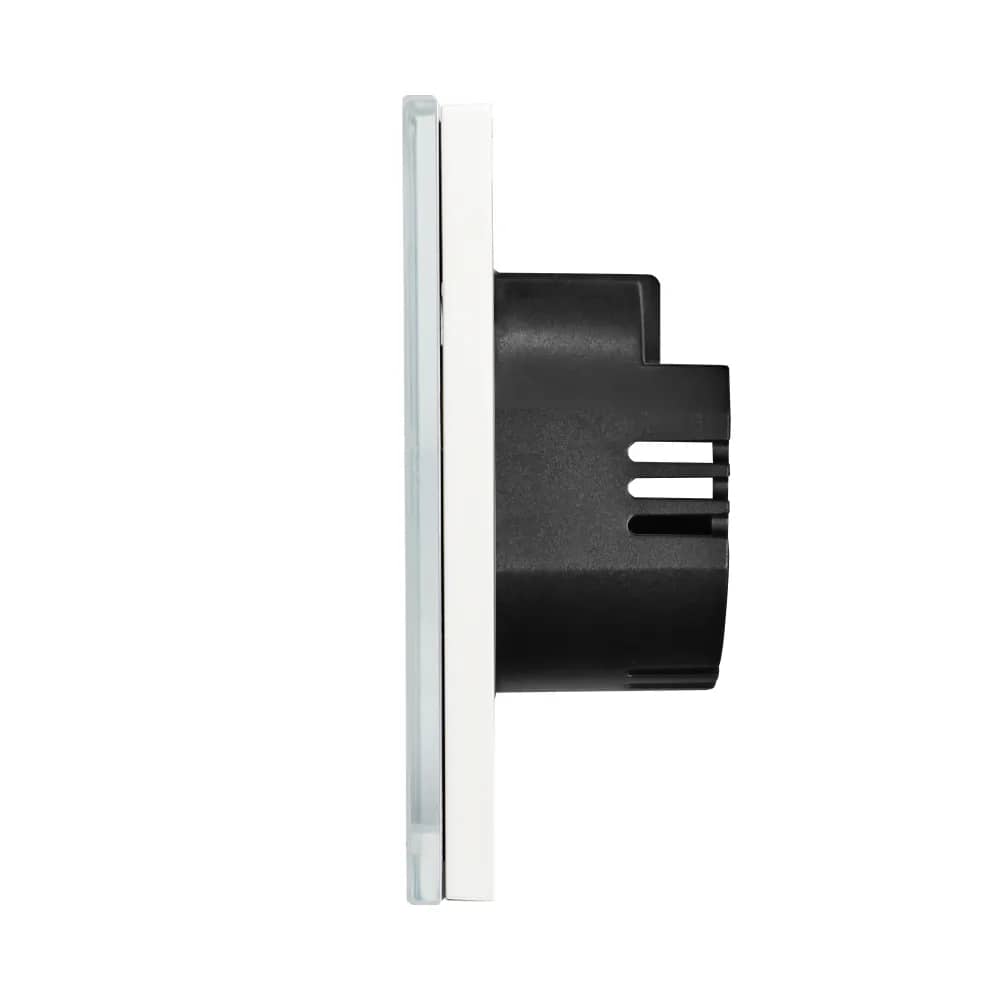

  • Wall-mounted depth: 26 mm
  • Module height: 49 mm

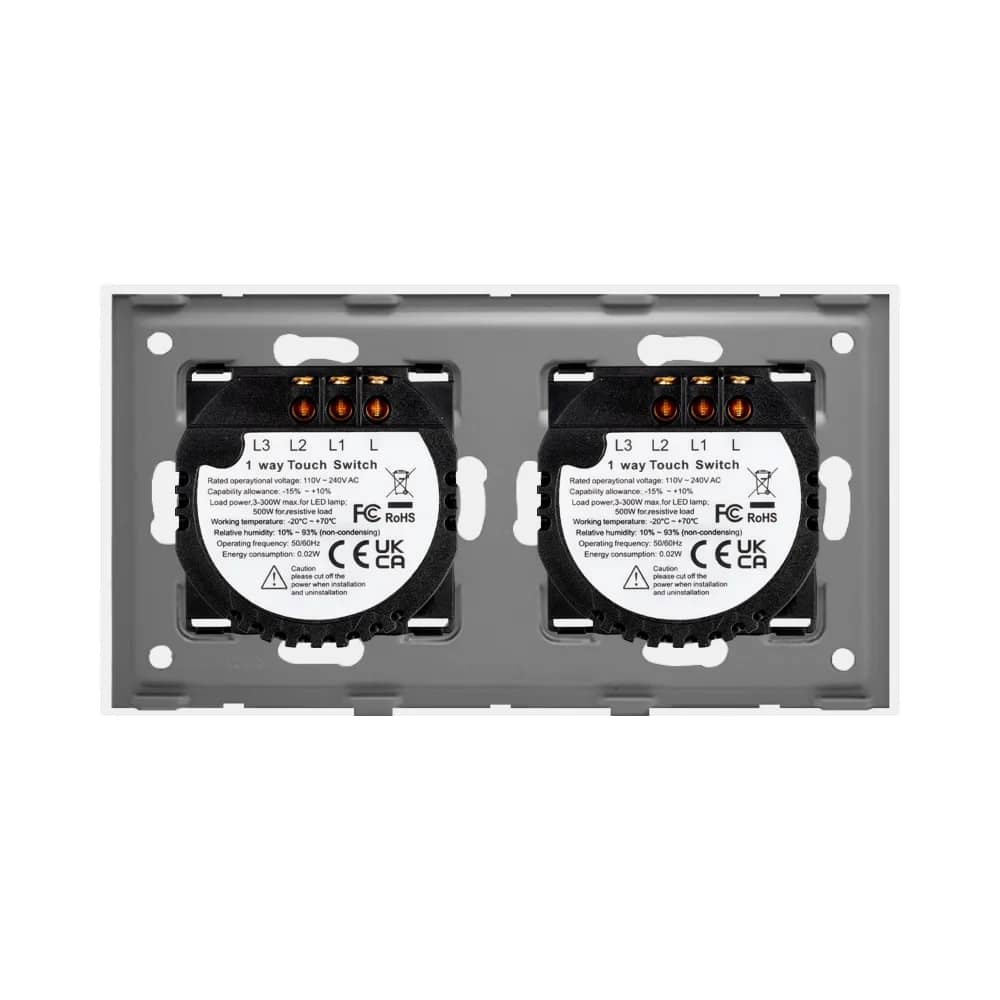

Luxion Glass Touch Light Switch – 2 Gang + 2 Gang – Technical Data (printed on module)
05

Technical Data (printed on module)

Each module is a 1 way Touch Switch.

  • Rated operational voltage: 110V ~ 240V AC
  • Capability allowance: -15% ~ +10%
  • Load power: 3-300W max. for LED lamp; 500W for resistive load
  • Working temperature: -20°C ~ +70°C
  • Relative humidity: 10% ~ 93% (non-condensing)
  • Operating frequency: 50/60Hz
  • Energy consumption: 0.02W
  • Markings: FC, RoHS, CE, UKCA
Luxion Glass Touch Light Switch – 2 Gang + 2 Gang – Wiring Diagram
06

Wiring Diagram

Connect the live (L) and neutral (N) lines as shown in the wiring diagram. Each module has L, L1, L2 and L3 terminals, with lights connected to the L1 and L2 outputs. Caution: please cut off the power during installation and uninstallation.

  • Live (L)
  • Neutral (N)
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to fix the frame.
  • 4. Fit the front panel (click into place).
