Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This Luxion triple-frame touch switch combines three double (2 gang) switches in one sleek glass panel.
Luxion
Luxion Glass Touch Light Switch – 2 Gang + 2 Gang + 2 Gang
SKU: LX-ST-201/201/201-W
AED 152
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion tempered-glass triple panel with three 2 gang touch light switches, smartphone-precise sensor and fade-resistant finish in four colours.
Product details
Luxion glass 2 gang touch light switch. The Luxion light switch brand stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Key Features
- Touch sensor: extremely precise, identical to a smartphone sensor
- Moisture resistant: can be used in damp environments
- Does not discolour: the elegant design stays intact
03
Structure
- Glass panel
- Switch module
- Metal frame
- Screw fixing system
04
Dimensions
- Panel: 228 mm x 86 mm
- Distance between outer fixing points: 202 mm
- Fixing spacing between modules: 60 mm
- Panel thickness: 9 mm

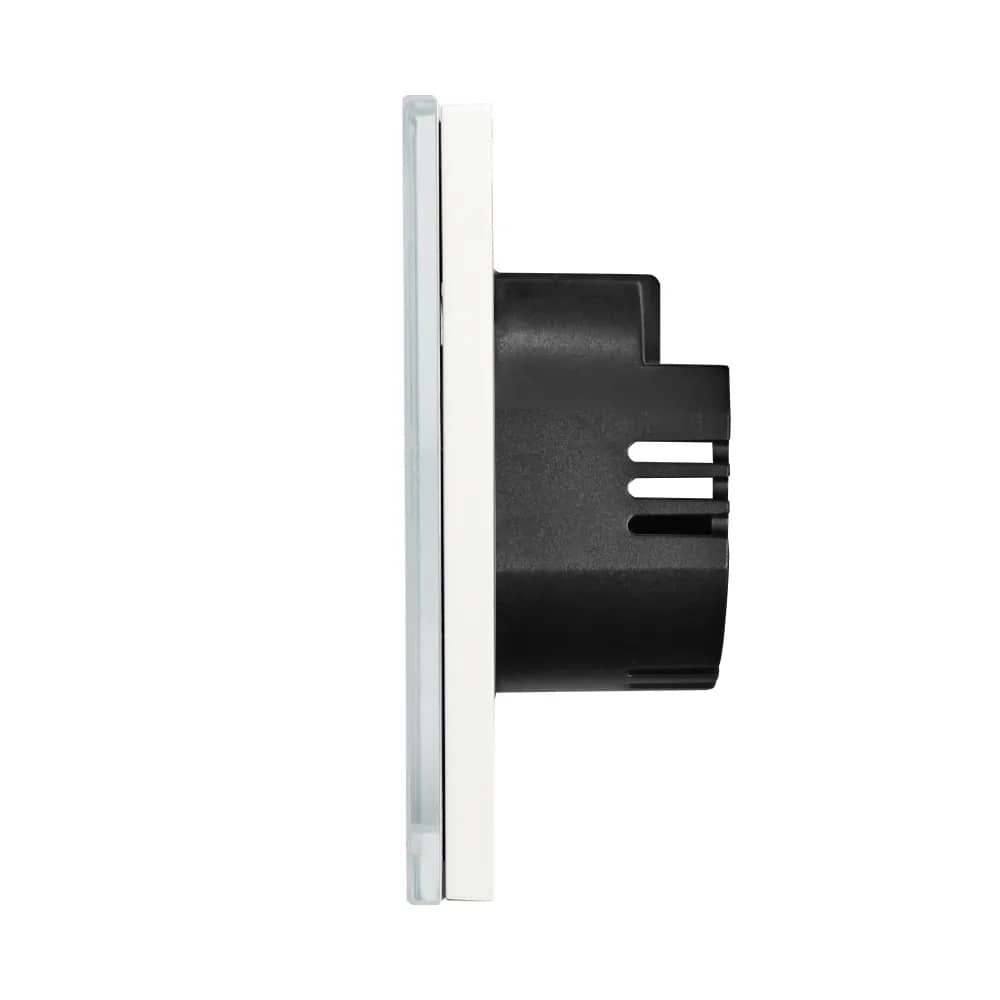

- Module depth: 26 mm
- Module height: 49 mm
05

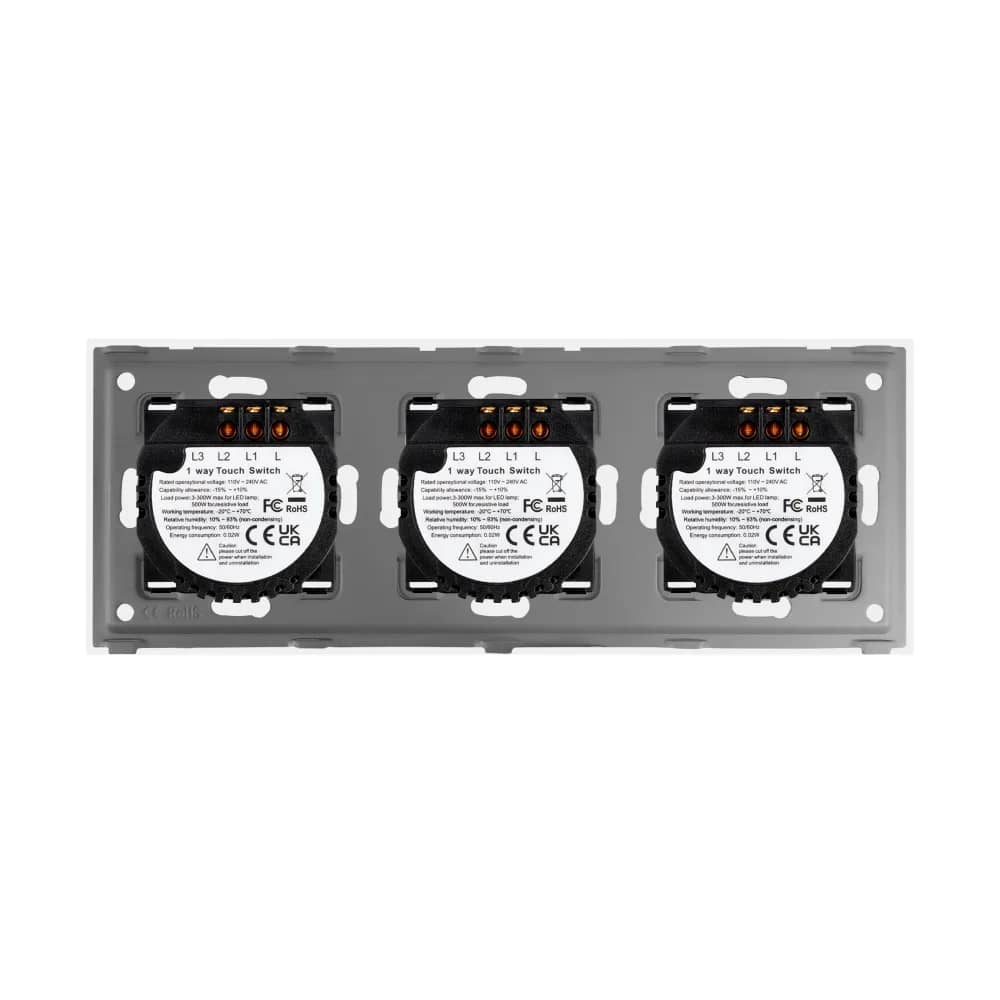

Module Data (as printed on the module)
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
- Caution: cut off the power during installation and uninstallation
06
Wiring Diagram
Each module has terminals L, L1, L2 and L3. Live (L) is connected to the L terminal of each module, and each lamp is connected between an output terminal and Neutral (N).
- Live: L
- Neutral: N
07
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (click into place).
