Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This Luxion double + single touch switch combines a 2 gang and a 1 gang switch on one sleek glass panel.
Luxion
Luxion Glass Touch Light Switch – 2 Gang + 1 Gang
SKU: LX-ST-201/101-W
AED 100
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion 2 gang + 1 gang glass touch light switch with a smartphone-precise sensor, minimalist design and fade-resistant finish.
Product details
Luxion 2 gang + 1 gang glass touch light switch. The Luxion range of light switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02

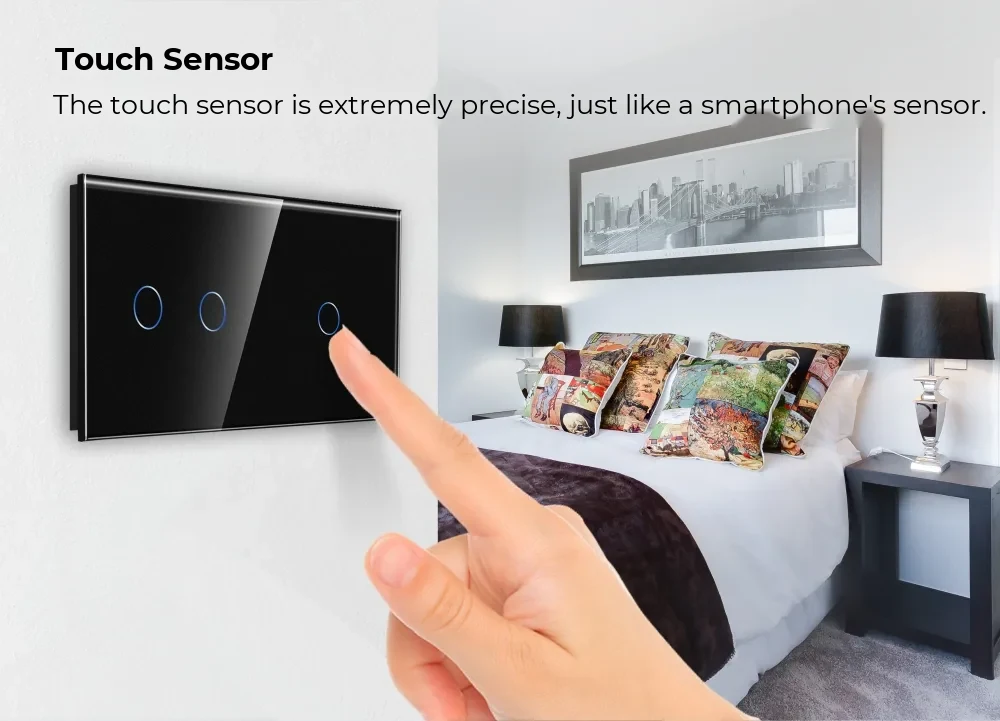

Touch Sensor
The touch sensor is extremely precise, just like the sensor in a smartphone.
03
Moisture Resistant
Suitable for use in damp environments.
04
Does Not Fade
The elegant design stays intact over time.
05
Structure
The switch is made up of three main parts.
- Glass panel
- Switch module
- Metal frame
06

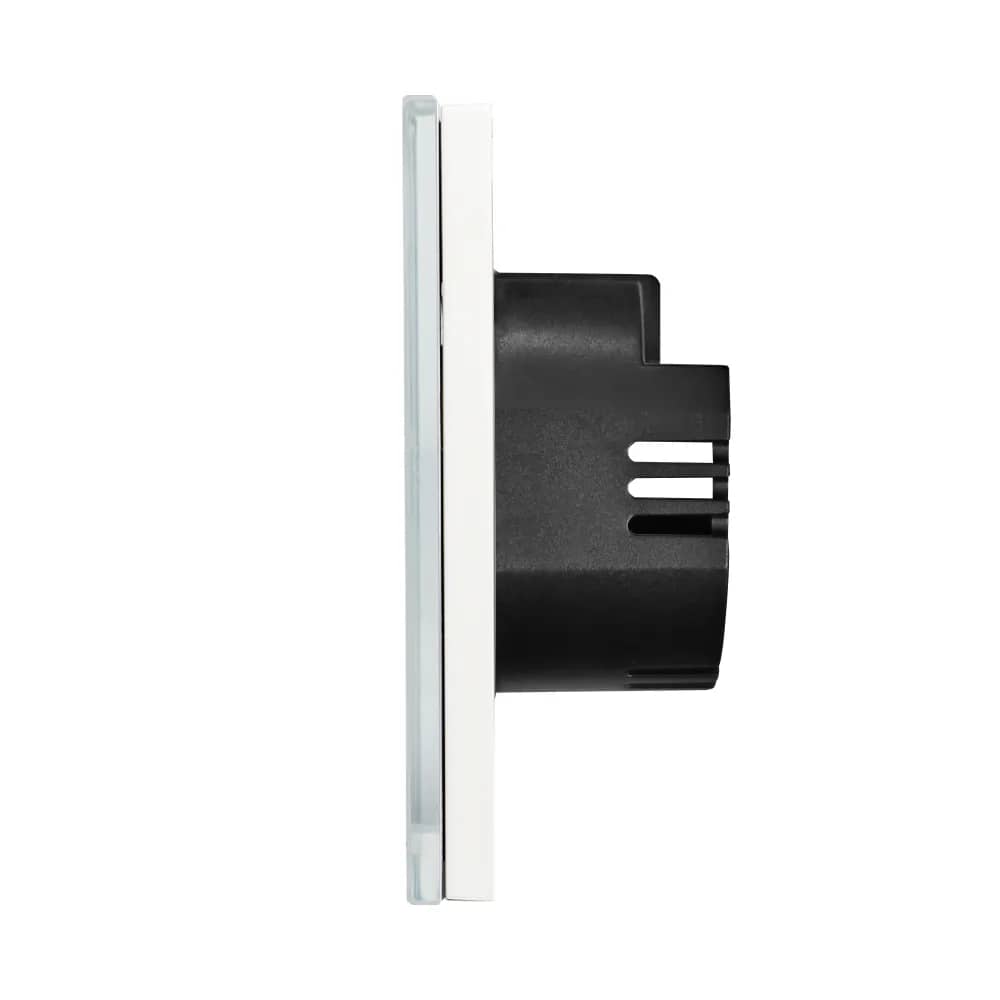

Dimensions
- Panel width: 157 mm
- Panel height: 86 mm
- Front panel thickness: 9 mm
- Rear depth: 26 mm
- Module height: 49 mm
- Distance between outer fixing points: 130 mm
- Screw fixing system spacing: 60 mm
07

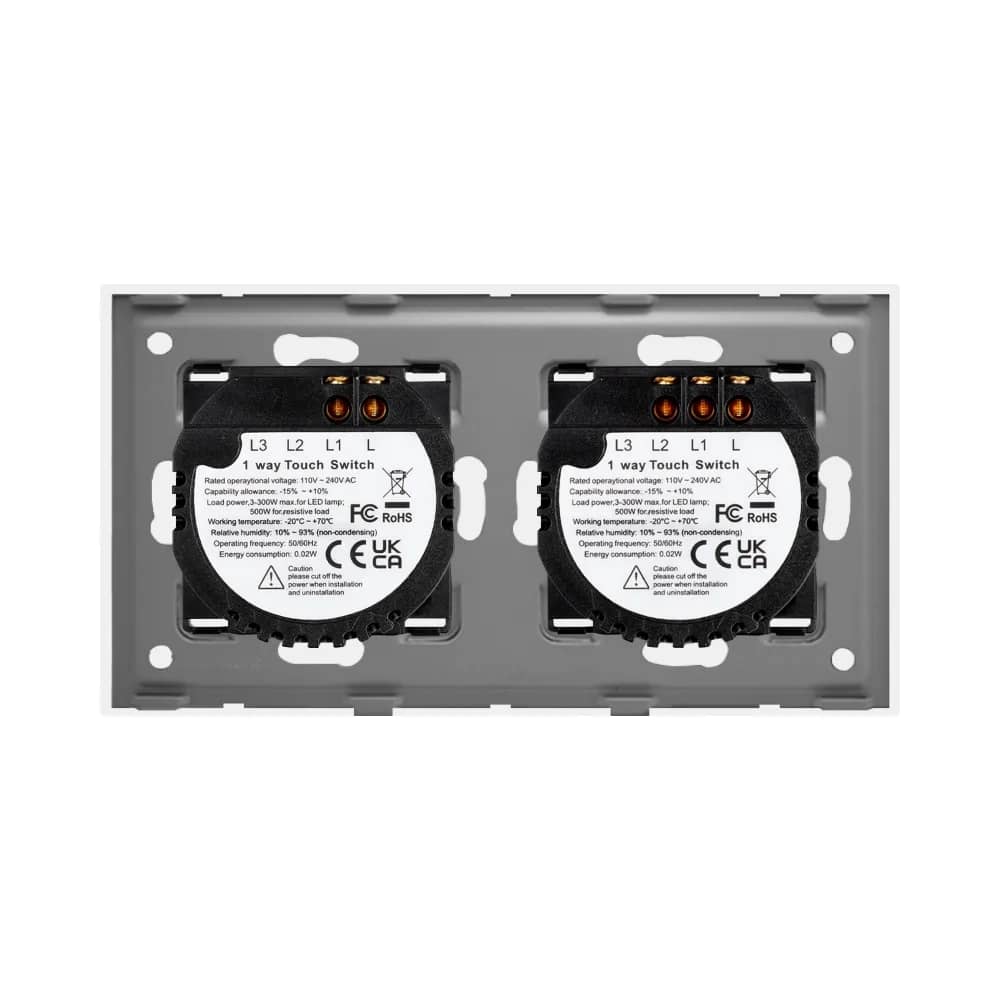

Technical Data (per module label)
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp; 500W for resistive load
- Working temperature: -20℃ ~ +70℃
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
08
Wiring Diagram
Connect the neutral (N) to the lamps and the live (L) to the L terminal of each module. The single module uses output L1; the double module uses outputs L1 and L2. Please cut off the power before installation and uninstallation.
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
