SmartHomesAE
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – White — image 1
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – White — image 2
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – White — image 3
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – White — image 4
1/4
Luxion

Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433

SKU: LX-MT-R101A-W

AED 119

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Compact, minimalist Luxion 1 gang touch light switch with glass panel, aluminium frame and RF433, in White, Gold, Grey or Black.

Product details

Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. The LUXION single touch switch with aluminium frame features RF433 support.

  • Single touch switch (1 gang)
  • Aluminium frame
  • RF433 compatible
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – Key Features
02

Key Features

  • Touch sensor: extremely precise, identical to a smartphone's sensor
  • Moisture resistant: can be used in humid environments
  • Does not discolour: the elegant design stays intact
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – RF Remote Control
03

RF Remote Control

With an RF remote control you can switch Luxion switches on or off. Please note: the image is for illustration only and the RF remote control is NOT included in the price; it must be purchased separately.

Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – Structure
04

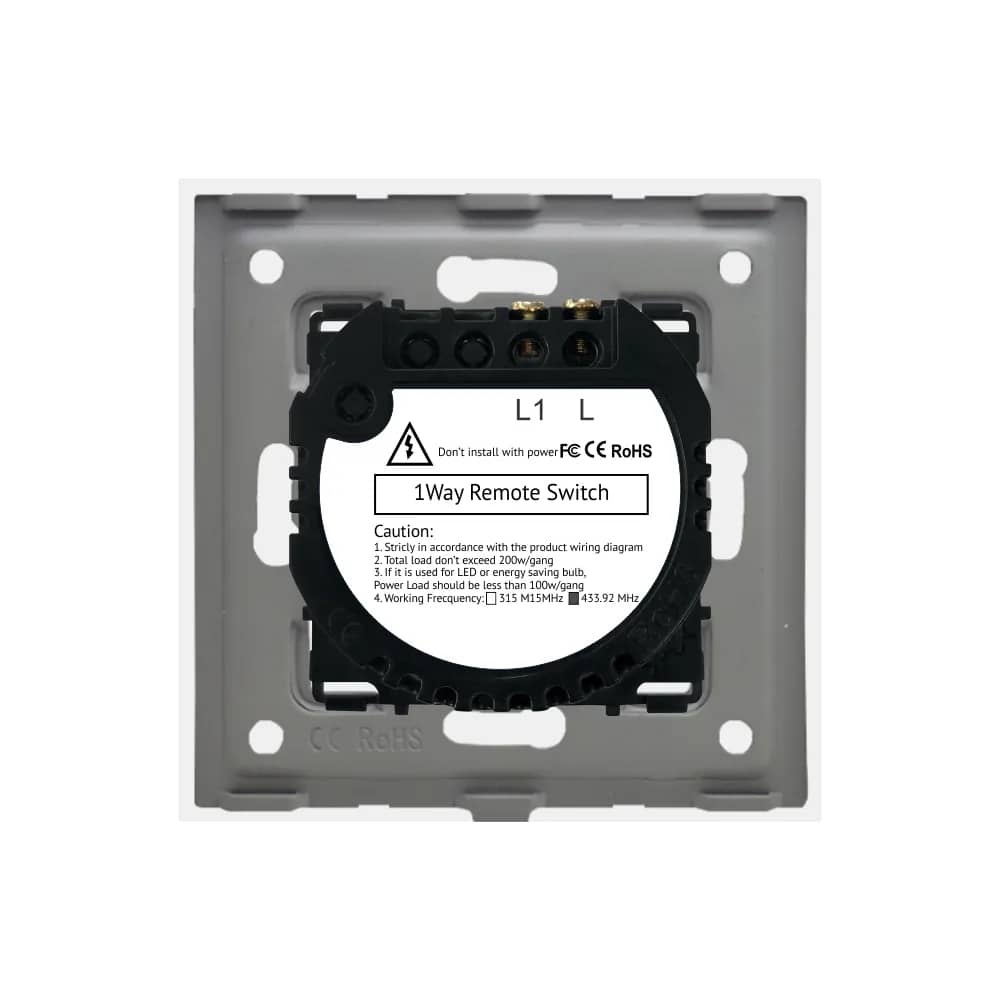

Structure

  • Elegant glass panel with aluminium frame
  • Switch module
  • Metal mounting frame
  • Screw fixing system (60 mm between screws)
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – Dimensions
05

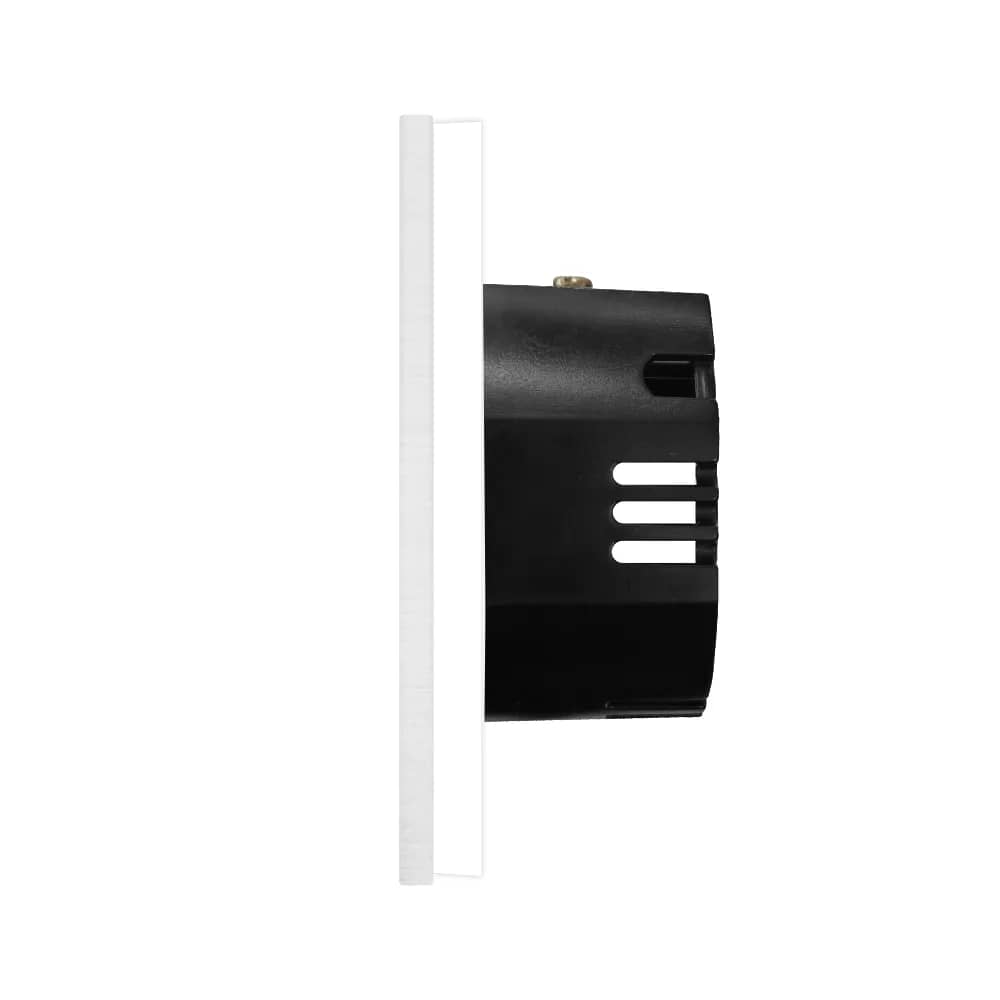

Dimensions

  • Front panel: 86 mm x 86 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
  • Screw spacing: 60 mm
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – Wiring Diagram
06

Wiring Diagram

Connect the live wire (L) to terminal L and the load (light) to terminal L1; the load returns to neutral (N).

  • Live: L
  • Neutral: N
  • Load output: L1
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, RF433 – detail 1
