A Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This single touch switch from LUXION features an aluminium frame.
Luxion
Luxion Glass Touch Light Switch with Aluminium Frame – 1 Gang, 500W
SKU: LX-ST-101A-W
AED 69
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Elegant 1 gang touch light switch with glass panel and aluminium frame, smartphone-precise sensor, 500W, in White, Gold, Grey or Black.
Product details
Luxion switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02

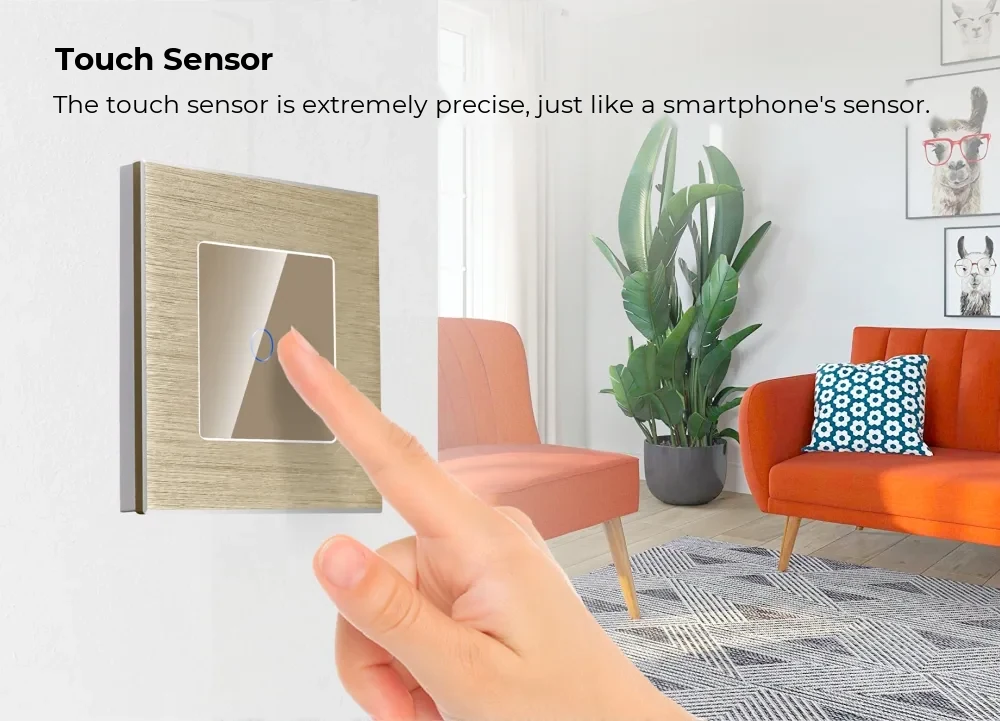

Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Moisture Resistant
Can be used in humid environments.
04
Does Not Fade
The elegant design stays intact.
05

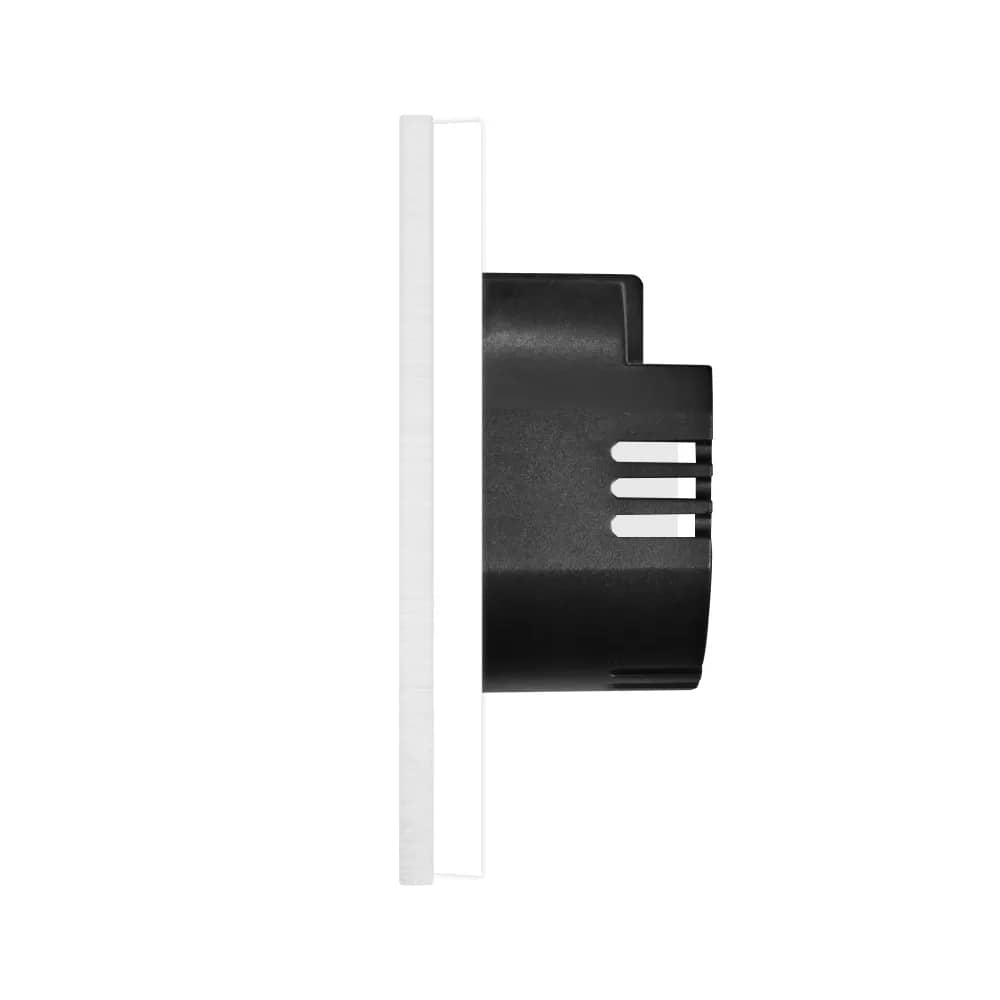

Structure
The switch consists of three main parts and is fixed with a screw mounting system.
- Elegant glass panel with aluminium frame
- Switch module
- Metal frame
- Screw mounting system: 60 mm between fixing points
06
Dimensions
- Front panel: 86 mm x 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
07
Technical Data
As printed on the switch module label.
- Type: 1 way Touch Switch
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max. for LED lamp, 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: FC, CE, UKCA, RoHS
08
Wiring Diagram
Connect the live wire (L) to the L terminal and the lamp to the L1 terminal; the lamp's other lead connects to neutral (N). Cut off the power before installation and uninstallation.
- Live (L): L terminal
- Load: L1 terminal, lamp connected to Neutral (N)
09
Installation Steps
- 1. Open the package.
- 2. Connect the wires and tighten the screws.
- 3. Use the 2 screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
