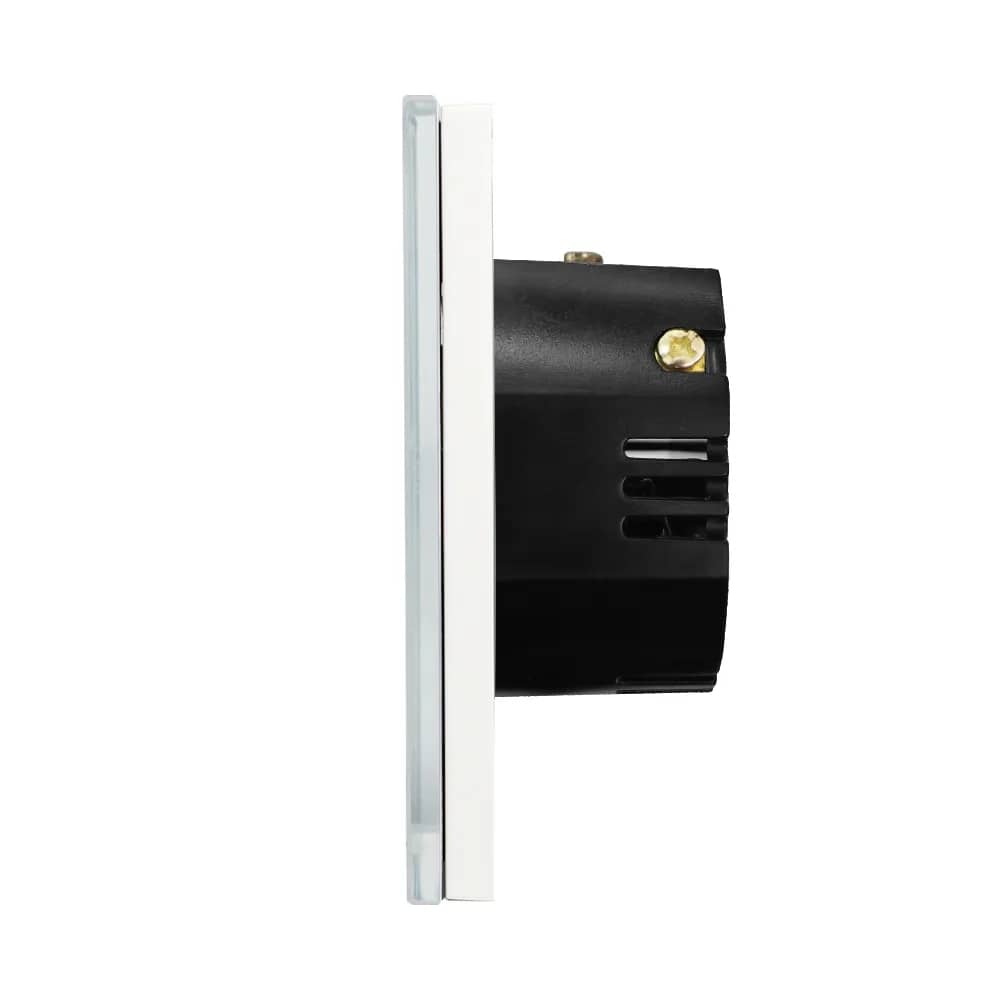

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – White — image 3

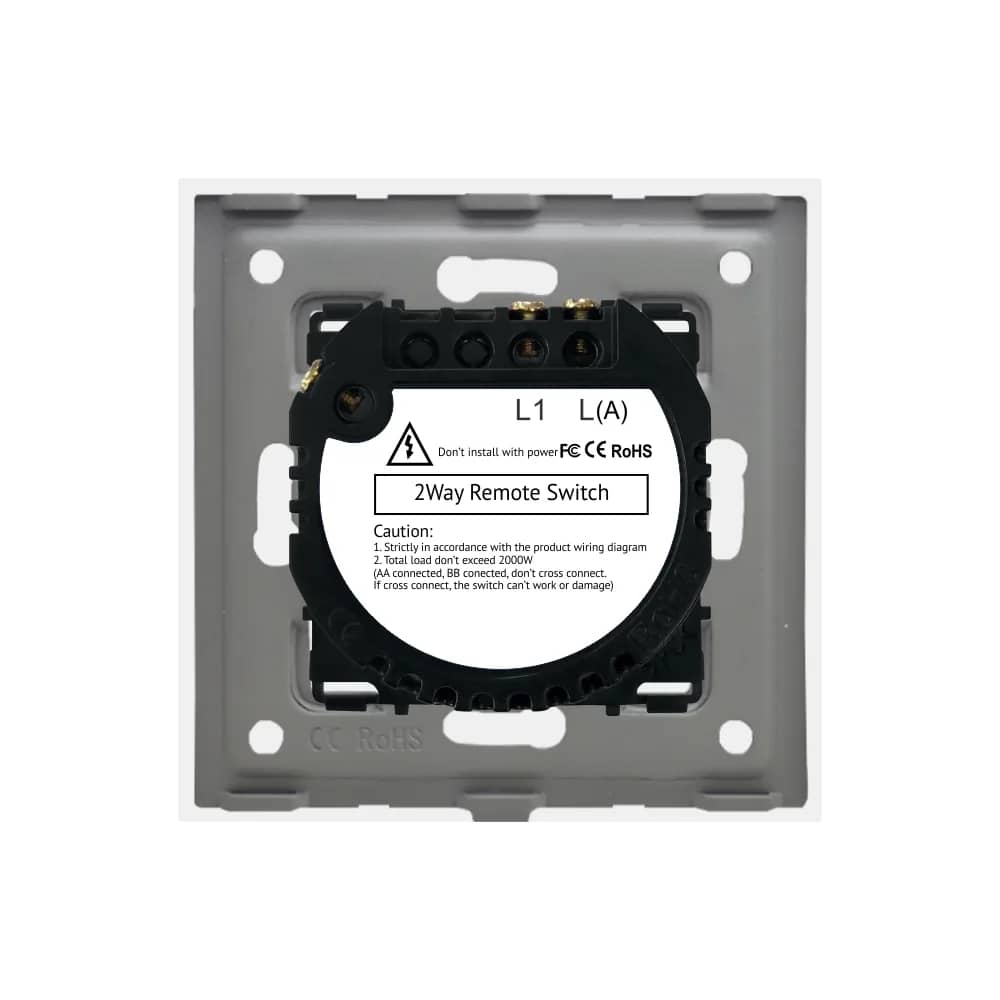

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – White — image 4
1/4
Luxion

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433

SKU: LX-MT-R102G-W

AED 120

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 1 gang 2-way / intermediate glass touch light switch with RF433, controllable via the Luxion RF remote (sold separately).

Product details

Luxion 1 gang 2-way (staircase) / intermediate glass touch light switch, RF433. It can be controlled with the Luxion RF remote control. Please note: the remote control must be purchased separately!

The Luxion range of light switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like a smartphone's. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing convenience and comfort to your home.

Compatible with the Luxion RF remote control.

Highlights

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. The Luxion single touch switch with 2-way / intermediate function and RF433 support is available in several colour finishes.

  • 1 gang touch switch
  • 2-way / intermediate (cross) function
  • RF433 remote control support
Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – Important Compatibility Notice
02

Important Compatibility Notice

2-way switches work only when installed and synchronised with other Luxion 2-way products. Luxion products DO NOT work with other brands.

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – Touch Sensor
03

Touch Sensor

The touch sensor is extremely precise, identical to the sensor in a smartphone.

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – Moisture Resistant
04

Moisture Resistant

Can be used in humid environments.

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – Does Not Discolour
05

Does Not Discolour

The elegant design stays intact.

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – RF Remote Control
06

RF Remote Control

Use an RF remote control to switch Luxion switches on or off. Please note: the image is for illustration only and the RF remote control is NOT included; it must be purchased separately.

07

Structure

The switch consists of three main parts.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw mounting system
08

Dimensions

  • Panel size: 86 mm x 86 mm
  • Screw mounting distance: 60 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
09

Wiring Diagram

For a 2-way / intermediate setup, connect Live (L) to the L(A) terminal of both switches, connect the L1 terminals of the two switches together, and wire the light between the first switch and Neutral (N).

  • Live (L)
  • Neutral (N)
  • 2-way – intermediate link between switches
10

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Luxion Glass Touch Light Switch – 1 Gang 2-Way / Intermediate, RF433 – detail 1
