Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This Luxion single + single touch switch combines two 1-gang switches in one sleek double glass panel.
Luxion
Luxion Glass Touch Light Switch – 1 Gang + 1 Gang
SKU: LX-ST-101/101-W
AED 94
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion tempered-look glass touch light switch with two 1 gang controls, a precise smartphone-like sensor and a fade-resistant finish.
Product details
Luxion 1 gang + 1 gang glass touch light switch. Luxion light switches stand out for their compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02
Touch Sensor
The touch sensor is extremely precise, just like the sensor on a smartphone.
03
Moisture Resistant
Can be used in humid environments.
04
Does Not Discolour
The elegant design stays intact.
05
Structure
- Glass panel
- Switch modules
- Metal frame
- Screw fixing system
06

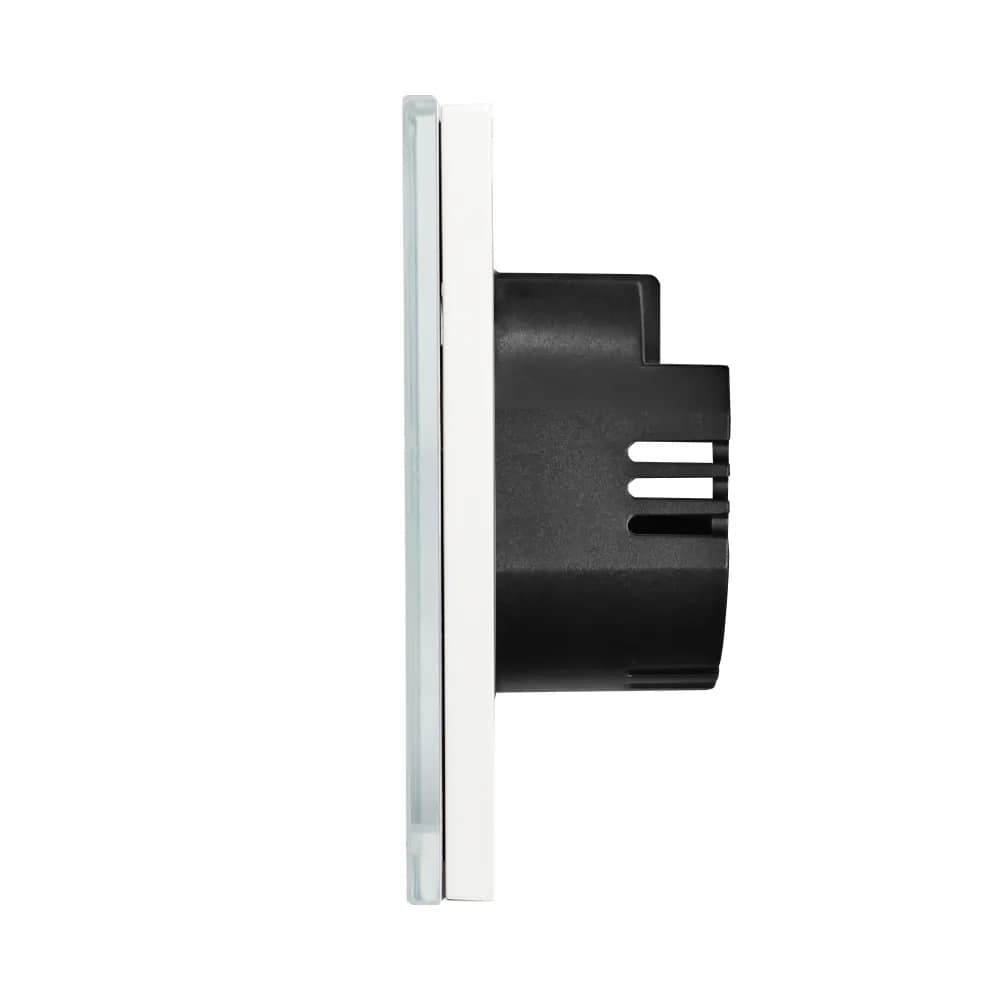

Dimensions
- Panel: 157 mm x 86 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
- Fixing hole spacing: 130 mm
- Screw fixing spacing: 60 mm
07

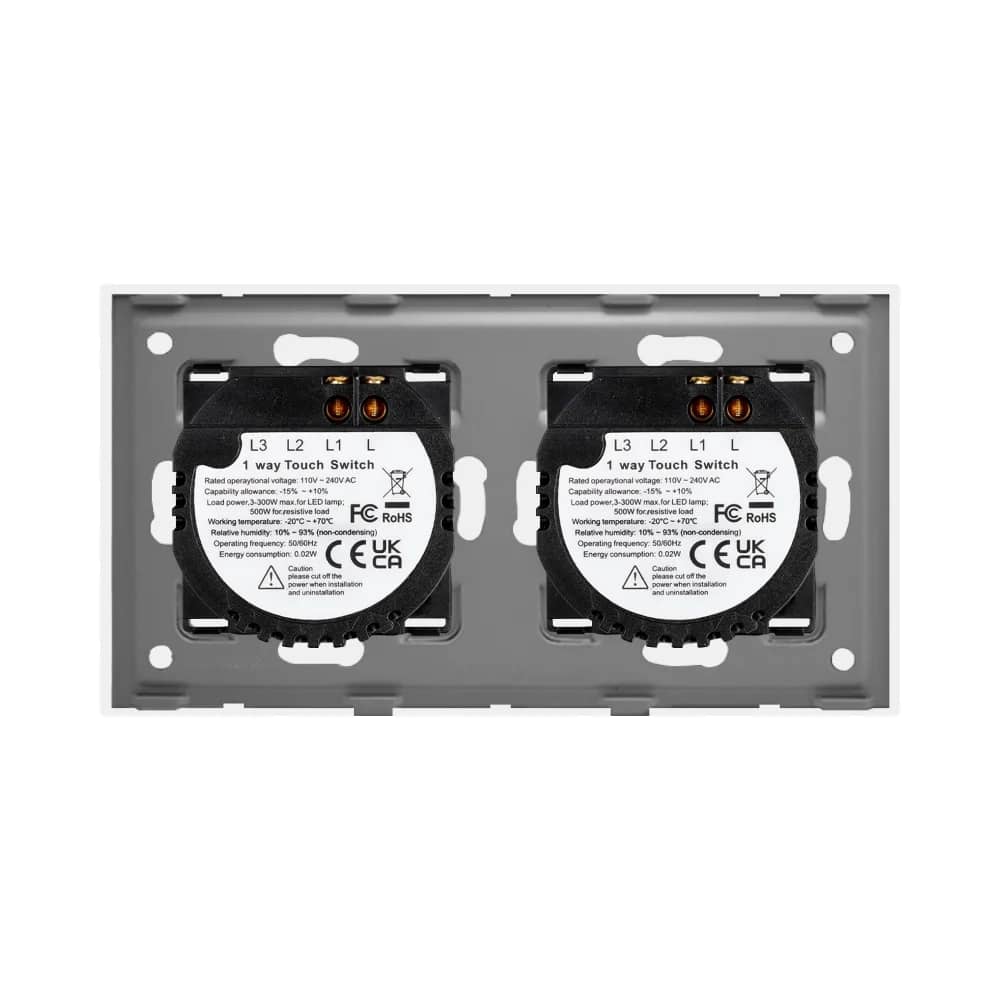

Technical Data (1 Way Touch Switch Module)
- Rated operational voltage: 110V ~ 240V AC
- Capability allowance: -15% ~ +10%
- Load power: 3-300W max for LED lamp; 500W for resistive load
- Working temperature: -20°C ~ +70°C
- Relative humidity: 10% ~ 93% (non-condensing)
- Operating frequency: 50/60Hz
- Energy consumption: 0.02W
- Markings: CE, UKCA, FC, RoHS
08
Wiring Diagram
Each module connects to Live (L) and to its light via the L1 terminal; each light is connected to Neutral (N). Cut off the power during installation and removal.
09
Installation
- 1. Open the package.
- 2. Connect the cables and tighten the screws.
- 3. Use the screws to secure the frame.
- 4. Fit the front panel (it clicks into place).
