A Compact, Elegant and Minimalist Design
Enjoy the versatility of the new Luxion switches. This Luxion touch switch combines three single (1 gang) switches in one panel.
Luxion
Luxion Glass Touch Light Switch – 1 Gang + 1 Gang + 1 Gang
SKU: LX-ST-101/101/101-W
AED 135
In stock
1
- Delivery across all seven emirates. Free on orders over AED 750.
- Order now, we confirm availability and delivery with you before you pay.
Luxion tempered-look glass touch switch with three 1 gang switches, smartphone-precise sensor and fade-resistant finish in White, Black, Grey or Gold.
Product details
Luxion glass touch light switch, 1 gang. The Luxion range of light switches stands out for its compact, elegant and minimalist design. They are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.
Highlights
02

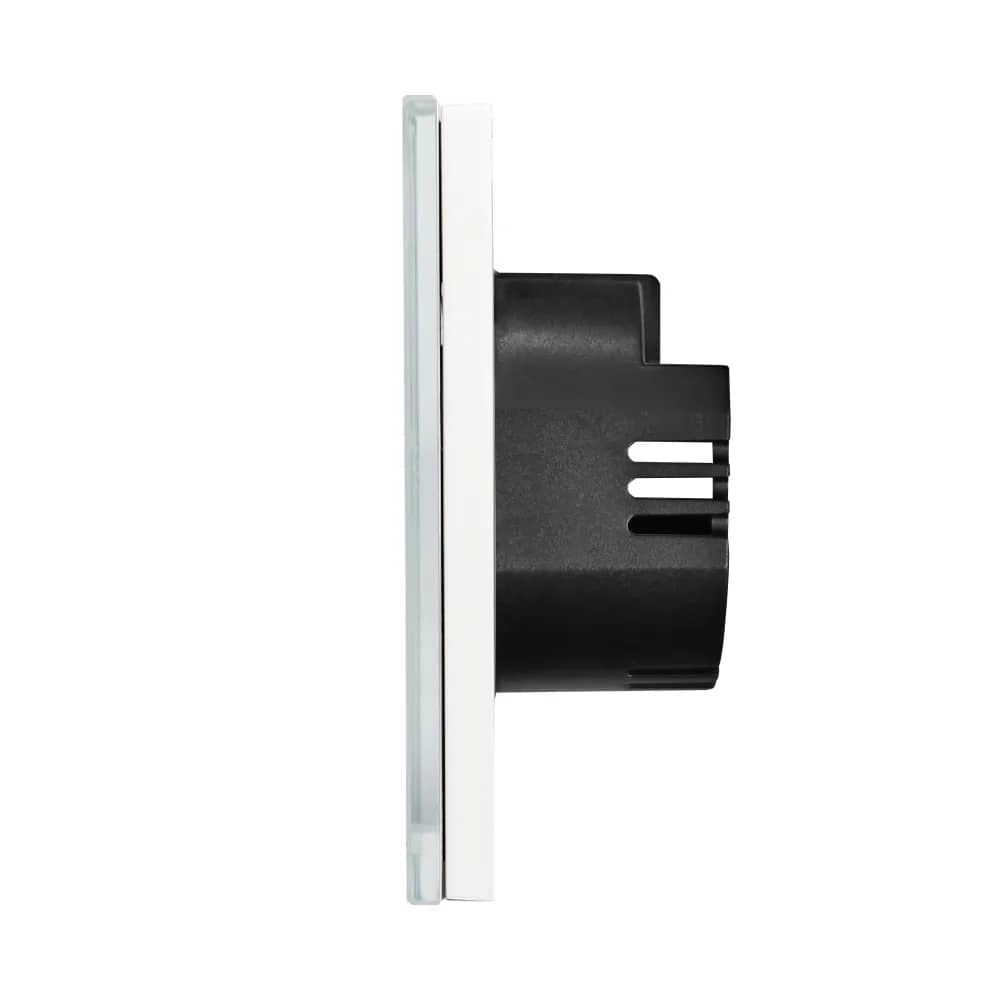

Key Features
- Touch sensor: extremely precise, identical to a smartphone's sensor
- Moisture resistant: can be used in humid environments

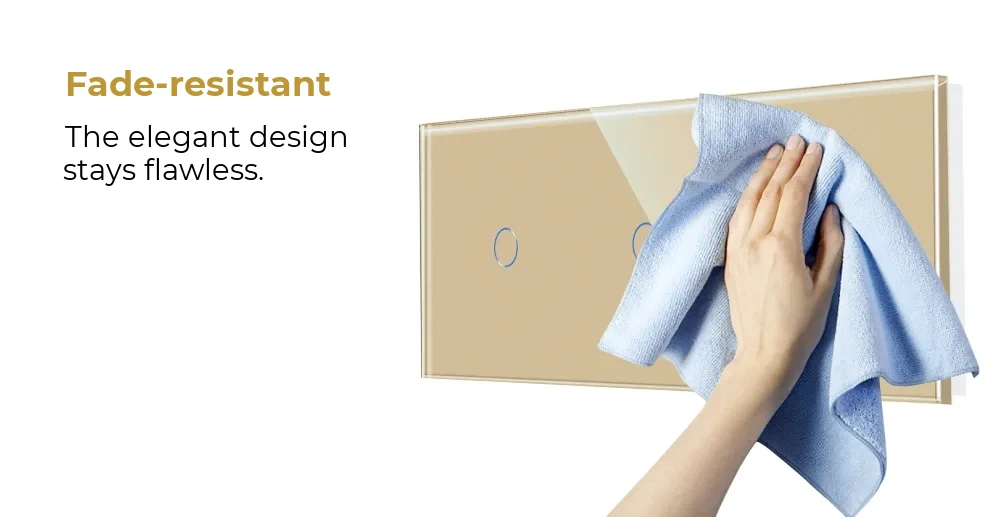

- Does not fade: the elegant design stays intact
03

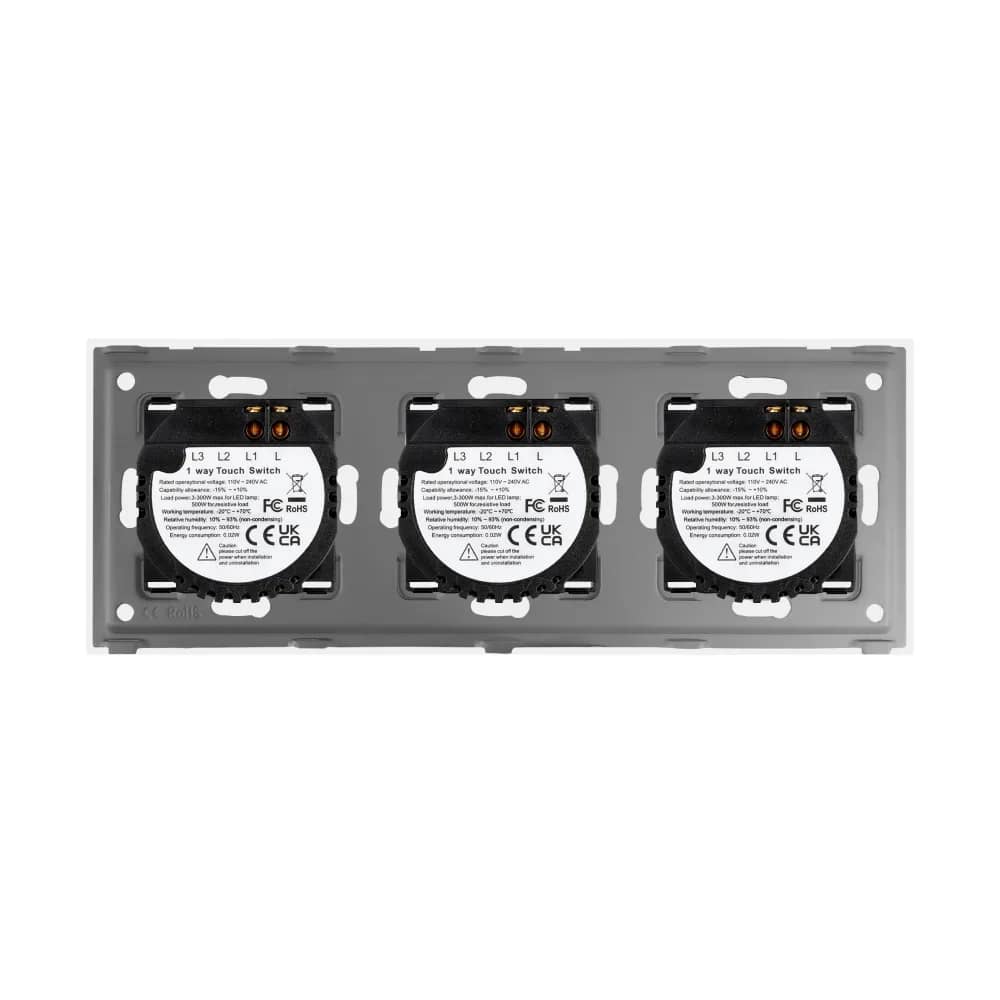

Structure
- Glass panel
- Switch modules
- Metal frame
- Screw fixing system
04
Dimensions
- Panel: 228 mm x 86 mm
- Distance between outer fixing points: 202 mm
- Screw fixing spacing: 60 mm
- Panel thickness: 9 mm
- Module depth: 26 mm
- Module height: 49 mm
05
Wiring Diagram
Each of the three 1 way touch switch modules connects to the live (L) line and switches its own light; each light is connected to neutral (N).
- Neutral (N)
- Live (L)
- Terminals: L, L1, L2, L3
06
Installation Steps
- 1. Open the package.
- 2. Connect the cables and tighten the screws.
- 3. Use the screws to fix the frame.
- 4. Fit the front panel (it clicks into place).
