Luxion

Luxion Glass Touch Doorbell Button with Momentary Return

SKU: LX-MT-B101G-W

AED 77

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion tempered-look glass touch doorbell button with momentary return, precise smartphone-like sensor and a compact, minimalist design.

Product details

The Luxion Glass Touch Doorbell Button with Momentary Return features a compact, elegant and minimalist design. Luxion products are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not fade over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Glass Touch Doorbell Button with Momentary Return – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

The LUXION glass touch doorbell button brings the versatility of modern smart products to your home with a clean, minimalist look.

Luxion Glass Touch Doorbell Button with Momentary Return – Fade-Resistant Finish
02

Fade-Resistant Finish

The glass panel does not discolour, so its elegant design stays intact over time.

Luxion Glass Touch Doorbell Button with Momentary Return – Structure
03

Structure

The doorbell button is made up of three main components.

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system with 60 mm spacing
Luxion Glass Touch Doorbell Button with Momentary Return – Dimensions
04

Dimensions

  • Front panel: 86 mm x 86 mm
  • Glass panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm
Luxion Glass Touch Doorbell Button with Momentary Return – Technical Data
05

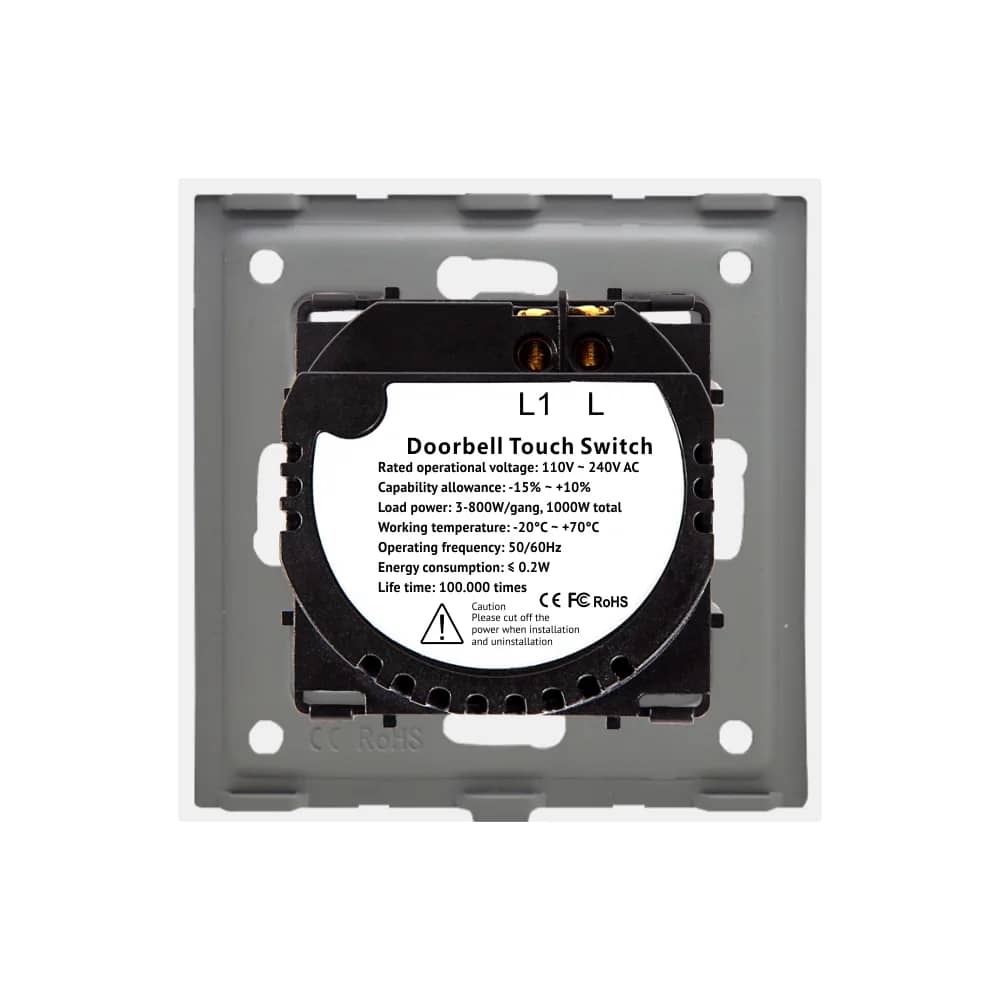

Technical Data

  • Rated operational voltage: 110V ~ 240V AC
  • Capability allowance: -15% ~ +10%
  • Load power: 3-800W/gang, 1000W total
  • Working temperature: -20°C ~ +70°C
  • Operating frequency: 50/60Hz
  • Energy consumption: ≤ 0.2W
  • Life time: 100,000 times
  • Markings: CE, FC, RoHS
Luxion Glass Touch Doorbell Button with Momentary Return – Wiring Diagram
06

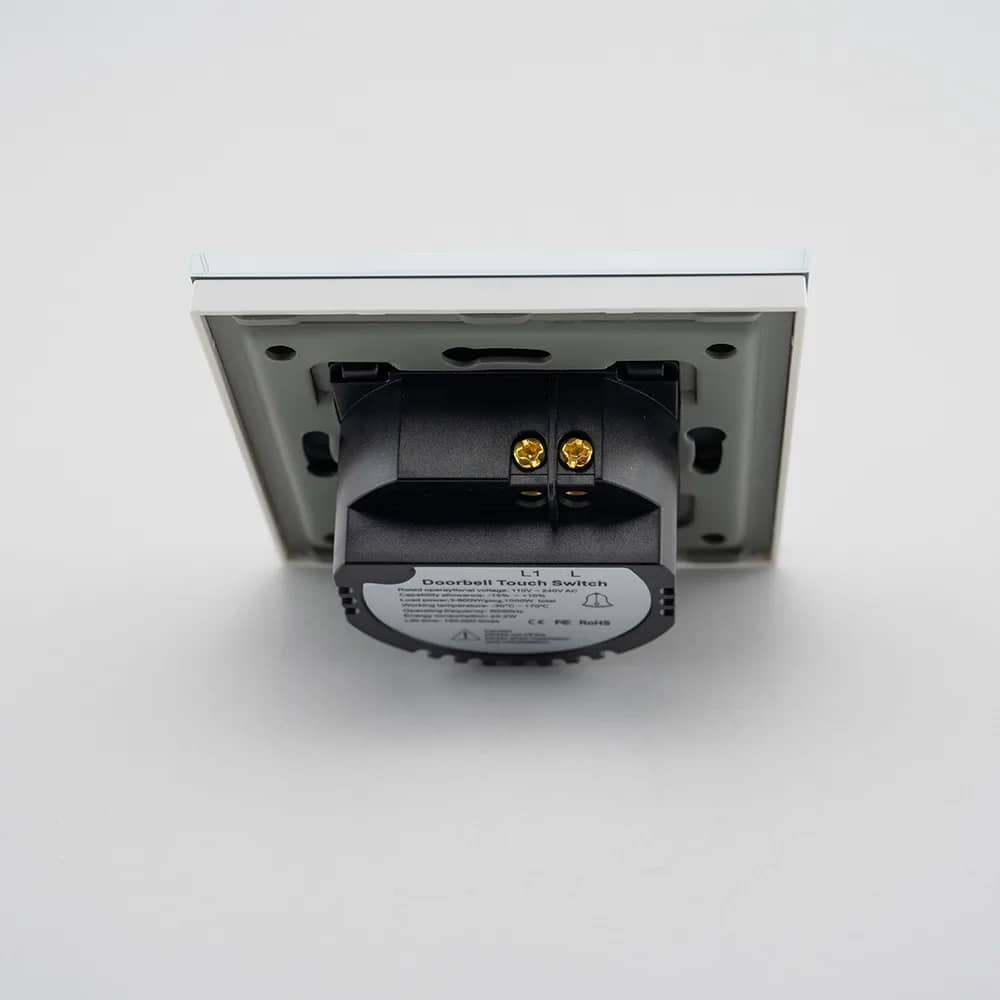

Wiring Diagram

Connect the live wire (L) directly to terminal L. The neutral wire (N) runs to the doorbell, which is then connected to terminal L1. Caution: switch off the power before installation and removal.

  • Live (L) to terminal L
  • Neutral (N) via the doorbell to terminal L1
Luxion Glass Touch Doorbell Button with Momentary Return – Installation Steps
07

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Click the front panel into place.

In detail

Luxion Glass Touch Doorbell Button with Momentary Return – detail 1
