Luxion Glass Touch Curtain Switch – White

1 / 4

Luxion

Luxion Glass Touch Curtain Switch

SKU: LX-MT-C201G-W

AED 104

In stock

Colour: White

Delivery across all seven emirates. Free on orders over AED 750.
Order now, we confirm availability and delivery with you before you pay.

Compact, elegant Luxion touch switch for curtains with a tempered glass panel, available in White, Gold, Grey and Black.

Product details

The Luxion curtain switch stands out for its compact, elegant and minimalist design. Luxion products are practical, made from quality materials and built to last, bringing convenience and comfort to your home.

Highlights

Compact, Elegant and Minimalist Design

The Luxion Glass Touch Curtain Switch brings a compact, elegant and minimalist look to your walls. Enjoy the versatility of the new Luxion products.

Touch-controlled curtain switch with glass panel
Three touch buttons: open, stop and close

Structure

The switch consists of three main parts.

Elegant glass panel
Switch module
Metal frame
Screw mounting system with 60 mm fixing distance

Dimensions

Panel: 86 mm x 86 mm
Panel thickness: 9 mm
Module depth: 26 mm
Module height: 49 mm

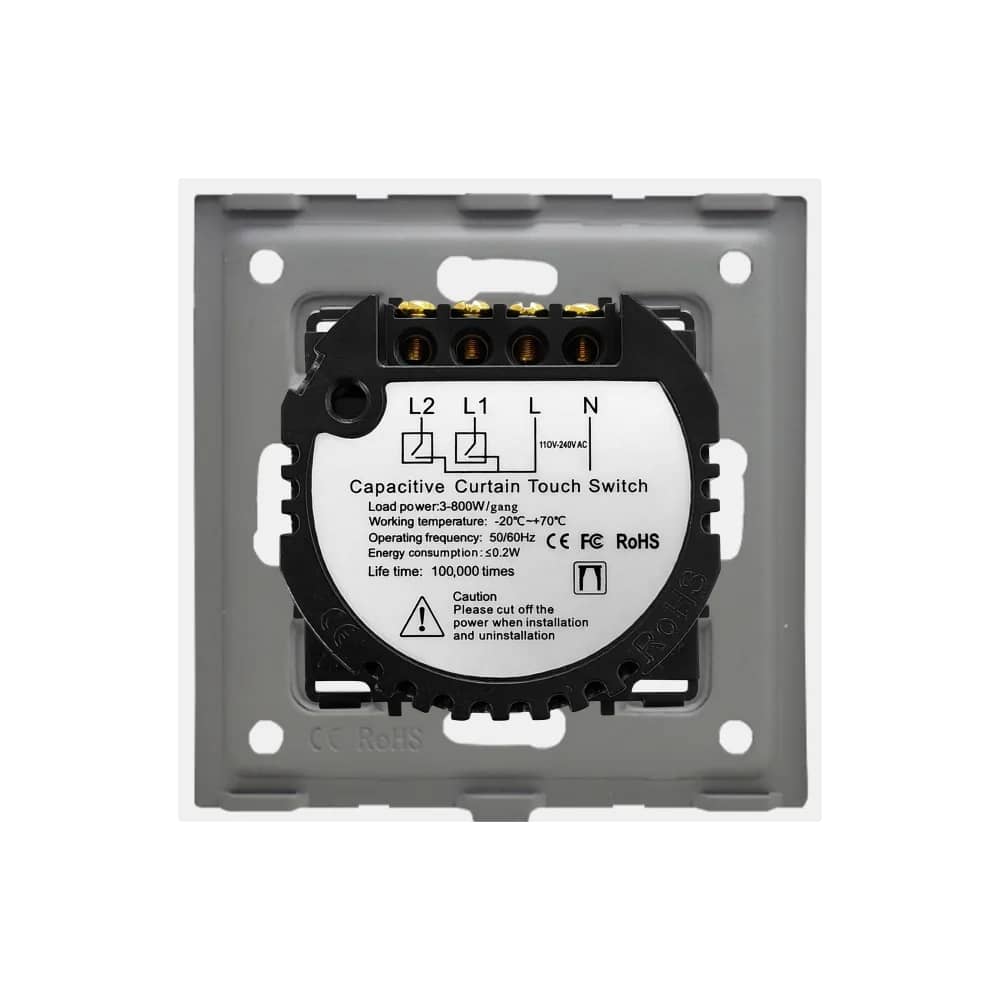

Wiring Diagram

The switch connects to Neutral (N) and Live (L), with outputs L1 and L2 wired to the curtain motor.

N: Neutral
L: Live
L1 / L2: Motor outputs

Technical Data

Type: Capacitive Curtain Touch Switch
Load power: 3-800W/gang
Working temperature: -20°C to +70°C
Operating frequency: 50/60Hz
Energy consumption: ≤0.2W
Life time: 100,000 times
Markings: CE, FCC, RoHS

Installation Steps

Caution: cut off the power before installation and uninstallation.

1. Open the package.
2. Connect the wires and tighten the screws.
3. Use the 2 screws to fix the frame.
4. Fit the front panel (it clicks into place).
