Luxion

Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433

SKU: LX-MT-R202G-W

AED 130

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion 2 gang 2-way (staircase) glass touch light switch with RF433, controllable via the Luxion RF remote control (sold separately).

Product details

Luxion 2 gang 2-way (staircase) glass touch light switch, RF433. It can be controlled using the Luxion RF remote control. Please note: the remote control must be purchased separately!

The Luxion light switch brand stands out for its compact, elegant and minimalist design. The switches are versatile, and the touch sensor is highly precise, just like that of a smartphone. The structure is durable and the switches do not discolour over time. It is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

It is compatible with the Luxion RF remote control.

A maximum of 3 switches can be connected in the circuit (intermediate/cross switching)

Highlights

Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new smart switches. The Luxion double two-way/intermediate touch switch with RF433 combines a sleek glass touch panel with a compact, minimalist look.

  • Double (2 gang) two-way/intermediate touch switch
  • RF433 compatible
  • Available in white, black, gold and grey
Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – Important Compatibility Notice
02

Important Compatibility Notice

Two-way switches only work when installed and synchronised with other Luxion two-way products. Luxion products do NOT work with other brands.

Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – Touch Sensor
03

Touch Sensor

The touch sensor is extremely precise, identical to the sensor of a smartphone.

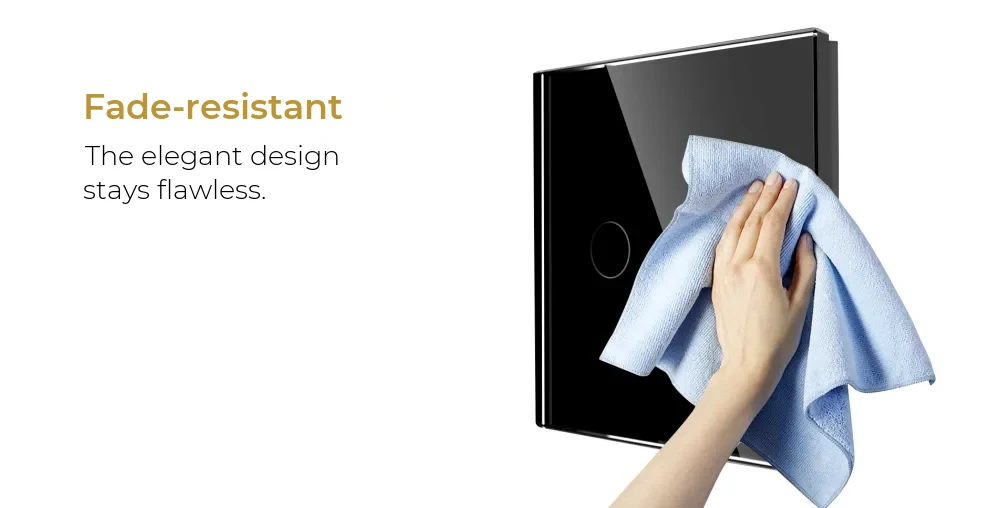

Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – Does Not Discolour
04

Does Not Discolour

The elegant design stays intact.

Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – RF Remote Control
05

RF Remote Control

With an RF remote control you can switch Luxion switches on or off.

  • Please note: the image is for illustration only – the RF remote control is NOT included and must be purchased separately
Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – Structure
06

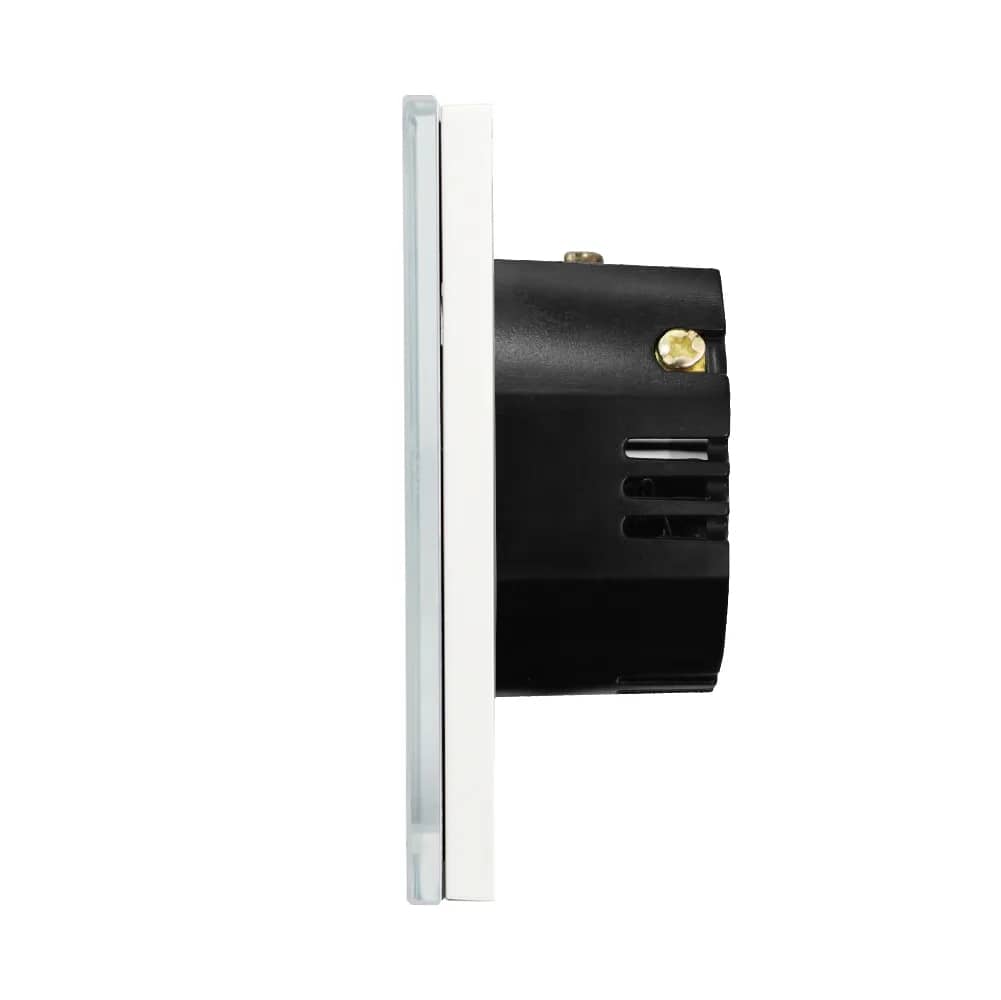

Structure

  • Elegant glass panel
  • Switch module
  • Metal frame
  • Screw fixing system
07

Technical Data

  • Front panel: 86 mm x 86 mm
  • Screw fixing spacing: 60 mm
  • Panel thickness: 9 mm
  • Module depth: 26 mm
  • Module height: 49 mm

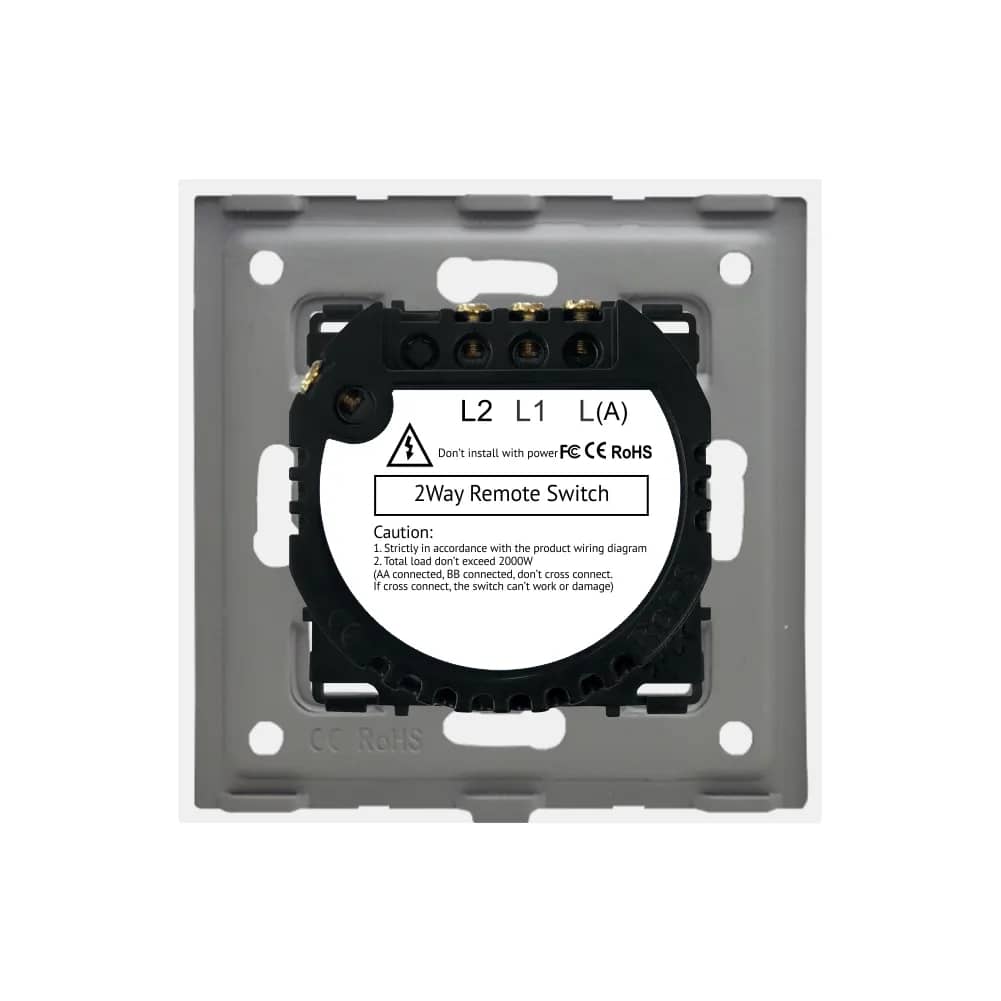

  • Terminals: L2, L1, L(A)
08

Wiring Diagram

Connect the live (L) and neutral (N) wires as shown in the diagram, with the two-way/intermediate link between the two switches.

  • Live (L)
  • Neutral (N)
  • Two-way – intermediate connection between switches
09

Installation Steps

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the 2 screws to fix the frame.
  • 4. Fit the front panel (click into place).

In detail

Luxion Glass Touch 2-Way Light Switch – 2 Gang, RF433 – detail 1
