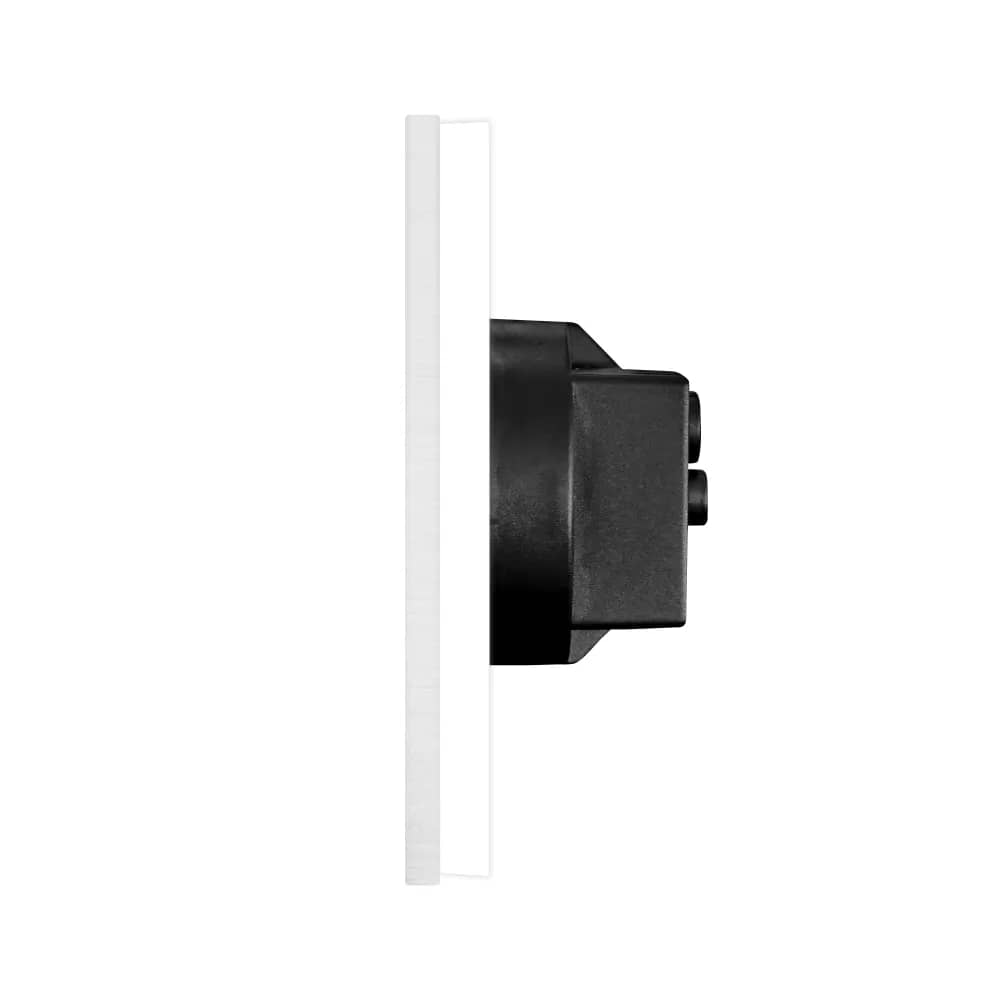

Luxion Double Wall Socket with Aluminium Frame – White — image 3

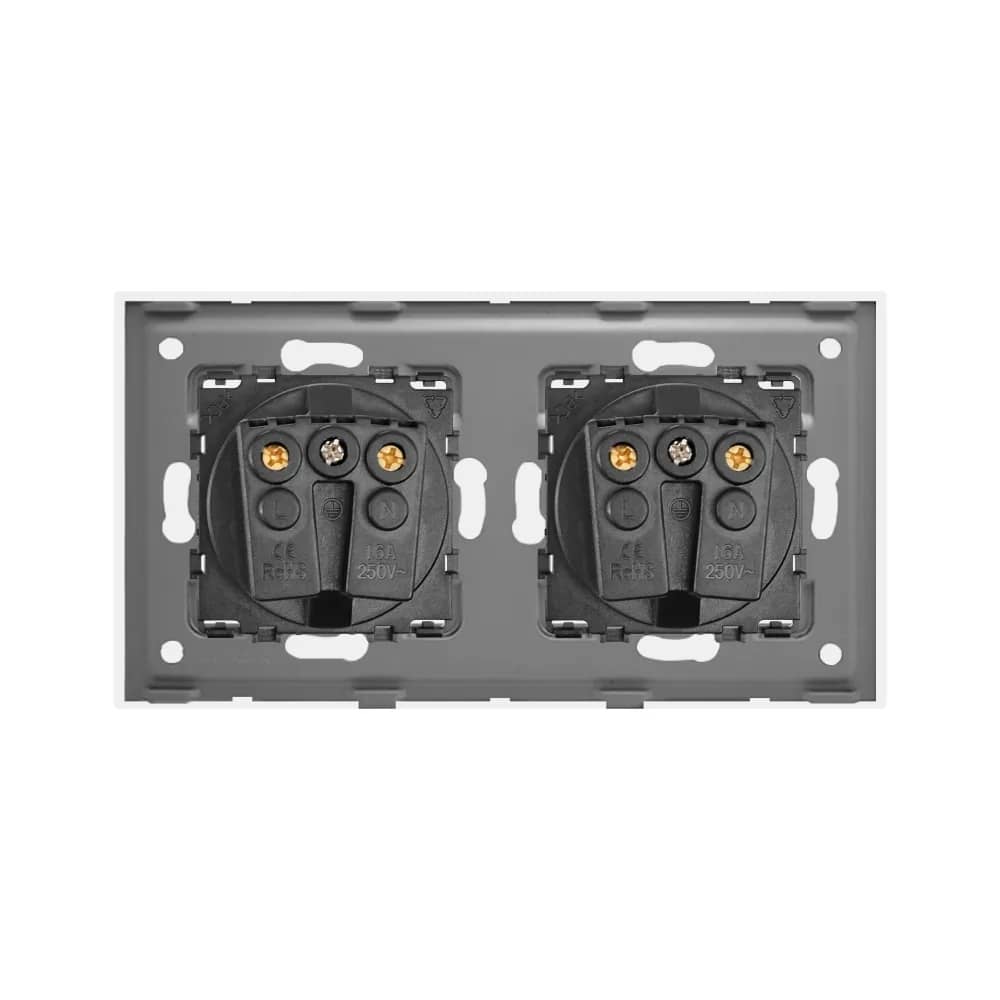

Luxion Double Wall Socket with Aluminium Frame – White — image 4
1/4
Luxion

Luxion Double Wall Socket with Aluminium Frame

SKU: LX-2MP010A-W

AED 61

In stock

Colour: White
1
  • Delivery across all seven emirates. Free on orders over AED 750.
  • Order now, we confirm availability and delivery with you before you pay.

Luxion double wall socket with an aluminium frame – compact, minimalist design with child protection, in White, Gold, Grey or Black.

Product details

The Luxion socket range stands out for its compact, elegant and minimalist design. The sockets are versatile and feature child protection. The structure is durable and the products do not fade over time. This is a practical product, made from quality materials and built to last, bringing functionality and comfort to your home.

Highlights

Luxion Double Wall Socket with Aluminium Frame – Compact, Elegant and Minimalist Design
01

Compact, Elegant and Minimalist Design

Enjoy the versatility of the new Luxion sockets. This double socket comes with an aluminium frame for a clean, modern look.

  • Double socket
  • Aluminium frame
  • LUXION design
Luxion Double Wall Socket with Aluminium Frame – Structure
02

Structure

The socket is made up of three main parts.

  • Aluminium frame
  • Socket module
  • Metal frame
  • Screw fixing system: 60 mm
Luxion Double Wall Socket with Aluminium Frame – Dimensions
03

Dimensions

  • Width: 157 mm
  • Height: 86 mm
  • Frame thickness: 9 mm
  • Depth: 30 mm
  • Module height: 47 mm
Luxion Double Wall Socket with Aluminium Frame – Wiring Diagram
04

Wiring Diagram

Connect each socket module to the three supply wires as shown in the wiring diagram.

  • Live (L)
  • Neutral (N)
  • Earth
Luxion Double Wall Socket with Aluminium Frame – Installation
05

Installation

  • 1. Open the package.
  • 2. Connect the wires and tighten the screws.
  • 3. Use the screws to secure the frame.
  • 4. Fit the front panel (click into place).
